What is High Speed ABS+ Filament?

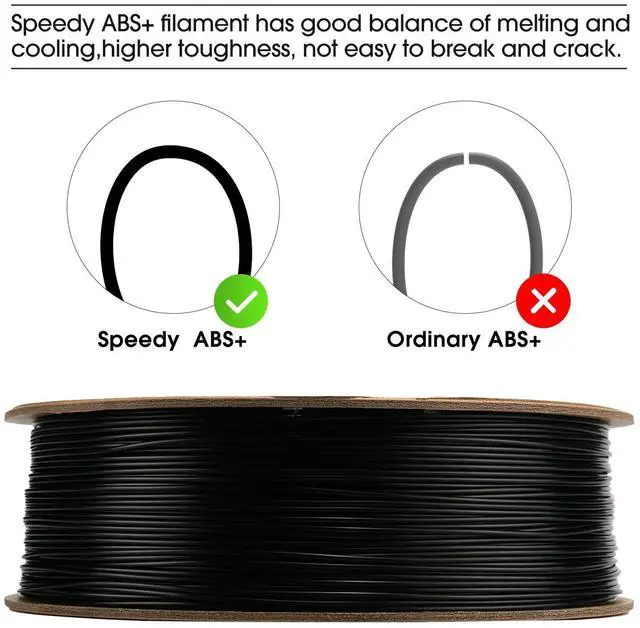

Based on regular ABS, cracking and warping has been significantly improved when printing large-size items. It has high strength, better toughness, excellent impact strength, wear resistance, heat resistance and creep resistance.

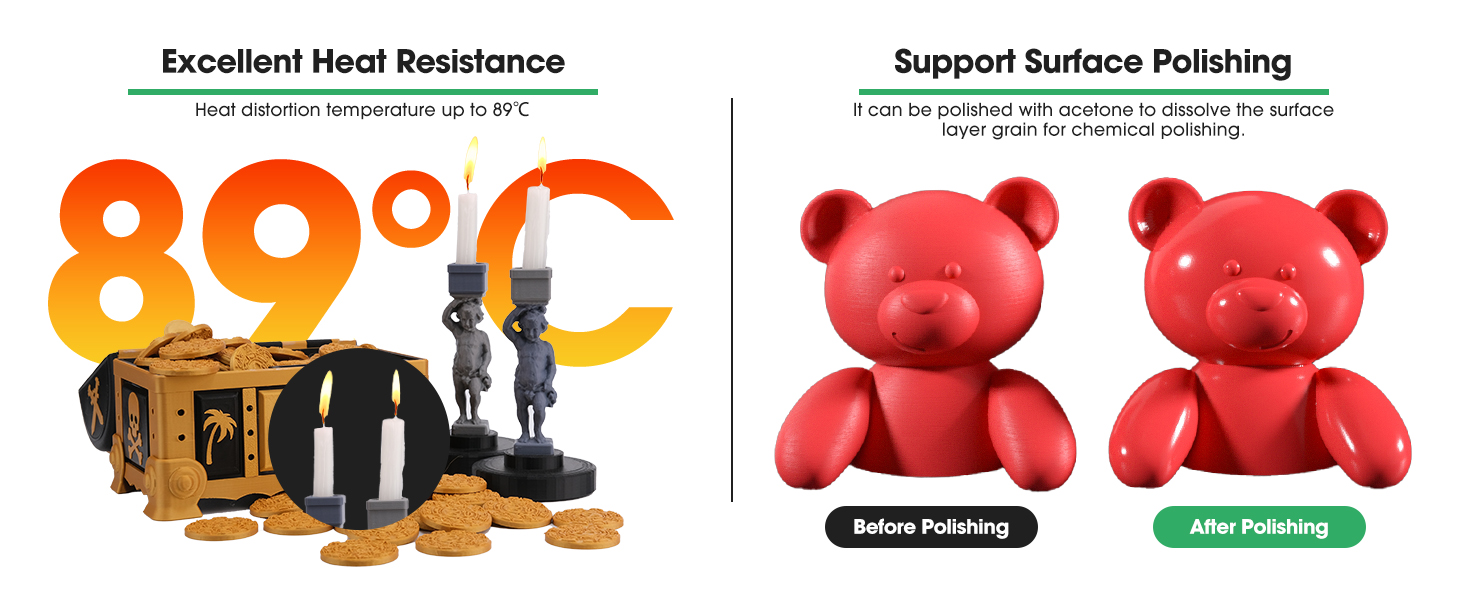

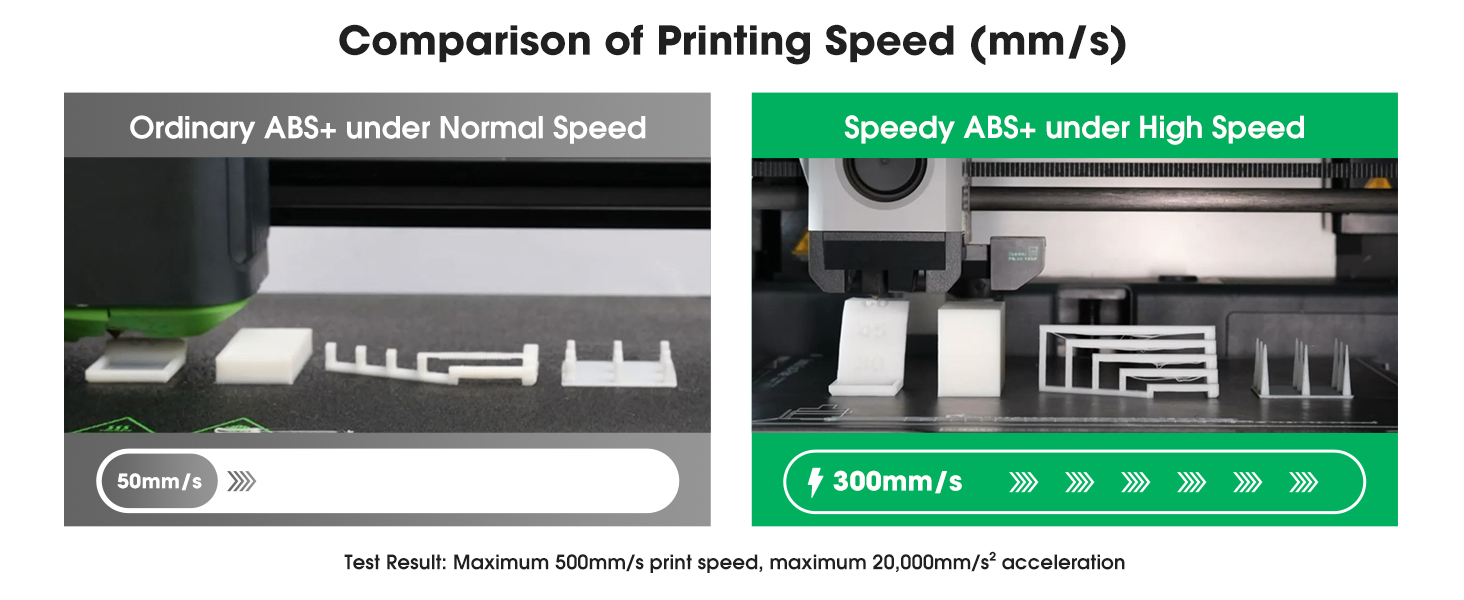

Designed for High Speed Printing. Acetone polishing is available, which can keep smooth surface of printed models.
Specification of High Speed ABS+ :
Diameter and Weight:1.75mm 1KG

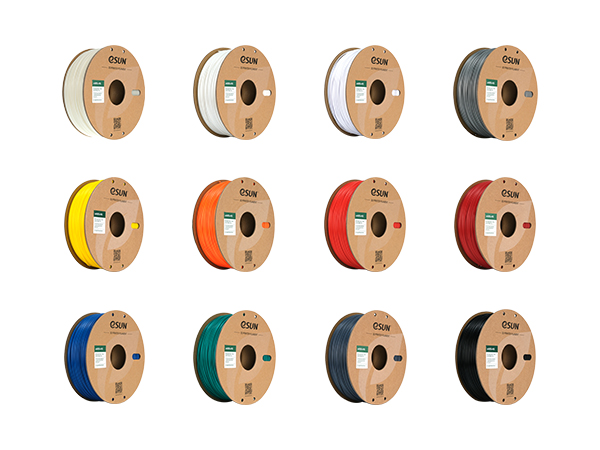

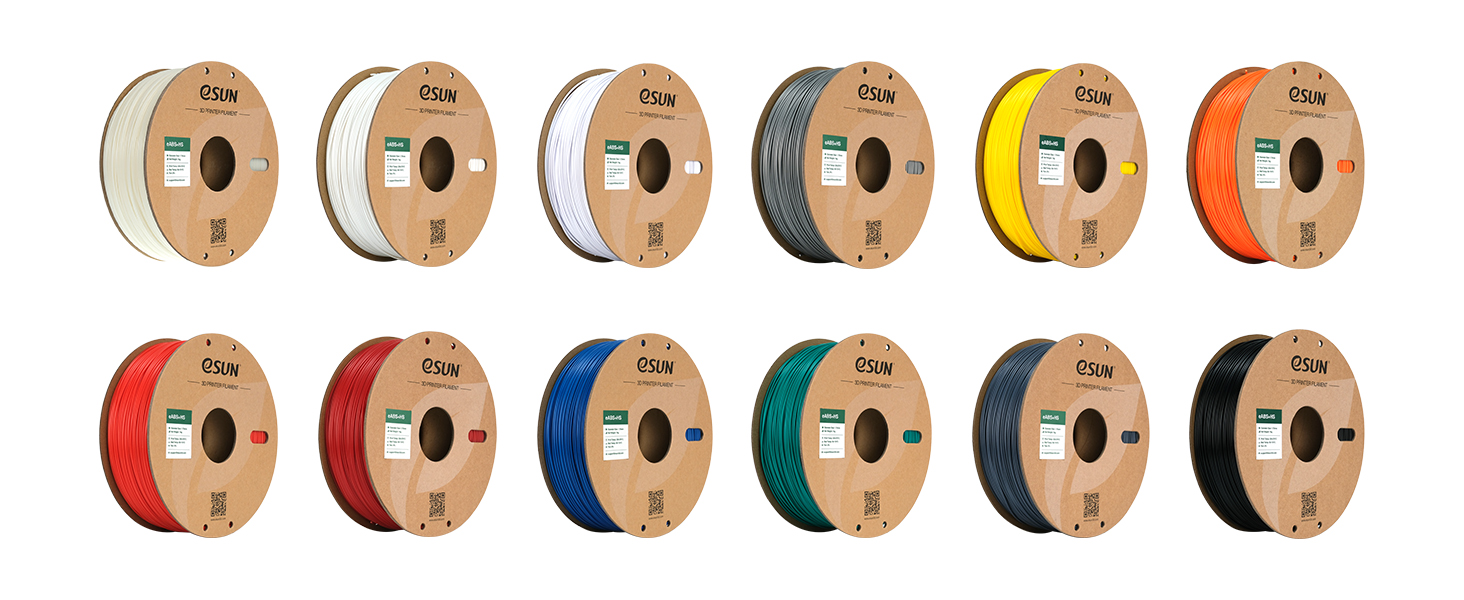

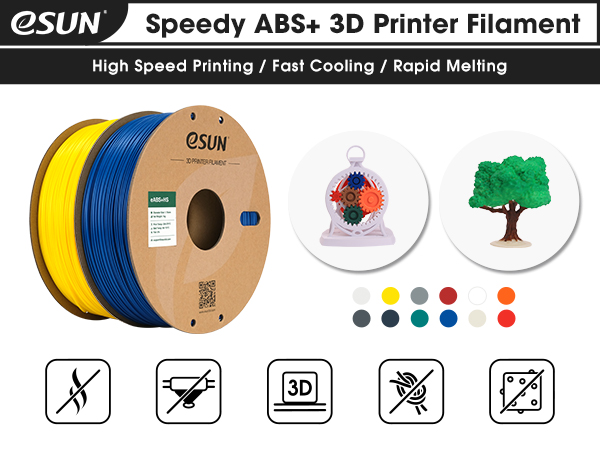

Available Color:Natural, Black, Cold White, Fire Engine Red, Green, Grey, Orange, Red, Silver, Blue, White, Yellow
Recommended Heated Build Platform:High Temperature Tape, PVP Solid Glue
How to Storage:
1. If you are going to leave your printer inactive for more than a couple of days, please retract the filament to protect your printer nozzle.
2. In order to extend the life of your filament, please place the unsealing filament back to original vacuum bag and stock it in a cool and dry place after print.
3. When storing your filament, please feed the loose end through the holes on the edge of the filament reel to avoid winding, so that it feeds properly when you use it next time.
Please Notice:
1. The picture shown is a representation of the item, color may vary slightly due to the color setting of each individual monitor. Please double check the size and color before purchasing.
2. Warning:This Filament (when used in the operation of 3D Printers or 3D Pens ) can expose you and others in the same room to styrene, a chemical known to the State of California to cause cancer. www.P65Warnings.ca.gov.
3. High speed ABS+ have a relatively high shrinkage rate, so heat preservation should still be taken into account when printing. Printing in a enclosed condition will be more effective.
4. The cooling of high speed ABS+ is slightly poor. When printing, low fan speed can improve the printing effect or you can reduce the hanging angle structure of the STL file. Or you can try to decrease the printing speed to improve this problem.

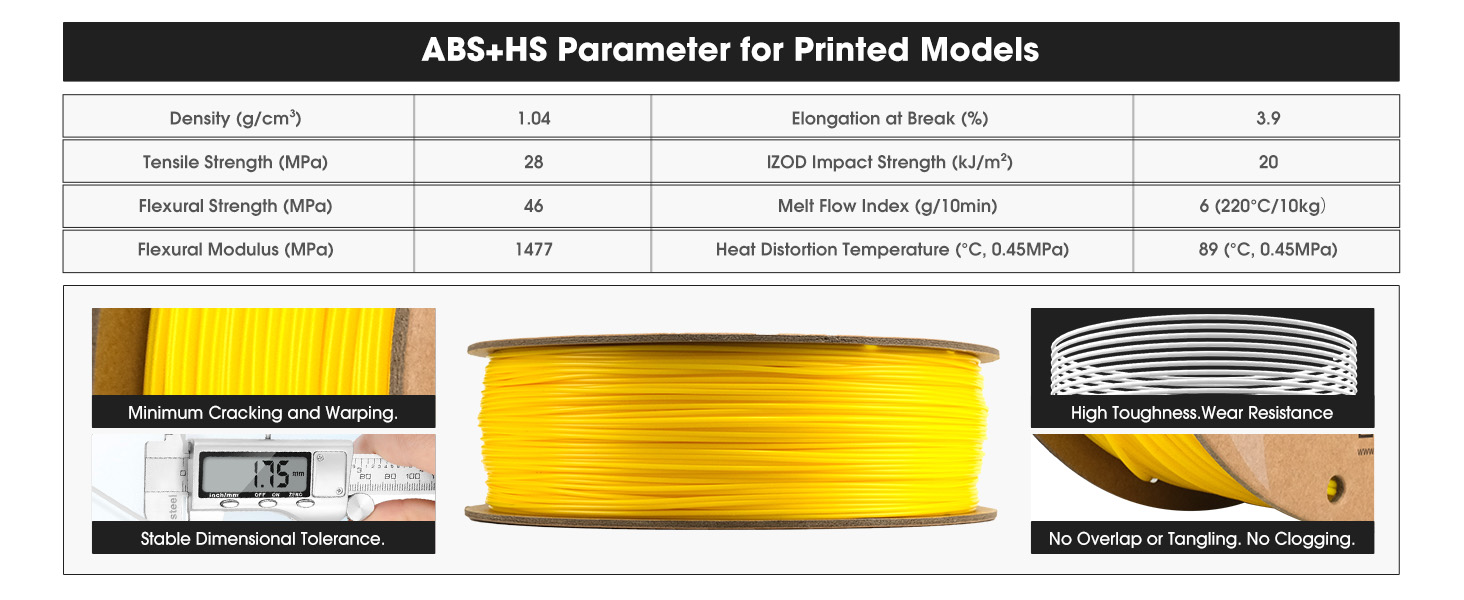

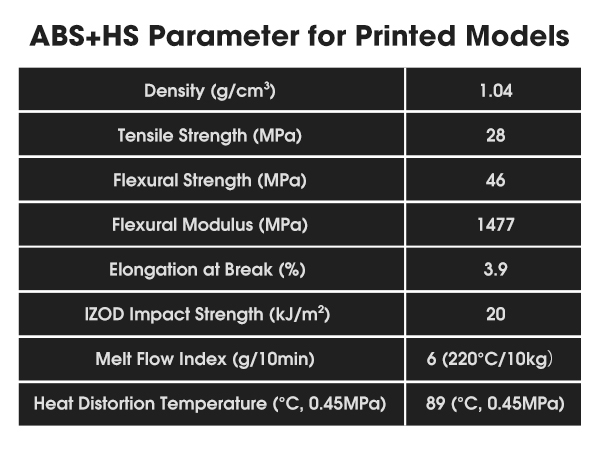

Comparison of Physical Parameter of eSUN High Speed Filament Printed Models
 eABS+HS High Speed ABS+ |  ePETG+HS High Speed PETG |  ePLA+HS High Speed PLA+ |  ePLA-HS High Speed PLA | |
|---|---|---|---|---|
Customer Reviews | — | — | — | — |
Price | — | — | — | — |
Density(g/cm3) | 1.04 | 1.26 | 1.24 | 1.24 |
Heat Distortion Temp(0.45MPa) | 89 | 68 | 54 | 53 |
Melt Flow Index(g/10min) | 6(220?/10kg) | 24(250?/2.16kg) | 5.2(190?/2.16kg) | 5.2(190?/2.16kg) |
Tensile Strength(MPa) | 28 | 29.2 | 32 | 30.46 |
Elongation at Break(%) | 3.9 | 4.2 | 2.8 | 2.43 |
Flexural Strength(MPa) | 46 | 63 | 83 | 85.29 |
Flexural Modulus(MPa) | 1477 | 1708.7 | 2900 | 2962.32 |
IZOD Impact Strength(kJ/?) | 20 | 5.86 | 5.6 | 4.77 |
Printing Temperature | 230 - 270? (Recommend 240?) | 220 - 260? (Recommend 240?) | 210 - 230? (Recommend 215?) | 210 - 230? (Recommend 215?) |
Bed Temperature | 100 - 110°C | 75 - 90°C | 45 - 60°C | 45 - 60°C |
Fan Speed | 0% | 100% | 100% | 100% |

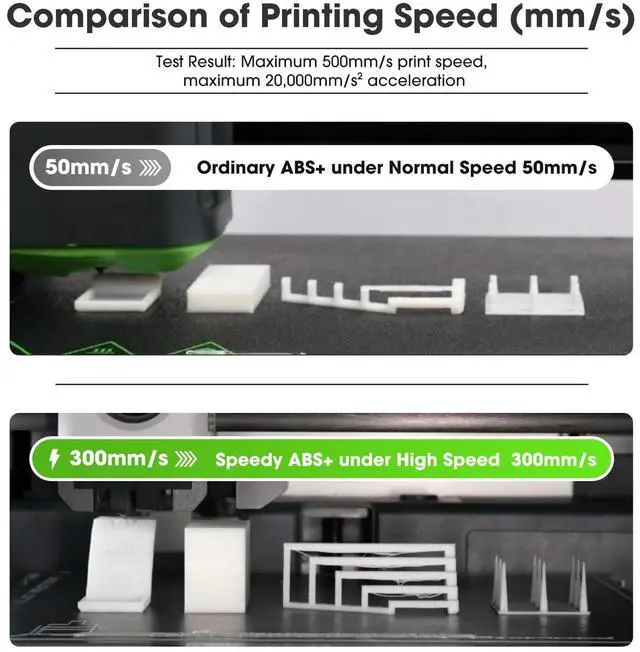

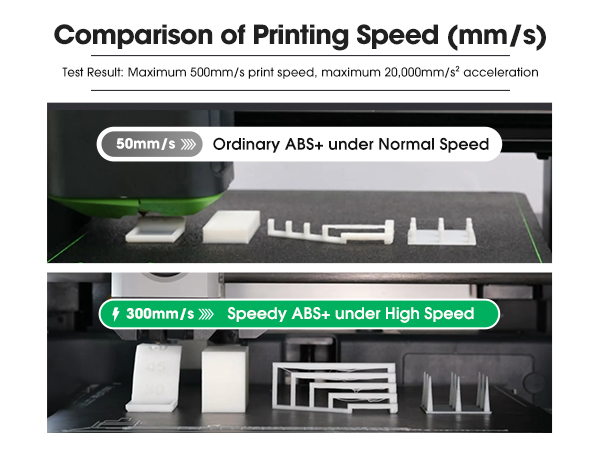

Printing Speed | 50 - 300mm/s | 40 - 300mm/s | 50 - 300mm/s | 50 - 350mm/s |
ABOUT US
Founded in 2002, eSUN is one of the global professional 3D printing material & 3D printing supply manufacturers.
In R&D, eSUN has more than ten international and domestic patented technologies, and is the drafting unit of the national standard for PLA 3D printing filaments.
After years of market development, eSUN has more than 50 agents and distributors around the world, and its products are sold to more than 100 countries and regions.
Outstanding Brand Development Award for Brand "eSUN" from .
eSUN 3D Printer Filament

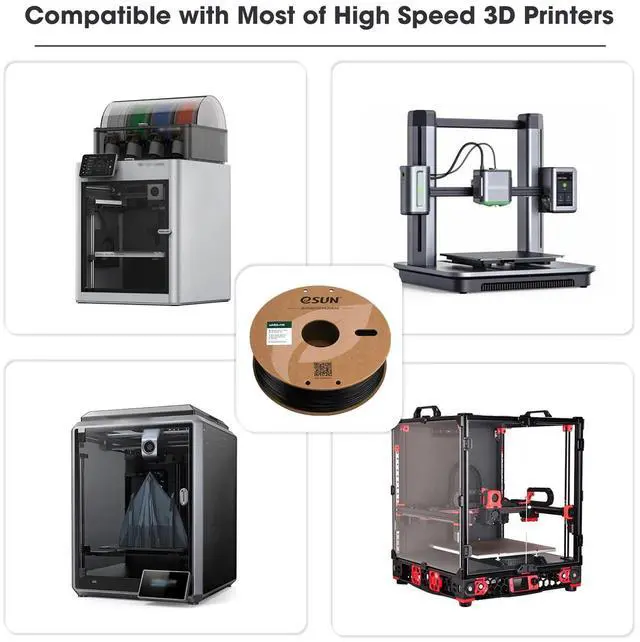

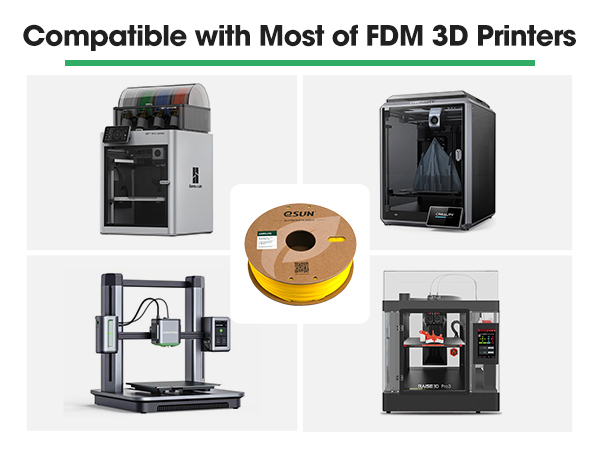

Compatible with most FDM 3D printers.
PLA Series
High Speed Series
Silk PLA Series
ABS+ & PETG Filament
eBOX-Lite & Vaccum Family
Hard Tough Resin

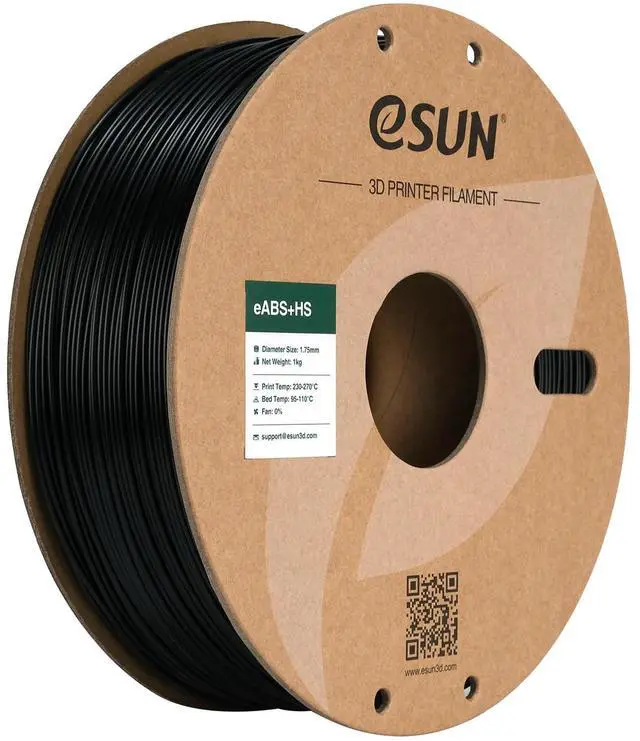

eSUN High Speed ABS+ Filament 1.75mm 3D Printer Filament, 1KG Spool (2.2 LBS)
What is High Speed ABS+ Filament?
Based on regular ABS, cracking and warping has been significantly improved when printing large-size items. It has high strength, better toughness, excellent impact strength, wear resistance, heat resistance and creep resistance.
Designed for High Speed Printing. Acetone polishing is available, which can keep smooth surface of printed models.
Specification of High Speed ABS+ :
Diameter and Weight:1.75mm 1KG
Available Color:Natural, Black, Cold White, Fire Engine Red, Green, Grey, Orange, Red, Silver, Blue, White, Yellow
Recommended Heated Build Platform:High Temperature Tape, PVP Solid Glue
How to Storage:
1. If you are going to leave your printer inactive for more than a couple of days, please retract the filament to protect your printer nozzle.
2. In order to extend the life of your filament, please place the unsealing filament back to original vacuum bag and stock it in a cool and dry place after print.
3. When storing your filament, please feed the loose end through the holes on the edge of the filament reel to avoid winding, so that it feeds properly when you use it next time.
Please Notice:
1. The picture shown is a representation of the item, color may vary slightly due to the color setting of each individual monitor. Please double check the size and color before purchasing.
2. Warning:This Filament (when used in the operation of 3D Printers or 3D Pens ) can expose you and others in the same room to styrene, a chemical known to the State of California to cause cancer. www.P65Warnings.ca.gov.
3. High speed ABS+ have a relatively high shrinkage rate, so heat preservation should still be taken into account when printing. Printing in a enclosed condition will be more effective.
4. The cooling of high speed ABS+ is slightly poor. When printing, low fan speed can improve the printing effect or you can reduce the hanging angle structure of the STL file. Or you can try to decrease the printing speed to improve this problem.
Comparison of Physical Parameter of eSUN High Speed Filament Printed Models
eABS+HS High Speed ABS+ | ePETG+HS High Speed PETG | ePLA+HS High Speed PLA+ | ePLA-HS High Speed PLA |
|---|---|---|---|
| Customer Reviews | |||
| — | — | — | — |
| Price | |||
| — | — | — | — |
| Density(g/cm3) | |||
| 1.04 | 1.26 | 1.24 | 1.24 |
| Heat Distortion Temp(0.45MPa) | |||
| 89 | 68 | 54 | 53 |
| Melt Flow Index(g/10min) | |||
| 6(220?/10kg) | 24(250?/2.16kg) | 5.2(190?/2.16kg) | 5.2(190?/2.16kg) |
| Tensile Strength(MPa) | |||
| 28 | 29.2 | 32 | 30.46 |
| Elongation at Break(%) | |||
| 3.9 | 4.2 | 2.8 | 2.43 |
| Flexural Strength(MPa) | |||
| 46 | 63 | 83 | 85.29 |
| Flexural Modulus(MPa) | |||
| 1477 | 1708.7 | 2900 | 2962.32 |
| IZOD Impact Strength(kJ/?) | |||
| 20 | 5.86 | 5.6 | 4.77 |
| Printing Temperature | |||
| 230 - 270? (Recommend 240?) | 220 - 260? (Recommend 240?) | 210 - 230? (Recommend 215?) | 210 - 230? (Recommend 215?) |
| Bed Temperature | |||
| 100 - 110°C | 75 - 90°C | 45 - 60°C | 45 - 60°C |
| Fan Speed | |||
| 0% | 100% | 100% | 100% |
| Printing Speed | |||
| 50 - 300mm/s | 40 - 300mm/s | 50 - 300mm/s | 50 - 350mm/s |
