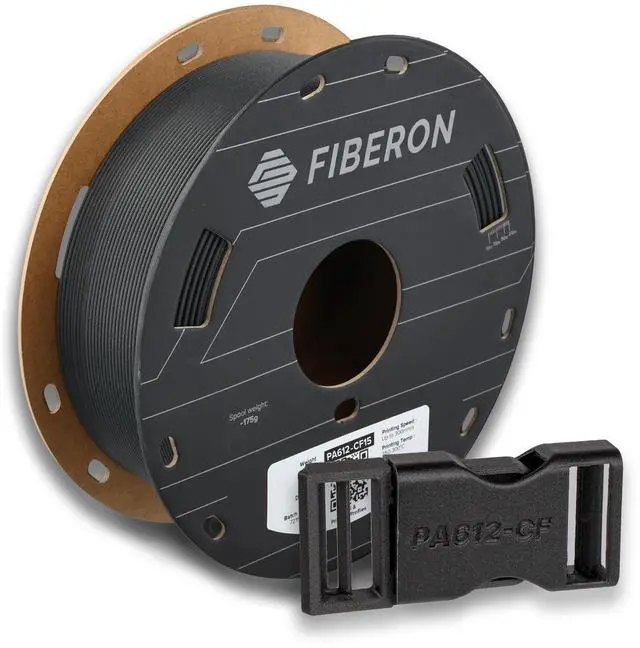

Fiberon PA612-CF15 Carbon Fiber Nylon Filament 1.75mm Black 0.5kg, Fiberon PA612-CF15 Strong & Low Moisture Sensitive Nylon 1.75mm 3D Printing Filament

Fiberon by Polymaker: A new product line dedicated to democratizing high-performance composite materials. This cost-effective 3D printing filament is optimized for high-speed printing and offers excellent printability and compatibility with most mainstream and entry-level printers, enabling the production of high-performance parts.

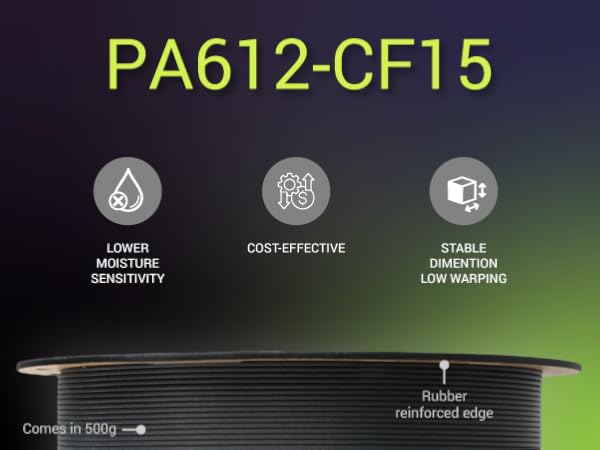

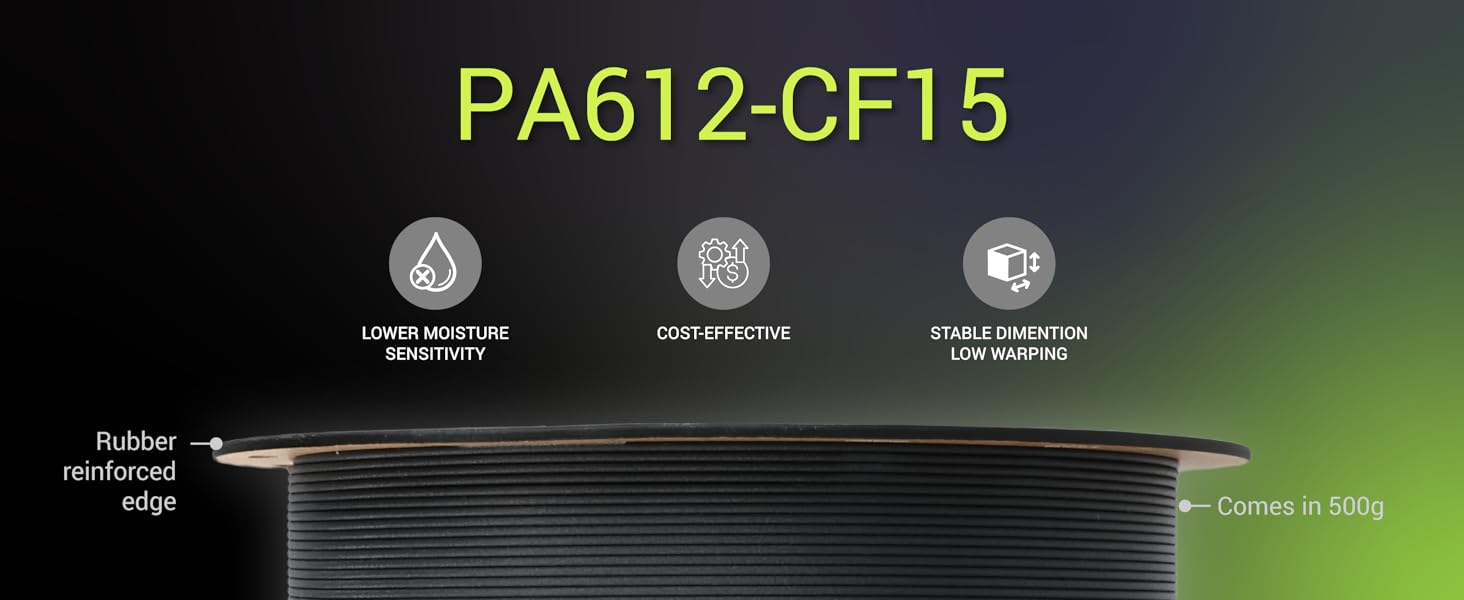

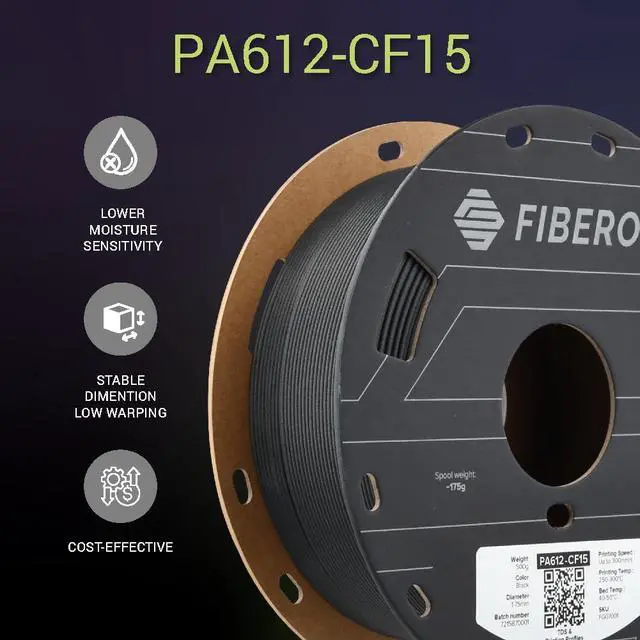

Strong & Low Moisture Sensitive: Polymaker Fiberon PA612-CF15 is a carbon fiber-reinforced nylon 3D printing filament. It has lower moisture sensitivity than PA6/66 and PA6 materials, while offering superior mechanical properties compared to PA12. This filament ensures excellent printability, with good first layer adhesion and no jamming, warping, or distortion.
Wide Application: The 1.75mm Fiberon PA612-CF15 nylon filament offers excellent mechanical and thermal properties, along with impressive dimensional stability. It is suitable for industrial tooling, automotive applications, and end-use parts. With a broad printing temperature range, this filament is compatible with most consumer printers.
Tangle-Free & Resealable Bag: The 1.75mm Fiberon PA612-CF15 nylon filament is carefully wound to prevent tangling and vacuum-sealed in a resealable ziplock bag with a desiccant. After use, guide the filament through the fixed hole to avoid tangles.

https://m.media-amazon.com/images/S/aplus-media-library-service-media/8eea2288-b39c-4f48-876c-4ddf3a67f915.__CR0,0,4393,1800_PT0_SX1464_V1___.png

Fiberon PA612-CF15

3D printing filament

HDT(°C) @0.45 MPa: 175

Bending modulus (dry-MPa): 4583

Bending modulus (wet-MPa): 3888

Material characteristics

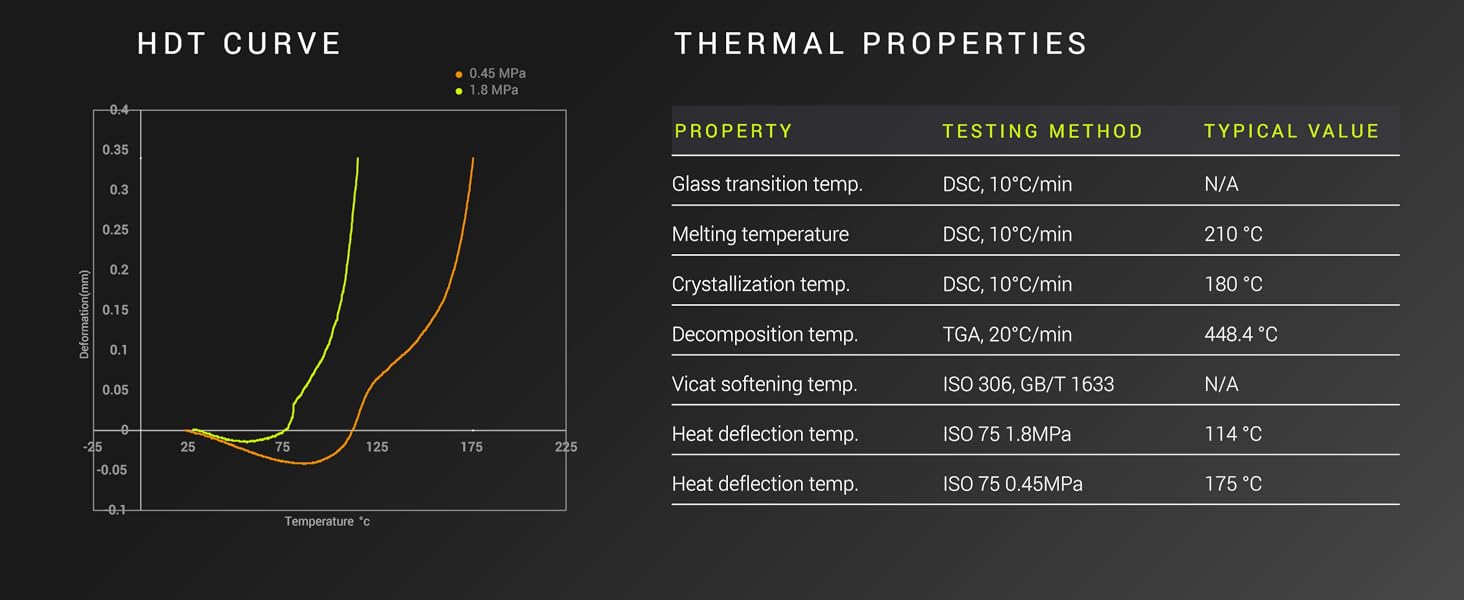

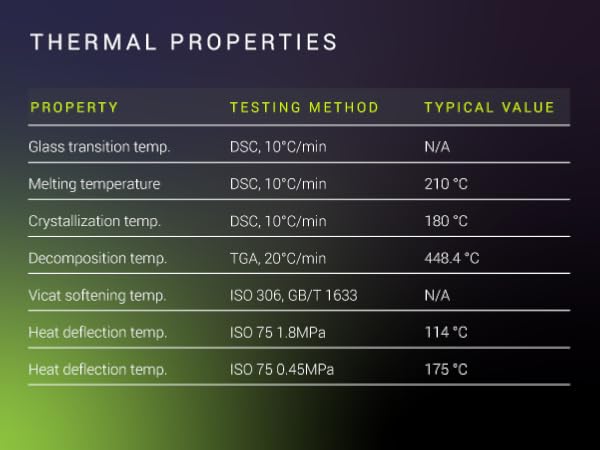

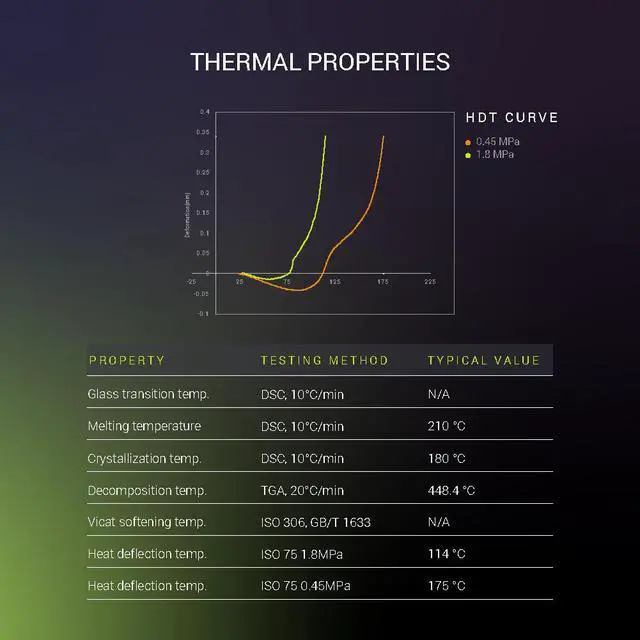

Fiberon PA612-CF15 properties

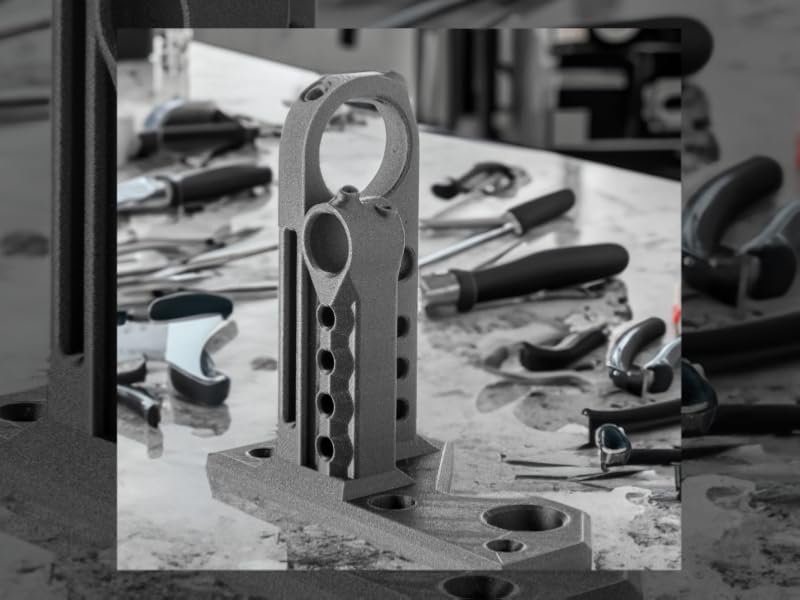

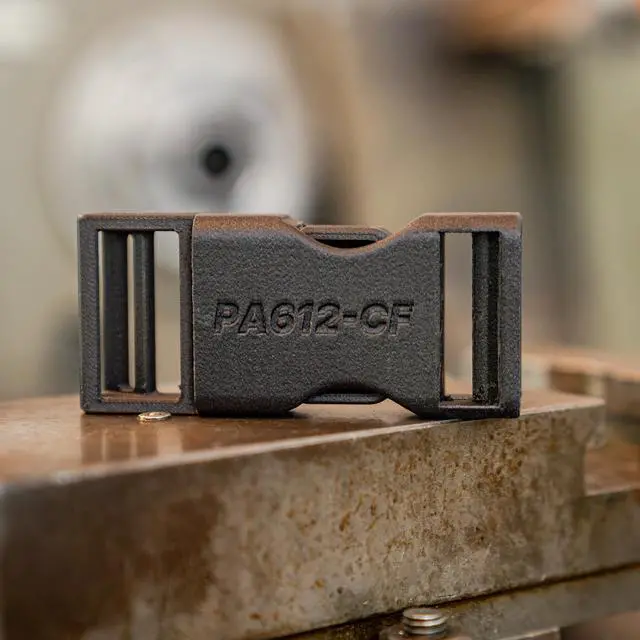

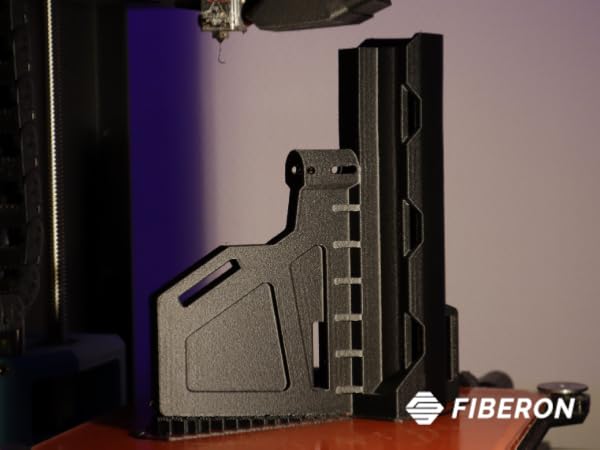

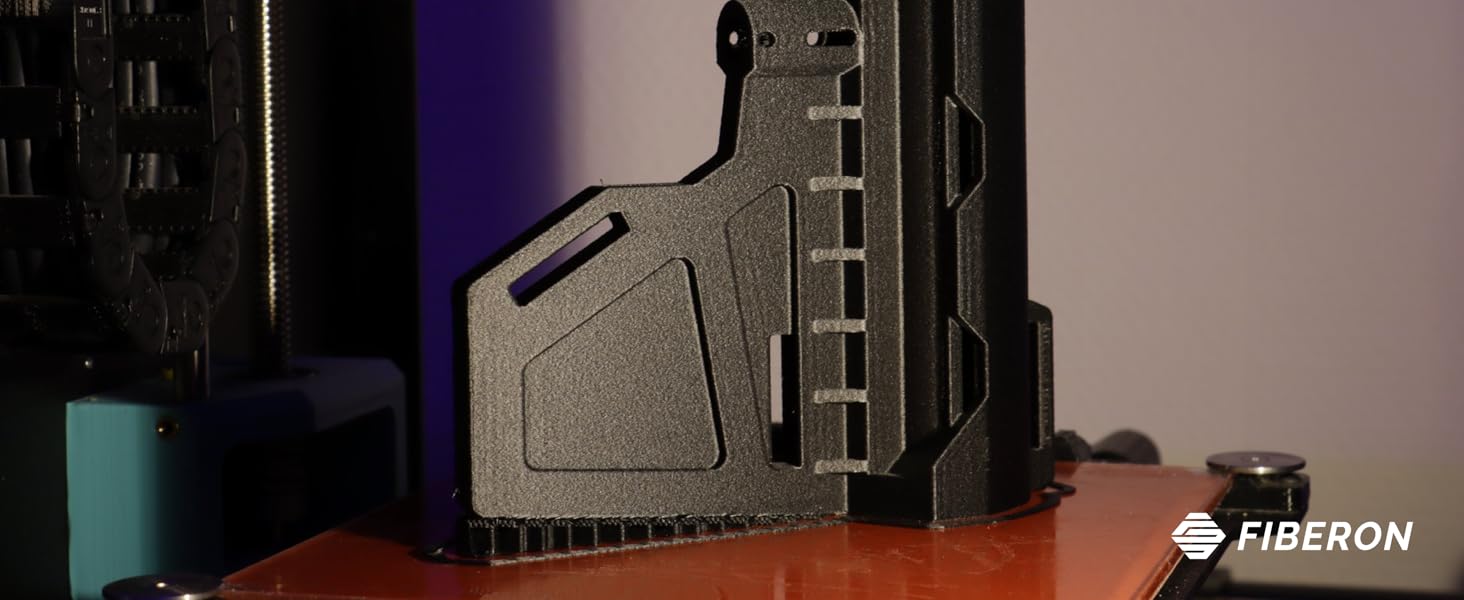

Print in Fiberon PA612-CF15

Comparison chart for Fiberon materials

Fiberon Material Comparison

	Fiberon PA612-CF15	Fiberon PA6-CF20	Fiberon PA12-CF10	Fiberon PA6-GF25	Fiberon PA612-ESD	Fiberon PETG-ESD	Fiberon PETG-RCF08
Customer Reviews	—	—	—	—	—	—	—
Price	—	—	—	—	—	—	—
Nozzle Temperature	250-300°C	280-300°C	260-300°C	280-300°C	280-300°C	250-290°C	240-270°C
Bed Temperature	40-50°C	40-50°C	40-50°C	40-50°C	40-50°C	70-80°C	60-70°C
Printing Speed	Up to 300mm/s	Up to 300mm/s	Up to 300mm/s	Up To 300mm/s	Up To 300mm/s	Up To 500mm/s	Up To 300mm/s
Chamber Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature
Flame Retardancy	HB	HB	HB	HB	HB	HB	HB
Heat Deflection Temperature	175°C (0.45MPa)	215°C (0.45MPa)	131°C (0.45MPa)	191°C (0.45MPa)	157°C (0.45MPa)	76.0°C (0.45MPa)	68.6°C (0.45MPa)
Young’s Modulus (X-Y axis)	5136.7 ± 192.2 MPa	8636.5 ± 211.4 MPa	3311.2 ± 134.9 MPa	5356.9 ± 211.0 MPa	4293.7 ± 116.4 MPa	1983.0 ± 74.9 MPa	3710.1 ± 151.1 MPa
Tensile Strength (Z axis)	48.3 ± 3.9 MPa	54.0 ± 5.2 MPa	52.2 ± 0.76 MPa	60.7 ± 1.1 MPa	21.5 ± 2.7 MPa	20.7 ± 0.56 MPa	41.1 ± 4.08 MPa
Charpy Impact Strength (X-Y)	29.9 ± 1.6 kJ/m2	24.0 ± 1.0 kJ/m2	33.7 ± 1.4 kJ/m2	27.4 ± 0.5 kJ/m2	24.1 ± 2.4 kJ/m2	29.3 ± 2.2 kJ/m2	18 ± 1.1 kJ/m2
Carbon / Glass Fiber wt%	15%	20%	10%	25%	0%	0%	8%
Recommended support material	PolySupport for PA12	PolyDissolve S1	PolySupport For PA12	PolyDissolve S1	PolySupport For PA12	N/A	N/A
Drying condition	100°C 10h	100°C 10h	100°C 10h	100°C 10h	100°C 10h	65°C 3h	65°C 3h

Fiberon PA612 - 15% carbon fiber

Fiberon PA612-CF15

3D printing filament

HDT(°C) @0.45 MPa: 175

Bending modulus (dry-MPa): 4583

Bending modulus (wet-MPa): 3888

Material characteristics

Fiberon PA612-CF15 properties

Print in Fiberon PA612-CF15

Comparison chart for Fiberon materials

Fiberon Material Comparison

Fiberon PA612-CF15	Fiberon PA6-CF20	Fiberon PA12-CF10	Fiberon PA6-GF25	Fiberon PA612-ESD	Fiberon PETG-ESD	Fiberon PETG-RCF08
Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews
—	—	—	—	—	—	—
Price	Price	Price	Price	Price	Price	Price
—	—	—	—	—	—	—
Nozzle Temperature	Nozzle Temperature	Nozzle Temperature	Nozzle Temperature	Nozzle Temperature	Nozzle Temperature	Nozzle Temperature
250-300°C	280-300°C	260-300°C	280-300°C	280-300°C	250-290°C	240-270°C
Bed Temperature	Bed Temperature	Bed Temperature	Bed Temperature	Bed Temperature	Bed Temperature	Bed Temperature
40-50°C	40-50°C	40-50°C	40-50°C	40-50°C	70-80°C	60-70°C
Printing Speed	Printing Speed	Printing Speed	Printing Speed	Printing Speed	Printing Speed	Printing Speed
Up to 300mm/s	Up to 300mm/s	Up to 300mm/s	Up To 300mm/s	Up To 300mm/s	Up To 500mm/s	Up To 300mm/s
Chamber Temperature	Chamber Temperature	Chamber Temperature	Chamber Temperature	Chamber Temperature	Chamber Temperature	Chamber Temperature
Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature
Flame Retardancy	Flame Retardancy	Flame Retardancy	Flame Retardancy	Flame Retardancy	Flame Retardancy	Flame Retardancy
HB	HB	HB	HB	HB	HB	HB
Heat Deflection Temperature	Heat Deflection Temperature	Heat Deflection Temperature	Heat Deflection Temperature	Heat Deflection Temperature	Heat Deflection Temperature	Heat Deflection Temperature
175°C (0.45MPa)	215°C (0.45MPa)	131°C (0.45MPa)	191°C (0.45MPa)	157°C (0.45MPa)	76.0°C (0.45MPa)	68.6°C (0.45MPa)
Young’s Modulus (X-Y axis)	Young’s Modulus (X-Y axis)	Young’s Modulus (X-Y axis)	Young’s Modulus (X-Y axis)	Young’s Modulus (X-Y axis)	Young’s Modulus (X-Y axis)	Young’s Modulus (X-Y axis)
5136.7 ± 192.2 MPa	8636.5 ± 211.4 MPa	3311.2 ± 134.9 MPa	5356.9 ± 211.0 MPa	4293.7 ± 116.4 MPa	1983.0 ± 74.9 MPa	3710.1 ± 151.1 MPa
Tensile Strength (Z axis)	Tensile Strength (Z axis)	Tensile Strength (Z axis)	Tensile Strength (Z axis)	Tensile Strength (Z axis)	Tensile Strength (Z axis)	Tensile Strength (Z axis)
48.3 ± 3.9 MPa	54.0 ± 5.2 MPa	52.2 ± 0.76 MPa	60.7 ± 1.1 MPa	21.5 ± 2.7 MPa	20.7 ± 0.56 MPa	41.1 ± 4.08 MPa
Charpy Impact Strength (X-Y)	Charpy Impact Strength (X-Y)	Charpy Impact Strength (X-Y)	Charpy Impact Strength (X-Y)	Charpy Impact Strength (X-Y)	Charpy Impact Strength (X-Y)	Charpy Impact Strength (X-Y)
29.9 ± 1.6 kJ/m2	24.0 ± 1.0 kJ/m2	33.7 ± 1.4 kJ/m2	27.4 ± 0.5 kJ/m2	24.1 ± 2.4 kJ/m2	29.3 ± 2.2 kJ/m2	18 ± 1.1 kJ/m2
Carbon / Glass Fiber wt%	Carbon / Glass Fiber wt%	Carbon / Glass Fiber wt%	Carbon / Glass Fiber wt%	Carbon / Glass Fiber wt%	Carbon / Glass Fiber wt%	Carbon / Glass Fiber wt%
15%	20%	10%	25%	0%	0%	8%
Recommended support material	Recommended support material	Recommended support material	Recommended support material	Recommended support material	Recommended support material	Recommended support material
PolySupport for PA12	PolyDissolve S1	PolySupport For PA12	PolyDissolve S1	PolySupport For PA12	N/A	N/A
Drying condition	Drying condition	Drying condition	Drying condition	Drying condition	Drying condition	Drying condition
100°C 10h	100°C 10h	100°C 10h	100°C 10h	100°C 10h	65°C 3h	65°C 3h
