296x128 Resolution 2.9 Inch E-Paper Display Panel Module 3.3v E-Ink Electronic Screen SPI Interface with Embedded Controller Support Partial Refresh for Raspberry Pi/Arduino/Nucleo/Jetson Nano

Description:

This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports

Partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice

for applications such as shelf label, industrial instrument, and so on.

Specifications:

• Operating voltage: 3.3 V/5 V.
• Interface: 3-wire SPI, 4-wire SPI
• Outline dimensions: 89.5 mm x 38 mm.
• Display size: 66.89 mm x 29.05 mm.
• Dot pitch: 0.138 × 0.138.
• Resolution: 296 × 128.
• Display colour: black, white.
• Grey level: 2.
• Partial refresh time: 0.3s.
• Full refresh time: 2s.
• Refresh power: 26.4mW (typ.)
• Standby power: <0.017mW.
• Viewing angle: >170°.

Package includes:

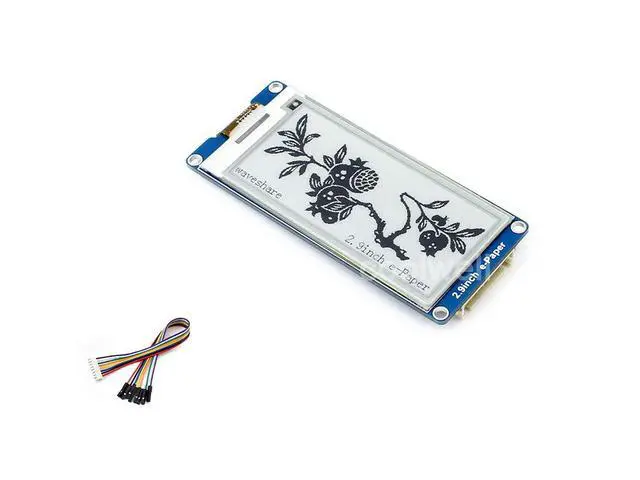

1. 1 x 2.9 inch e-paper module.

2. PH2.0 20 cm 8 pin x 1.

100% original,offer technical support!
