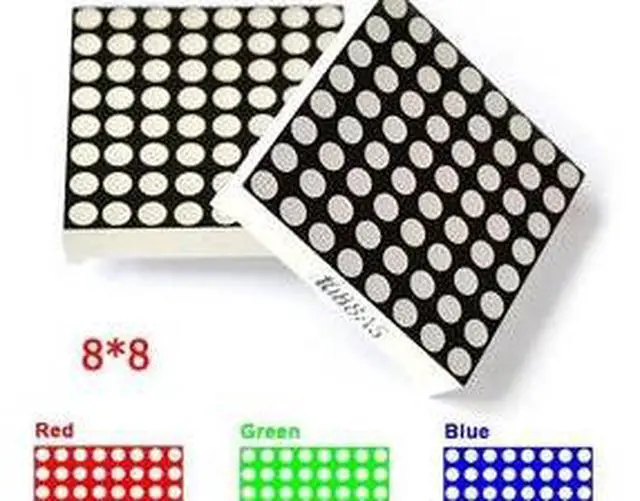

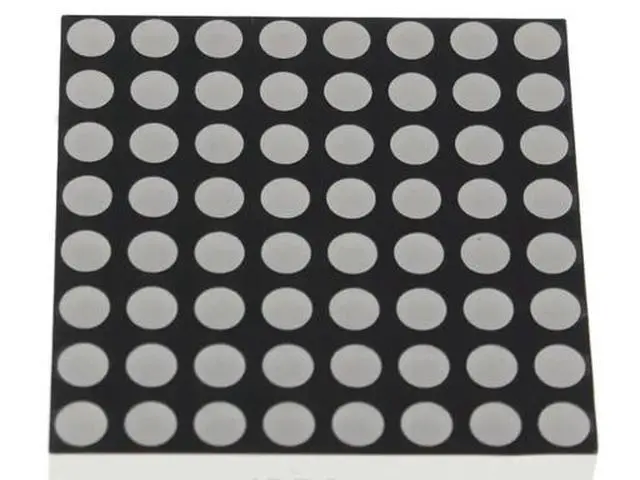

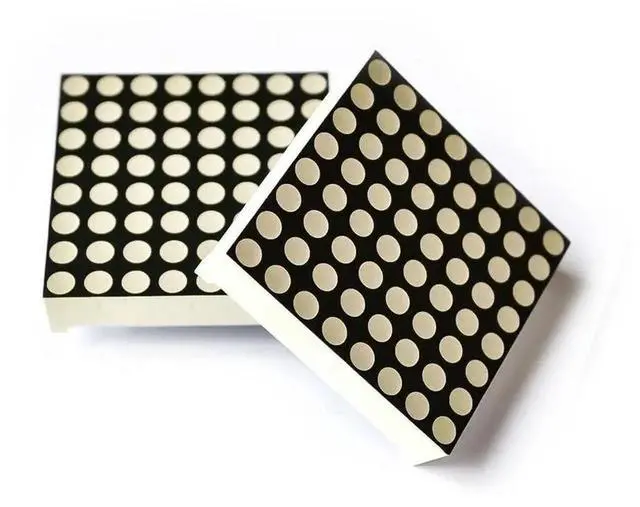

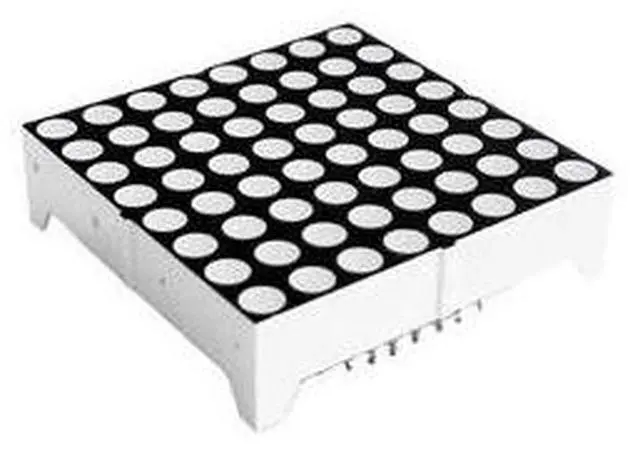

3mm 8x8 LED Dot Matrix Module, Bright Red 1088AS Common Cathode Display, 64 Pixels LED Lattice for Arduino DIY Electronic Projects
- Standard 8 × 8 dot matrix, 3mm high brightness red light
- Model: 1088AS; Specification: 8 rows x 8 columns=64 LEDs; Point distance: 3mm
- Luminous color: High brightness pure red (625-630nm); Mask: Black, high contrast, clear display

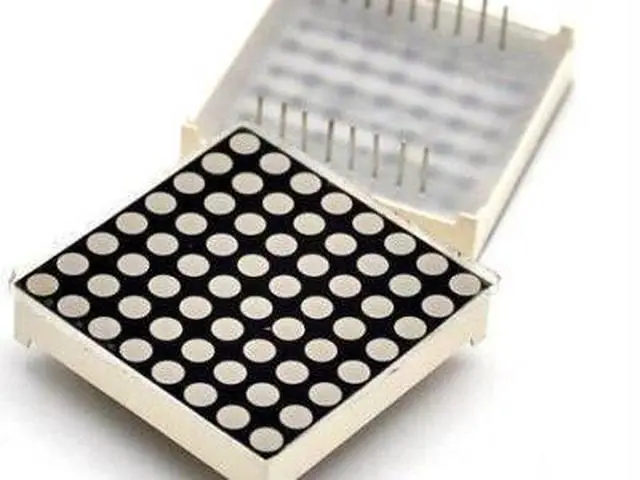

- Common cathode, 16 pin straight insertion
- Drive logic: Row cathode, column anode, compatible with mainstream microcontrollers/Arduino direct drive
- Pin: Standard 16P direct insertion, spacing 2.54mm, suitable for soldering breadboards/hole boards
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1088AS 8x8 3mm Bright Red LED Dot Matrix Module is a compact and high-brightness display for DIY electronics, Arduino projects, and industrial indicators. It features 64 red LEDs arranged in an 8×8 grid with 3mm pitch, delivering clear and vivid red output with high contrast black face.
This is a common cathode (row cathode, column anode) type with 16 through-hole pins, easy to insert into breadboards or solder onto PCBs. It works directly with Arduino, Raspberry Pi, and most microcontrollersideal for making LED animations, scrolling text, pixel games, status displays, and digital clocks.
Built with reliable components, the module offers stable electrical performance (2.12.5V, 20mA) and wide temperature tolerance (-30 to +70). Compact size 32×32×8mm, low power consumption, and long service life make it perfect for both hobbyists and commercial projects.
Key Features:
- Model: 1088AS
- Matrix: 8×8 (64 LEDs)
- Pitch: 3mm
- Color: Bright Red (625630nm)
- Type: Common Cathode (Row Cathode, Column Anode)
- Pins: 16P through-hole
- Size: 32×32×8mm
- Application: Arduino, Raspberry Pi, DIY, Industrial Indicator
Package Includes: 1 × 1088AS 8x8 LED Dot Matrix Module (Controller not included)
- Model: 1088AS
- Matrix: 8×8 (64 LEDs)
- LED Size: 3mm
- Emission Color: Bright Red (625630nm)
- Polarity: Common Cathode (Row Cathode, Column Anode)
- Number of Pins: 16 (through-hole)
- Forward Voltage: 2.12.5V
- Forward Current: 20mA (per LED, recommended)
- Dimensions: 32 × 32 × 8 mm
- Operating Temperature: -30 ~ +70
- Certification: RoHS Compliant
