AJMRTC 2.13inch E-Ink Display HAT, 212x104 Three-Color Black White Red e-Paper Screen SPI Interface, Compatible with Raspberry Pi 4B 3B+ 3B 2B Zero Zero W WH and Jetson Nano, Supports Partial Refresh
- - 2.13 inch tri-color e-ink screen, 212×104 resolution, supports black, white and red display for richer content presentation
- - Ultra-low power consumption, image remains visible after power off; power only needed during screen refresh
- - Standard 40PIN GPIO HAT design with SPI interface, plug and play for Raspberry Pi and Jetson Nano
- - Wide viewing angle, paper-like reading effect, great for shelf labels, dashboards and DIY embedded projects
- - Comes with open-source demo codes and documents, easy for developers to test and program
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

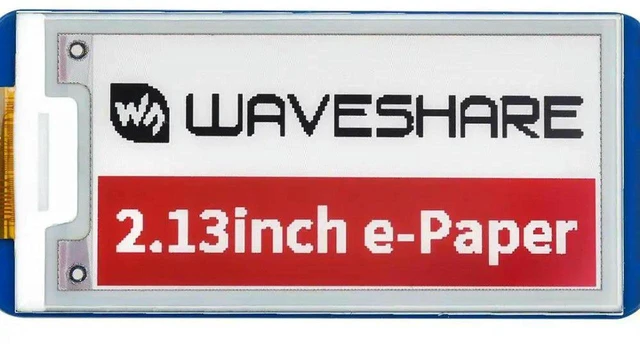

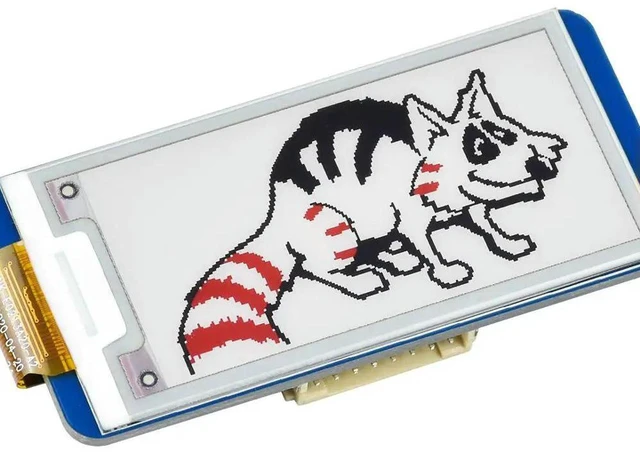

AJMRTC 2.13inch three-color E-Ink Display HAT adopts e-paper technology with 212×104 resolution, supporting black, white and red colors. It features ultra-low power draw, only consuming power when refreshing the screen, and can retain the displayed content even after power disconnection.

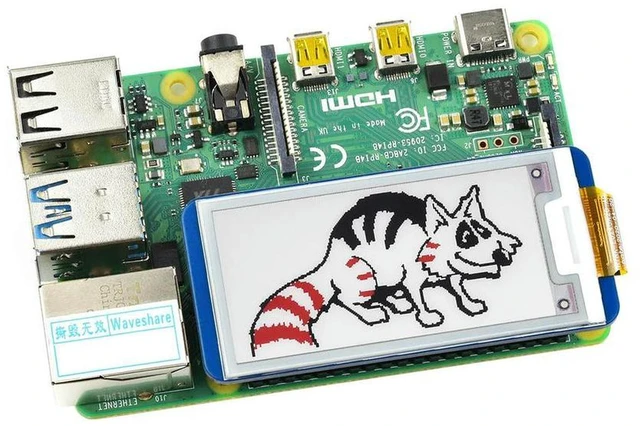

With a standard Raspberry Pi 40PIN GPIO header and SPI communication interface, this e-ink HAT works seamlessly with Raspberry Pi 4B, 3B+, 3B, 2B, Zero, Zero W, Zero WH and Jetson Nano. It delivers a paper-like visual experience with over 170° wide viewing angle, no backlight required, which reduces eye strain.
It supports partial refresh to cut refresh time and flicker. Ideal for electronic shelf tags, system status monitors, weather displays, badge projects and other embedded DIY applications. Development resources including sample codes and tutorials are provided to accelerate your project development.
- Display Size: 2.13 inch
- Resolution: 212 × 104 pixels
- Display Color: Black, White, Red
- Interface: SPI
- Power Supply: 3.3V
- Compatible Boards: Raspberry Pi 4B / 3B+ / 3B / 2B / Zero / Zero W / Zero WH, Jetson Nano
- Refresh Mode: Partial Refresh / Full Refresh
- Viewing Angle: 170°
- Dimension: 65 × 30 mm approx
