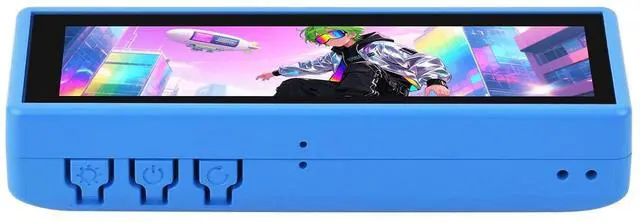

ESP32-S3 High-Performance Development Board with 3.49inch IPS Capacitive Touch Display, 172 × 640 Resolution, Integrated with ESP32-S3R8 Dual-core Processor @(ESP32-S3-Touch-LCD-3.49B-EN)

Part Number: ESP32-S3-Touch-LCD- 3.49B -EN ESP32-S3 High-Performance Development Board With 3.49 inch IPS Capacitive Touch Display, 172 × 640 Resolution, Integrated With ESP32-S3R8 Dual-core Processor The ESP32-S3-Touch-LCD- 3.49 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Onboard 3.49 inch capacitive touch IPS display, highly integrated power management IC, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, low-power audio codec IC, echo cancellation circuit, and so on, which makes it easy for you to develop and integrate into the products quickly. Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory Onboard 3.49 inch IPS capacitive touch display for clear color picture display, 172 × 640 resolution, 16.7M color. Equipped with dual microphone array with noise reduction and echo cancellation circuit, suitable for accurate speech recognition and near/far-field wake-up. Built-in AXS15231B LCD & touch controller, using QSPI and I2C interfaces for communication respectively Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.

. Onboard PCF85063 RTC chip for RTC functionality. Onboard PWR and BOOT programmable buttons for easy custom func
