PACKAGE CONTENT: ( NOT include Raspberry Pi board. )

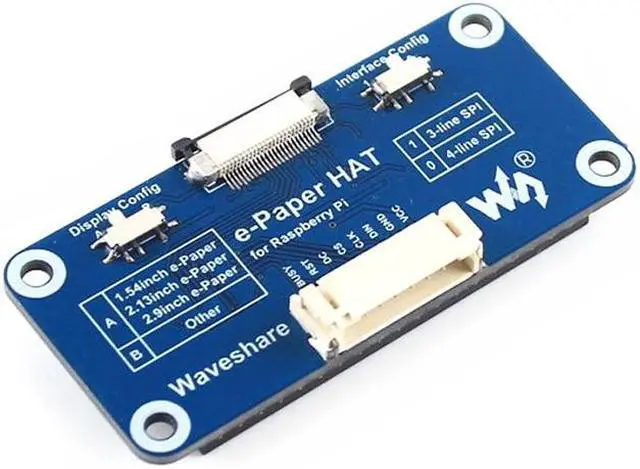

e-Paper Driver HAT x1
This is a universal driver board for e-Paper raw panels, can be used to drive various SPI interface e-Paper from
Waveshare. (Note: e-Paper and Raspberry Pi are NOT included. )Features

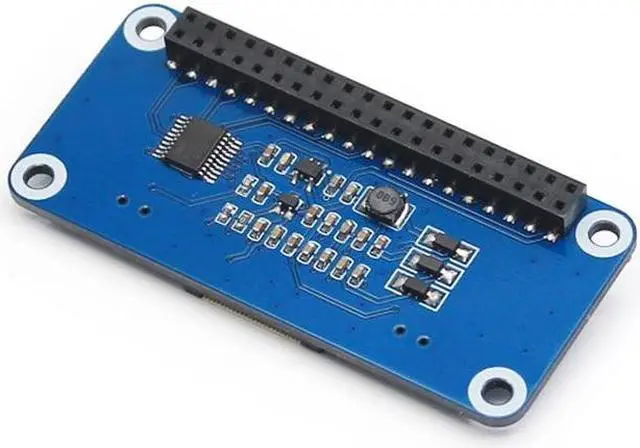

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson
Nano(Note: e-Paper and Raspberry Pi are NOT included. )
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V /5V MCUs
Wiki English manual (examples for Raspberry Pi/Arduino/STM32)Specifications
Operating voltage: 3.3V ~5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 65mm 30.2 mm
Mounting hole size: 3.0 mmInterface
