MiniPCIE module 4G Cat.1 LTE full Netcom Luat secondary development Air724UGI(Air724UGI)

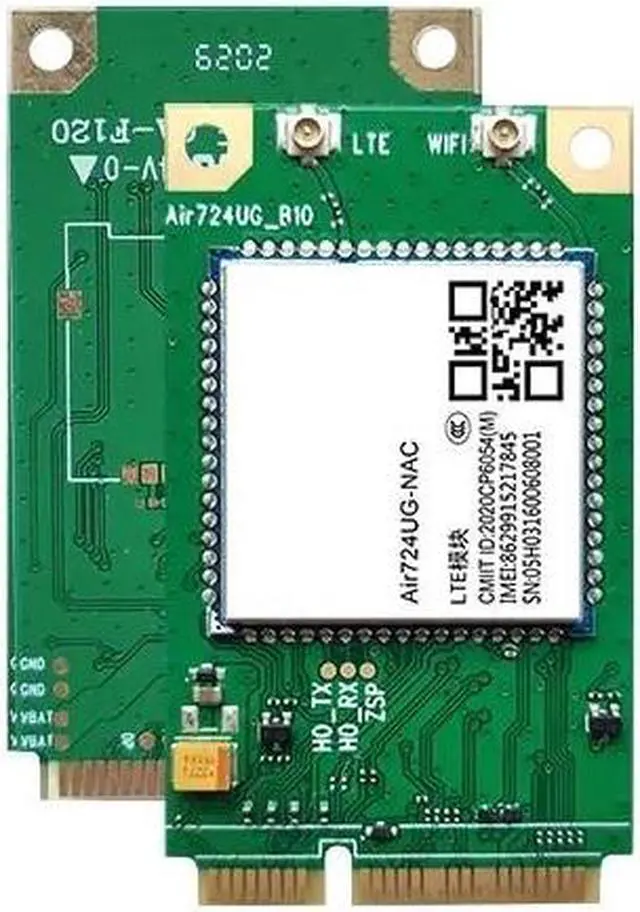

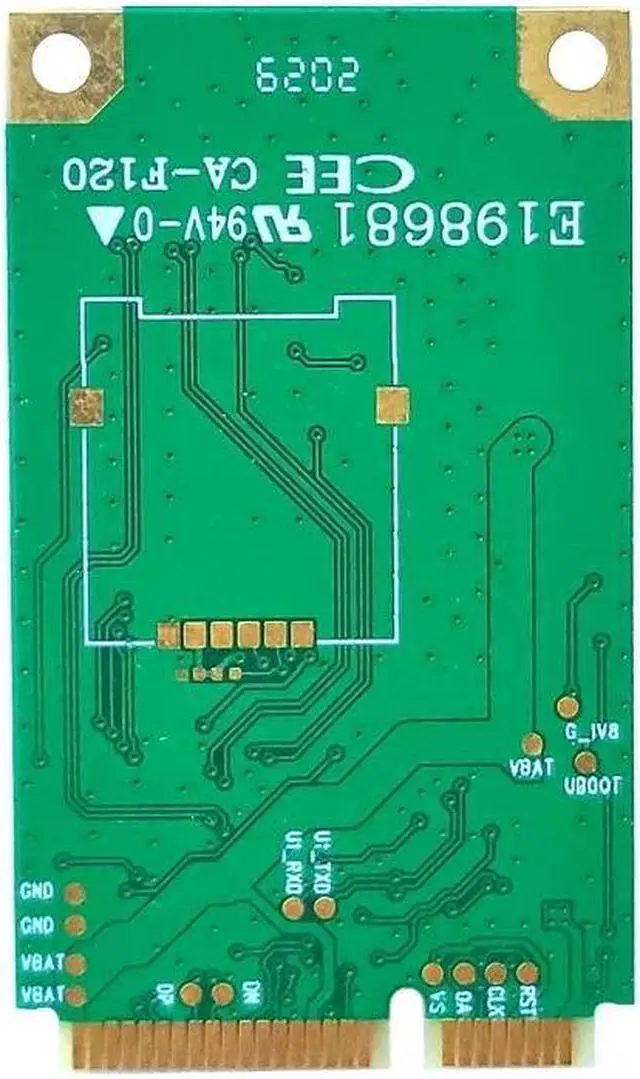

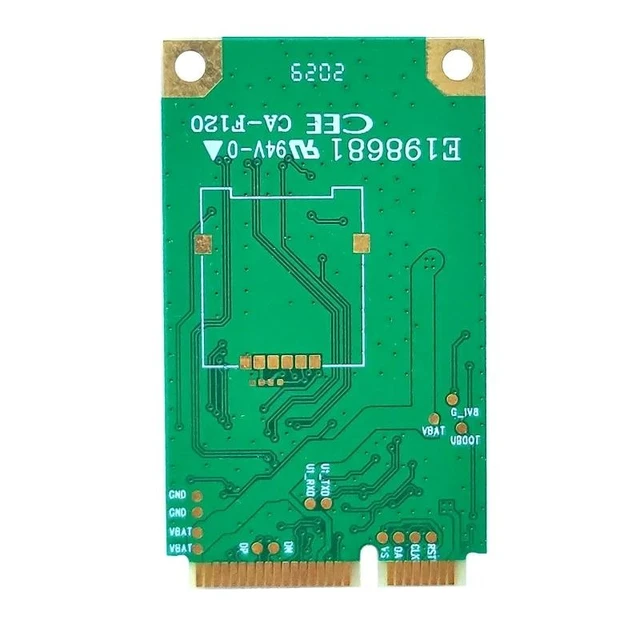

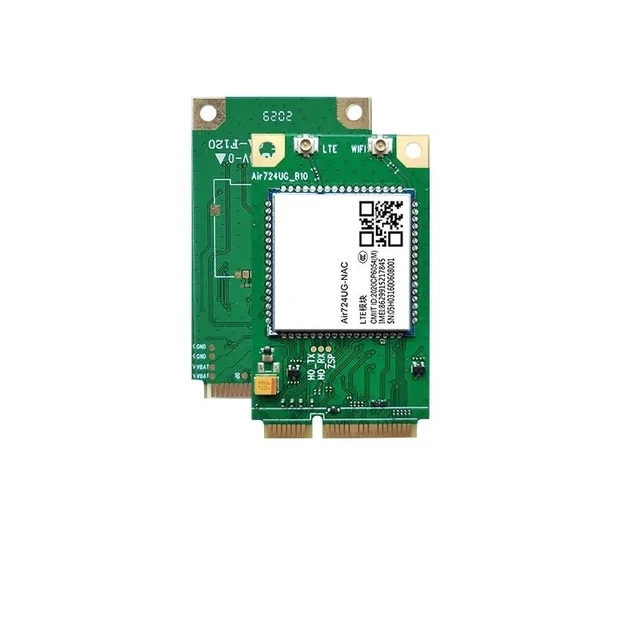

Air724UGI
PCI Express Mini Card 1.2 Standard interface LTE module
Air724UG-Mini PCIe is a low-power and cost-effective LTE Cat. 1 module launched by Heyu Communication. It is specially designed for M2M and IoT applications and supports the maximum downlink rate of 10Mbps and the maximum uplink rate of 5Mbps. Such as USB Internet access, standard AT, Lua script secondary development, and can provide professional and timely online technical support.
Air724UG-Mini PCIe has rich network protocols built in, integrates multiple industry standard interfaces, and supports a variety of drivers and software features (e. g. Windows XP, Windows Vista, Windows 7/8/8/10, Linux, Android and other operating systems under the USB driver), greatly expanded its application scope in the M2M field, such as public network intercom, wearable devices, smart meter reading, smart home gateway, tracker, etc.
General features:

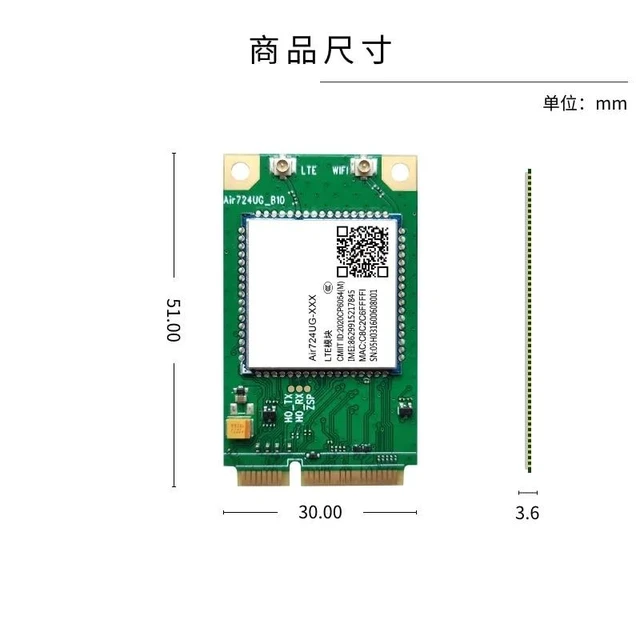

Size (mm):

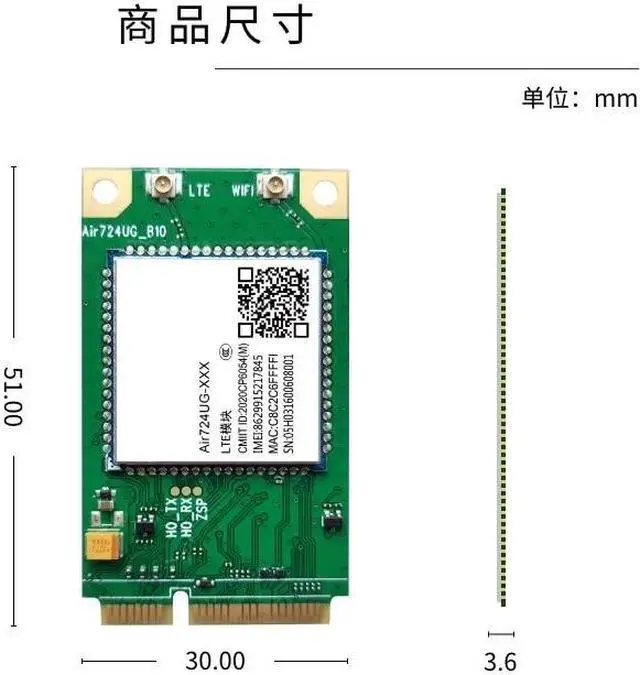

51.0 * 30.0 * 3.6
Weight:
Material 6.6 g
Encapsulation method:
LCC
Supply voltage:
VBAT is 3.3 V to 4.3 V
A typical value of 3.8 V
Built-in patch card:
Does not support
Temperature range:
Normal operating temperature:
- 35 C to + 70 C
Limit operating temperature:
To 40 C to + 85 C
It features:
non-CA CAT1 is supported at most
Supports 1.4 to 20MHz RF broadband
LTE FDD: -
The maximum upstream rate is 5Mbps and the maximum downstream rate is 10Mbps
LTE TDD: -
Upstream and downstream configuration 1:
The maximum upstream rate is 4Mbps and the maximum downstream rate is 6Mbps
Upstream and downstream configuration 2:
The maximum upstream rate is 2Mbps and the maximum downstream rate is 8Mbps
Supported frequency bands:
LTE-FDD support frequency band:
B1/B3/B5/B8
LTE-TDD support frequency band:
B34/B38/B39/B40/B41
Transmitted power:
LTE-FDD transmission power:
Class3 (23 DBM plus or minus 2 db)
LTE-TDD transmission power:
Class3 23 DBM (+ / - 1 3 db)
Network protocol Features:
Support:
TCP/UDP/PPP/FTP/HTTP/CMUX/NTP/HTTPS/PING/FTPS/MMS/SSL
USB interface:
Compatible with USB 2.0 (slave mode only)
Data transfer rate up to 480Mbps
Used for AT instruction, data transmission, software debugging, software upgrade
USB virtual serial port driver:
Windows 7/ 8.1 /10
Linux 2.6 x / 3 x / 4.1 ~ 4.15
USB driver for Android 4. X /5. X /6. X /7. X
Serial port properties:
UART1:
Used for AT command and data transmission
Support hardware flow control (CTS/RTS)
The maximum baud rate is 921600bps. The default baud rate is 115200bps
Other interfaces:
RESET (active at low level)
NETLIGHI interface:
1
Interface support:
SPI Camera:
support
SPI LCD:
support
(:
support
Camera:
support
Keyboard:
Supports 66 scanning keyboard
Wireless interface:
Characteristic resistance 50 ohms

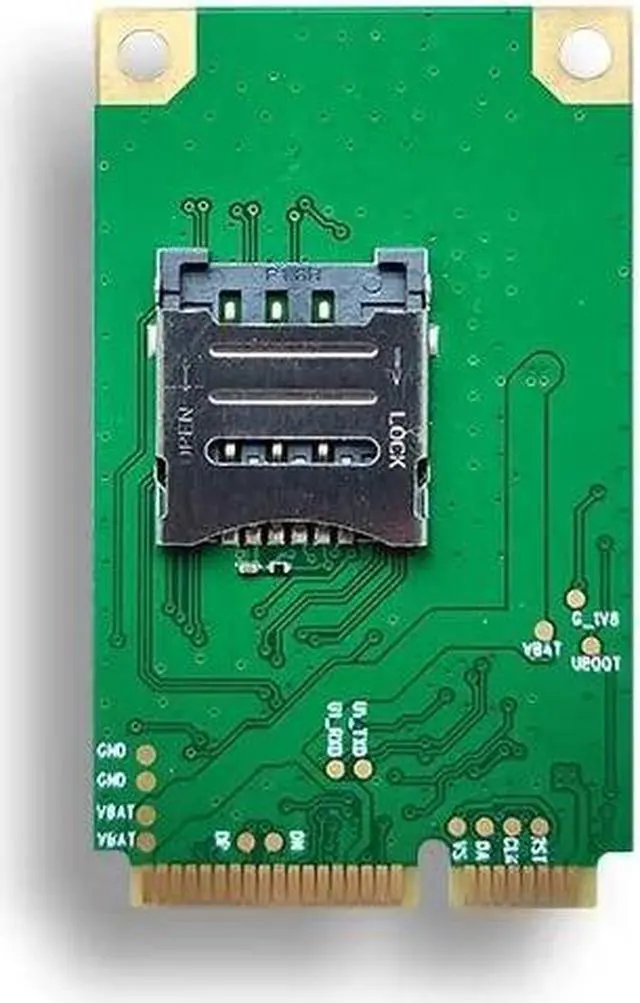

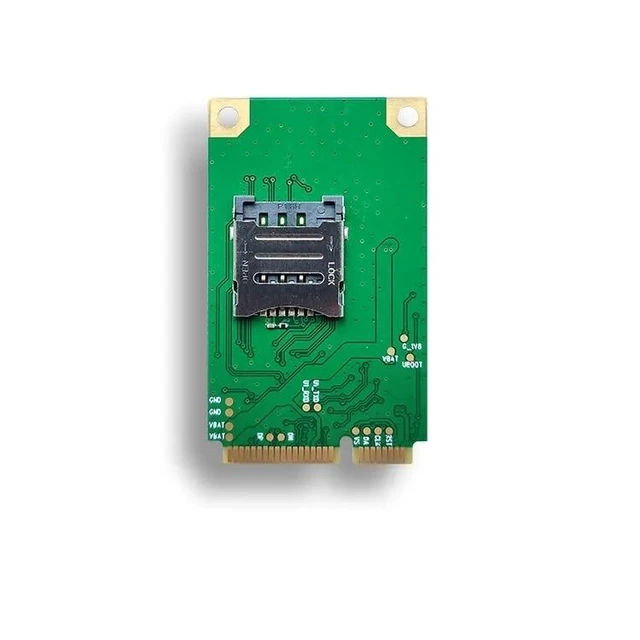

SIM card interface:
Support USIM/SIM card ( 1.8V /3V)
Certification Information:
RoHS standard:
Conform to the

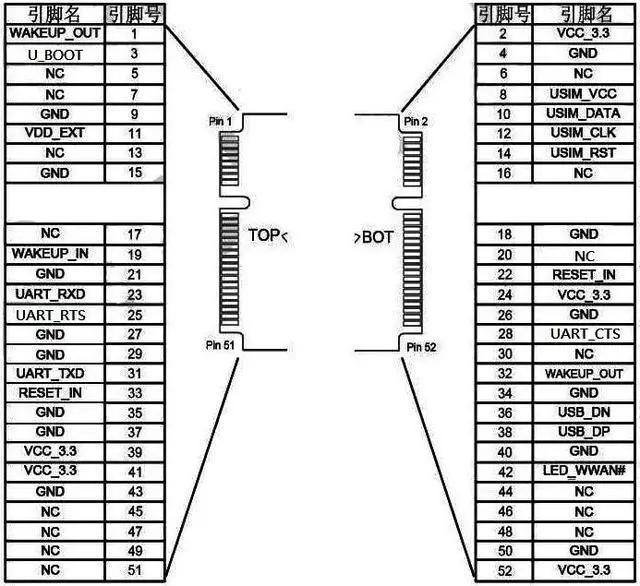

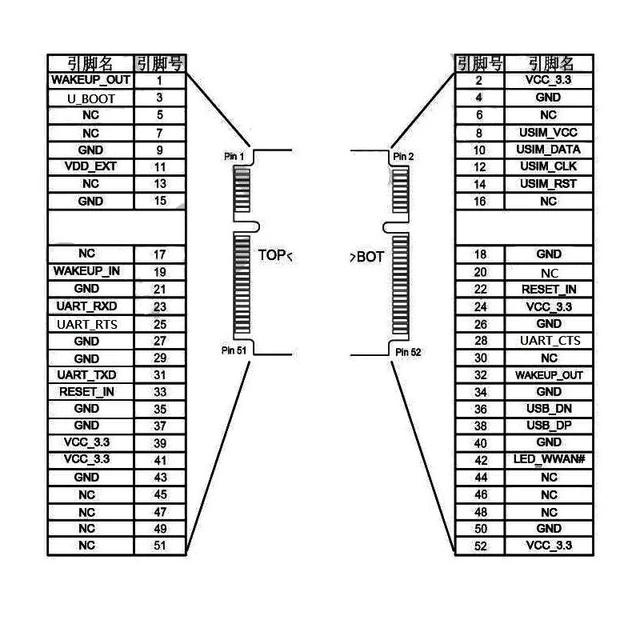

Pin:
Number of pins:
52
Development mode:
The AT command
Secondary development:
Luat
