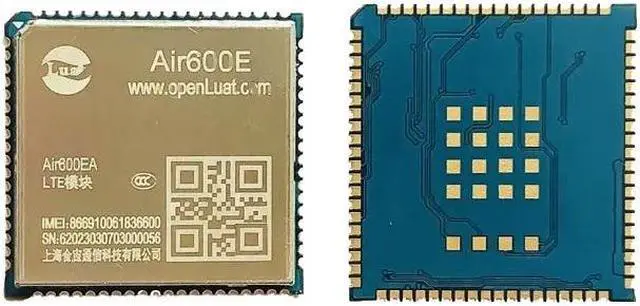

Air600EA 4G Cat.1 communication module compatible with EC600N/U/M/G/E series

Air600EA adopts EC618 platform and supports LTE 3GPP Rel. 13 technology.
Air600EA is a 4G all-Netcom module that can be adapted to different operators and products, ensuring maximum flexibility in product design.
The Air600EA supports dual card single wait;
The Air600EA supports USB 2.0;
The Air600EA supports external audio codec;
Air600EA supports Cat. 1 frequency band in Europe, Africa, Middle East and Southeast Asia;
Air600EA has rich built-in networking protocols, integrates multiple industry standard interfaces, and supports a variety of drivers and software features (e. g. Windows 7/8/8/10, 8/1/10,
Linux, Android and other operating systems under the USB driver), greatly expanded its application in the field of M2M, such as CPE, router, data
Card, tablet computer, car, security and industrial grade PDA.
Main advantage
FOTA upgrade (support for Luat cloud background, custom background) comprehensive coverage of all network formats
The compact size of SMT packaging format meets the space requirements of small end products
Support a variety of drivers and software functions (such as Windows, Linux, Android and other operating systems under the USB driver, etc. )
Low power consumption, sleep power as low as 600uA
Frequency band
LTE-TDD: B38/B40/B41
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
data
LTE-TDD:
The upstream and downstream ratio is 2
Max 8Mbps (DL) / Max 2Mbps (UL)
The upstream and downstream ratio is 1
Max 6Mbps (DL) / Max 4Mbps (UL)
LTE-FDD:
Max 10Mbps (DL) / Max 5Mbps (UL)
General characteristic
3GPP E-UTRA Release 13
Bandwidth: 1.4 /3/5/10/15/20MHz
Temperature range: -40C to +85C
About 3.2 g
Power supply voltage: 3.3V to 4.3V Typical value 3.8V
Software characteristics
USB driver:
Windows7/10/11
Linux/Android
RNDIS driver:
Windows 7/8/8/1/10
Linux/Android
ECM driver:
Linux/Android
Protocol stack:
TCP/UDP/PPP/HTTP/NITZ/NDIS/NTP/HTTPS/MQTT

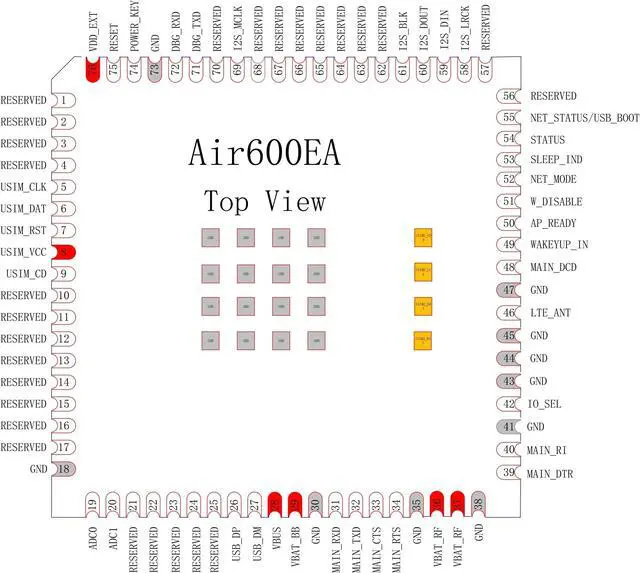

interface
1 USB 2.0 High Speed port (up to 480Mbps)
Dual 1.8V / 3.0V (U) SIM card ports
3 LED control interfaces
(NET_STATUS, NET_MODE and STATUS)
One digital I2S port supporting an external codec
Two UART ports
(main serial port, debugging serial port)
PWRKEY (active low level)
Two ADC ports
Electrical parameter
Output power:
LTE-TDD: Class3(23dBm+1/-3dB)
LTE-FDD: Class3(23dBm+-2dB)
Power consumption:
1uA @ Power off
0.6 mA @ dormancy, typical value
Sensitivity:
FDD B1: -99dBm (10M)
FDD B3: -99dBm (10M)
FDD B5: -99dBm (10M)
FDD B8: -99dBm (10M)
FDD B7: -97dBm (10M)
FDD B20: -99dBm (10M)
FDD B28: -99dBm (10M)
TDD B38: -100dBm (10M)
TDD B40: -100dBm (10M)
TDD B41: -100dBm (10M)

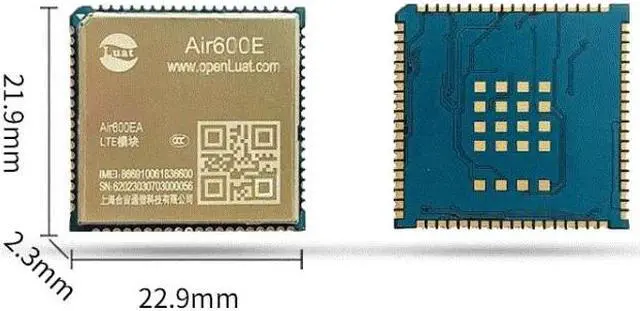

Module size: ( 21.90. 15) mm x ( 22.90. 15) mm x ( 2.30. 15) mm
