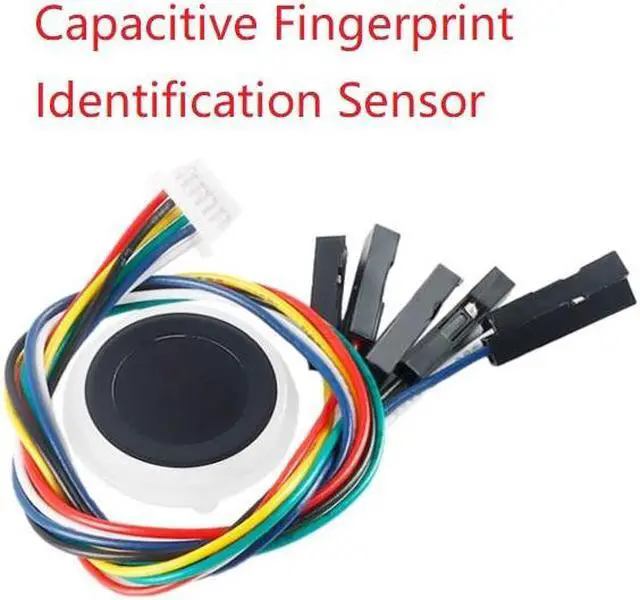

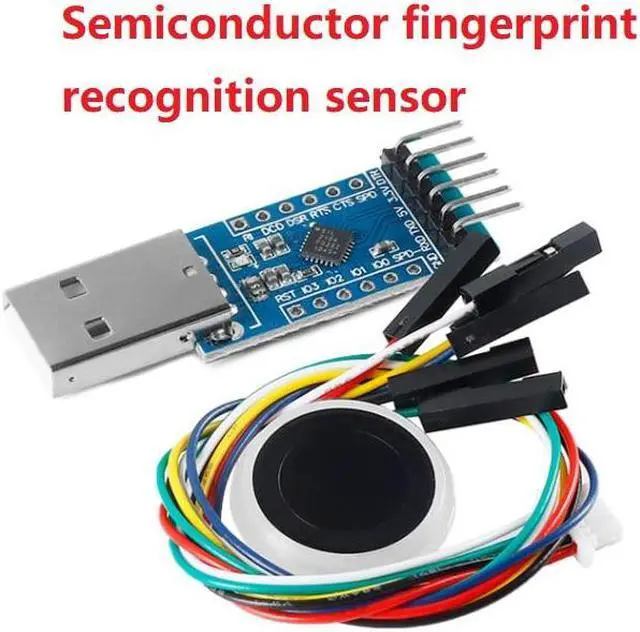

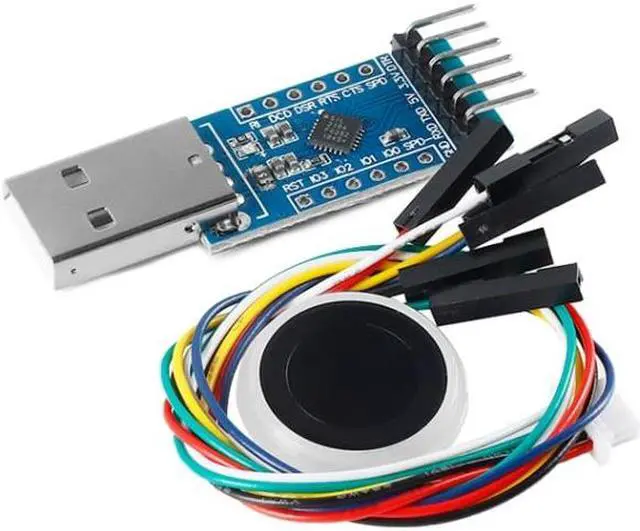

HLK-FPM383C, Area Array Semiconductor Fingerprint Identification Module Capacitive Touch Door Lock Acquisition Sensor(HLK-FPM383C Set)

Supply voltage: 3.3V (typ. )
Supply current: ~45mA (typ., 3.3V power supply, single color LED
Sleep current: <25UA (fingerprint detection)
Storage capacity: Standard 60 pieces (splicing 6 times)
Sensor Type: Capacitive
Resolution: 8bit (256 grayscale values)
Appearance size: 21.00 mm
Electrostatic protection: + 15KV
Natural wear: >million times (repeatedly pressed under 0.6N )
Working environment: -20-+55C, 40%~85% non-condensing
Storage environment: -40~+85C. <85% non-condensing

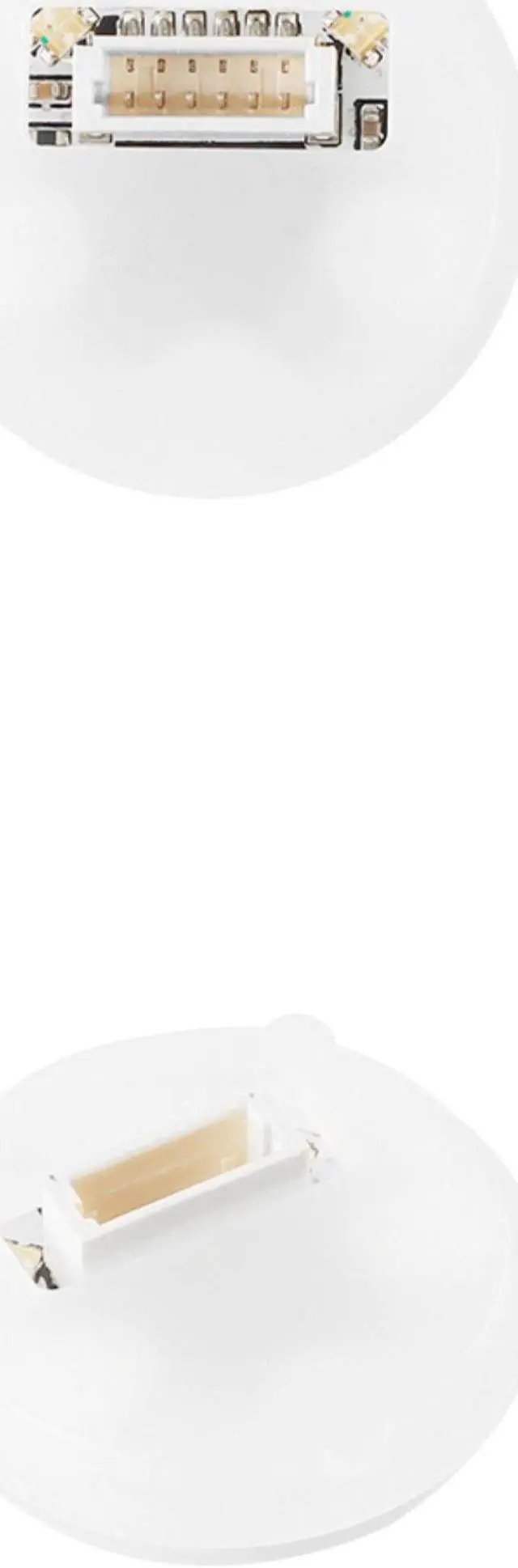

Interface type: 1.0 mm 6Pin
Small size, low power consumption, fast recognition speed, high recognition accuracy, especially suitable for doors
In smaller, battery-operated devices such as locks, card readers, and safes.
The module adopts a capacitive fingerprint sensor, which can effectively detect the fake hand by measuring the fingerprint signal.
Point to the problem. The surface is coated with high hardness, which can be greatly reduced in daily use.
Wear to the fingerprint sensor. In addition, the module can withstand 15Kv static electricity, which in winter
Or it is not easy to be damaged when used in scenarios with high static electricity such as the north.
