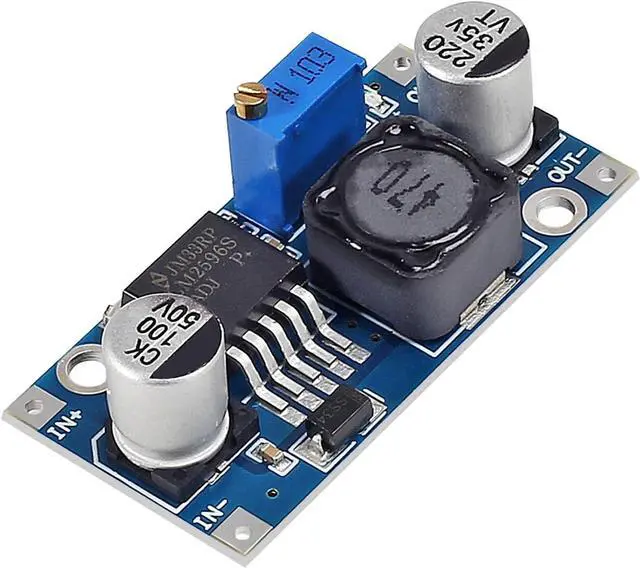

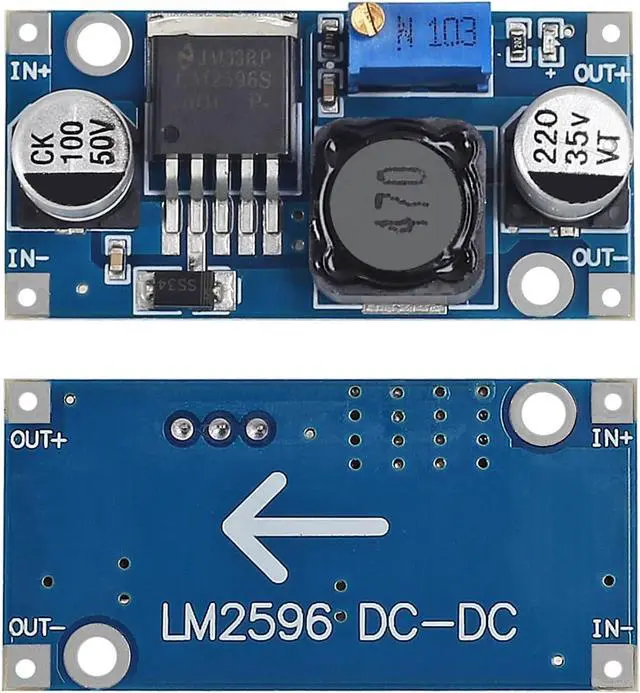

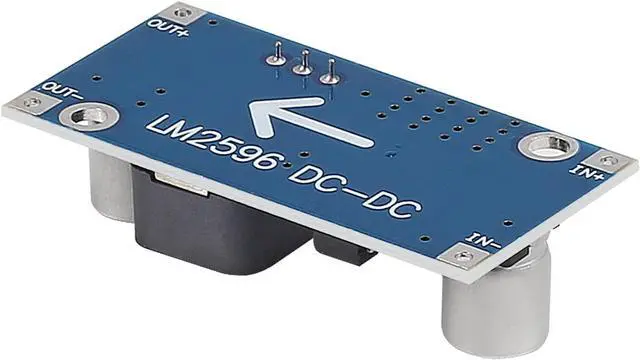

5 Pack LM2596 DC to DC Buck Converter 3.0-40V to 1.5-35V Power Supply Step Down Module
- Color 5PCS
- Item Weight 0.05 Kilograms
- Input Voltage 40 Volts
- Output Voltage 35 Volts (DC)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Input: DC 3 V to 40 V (input voltage must be 1.5 V higher than the output voltage, no boost)
- lm2596 dc-dc buck converter Output: DC 1.5 V to 35 V voltage is continuously adjustable, maximum output current is 3 A

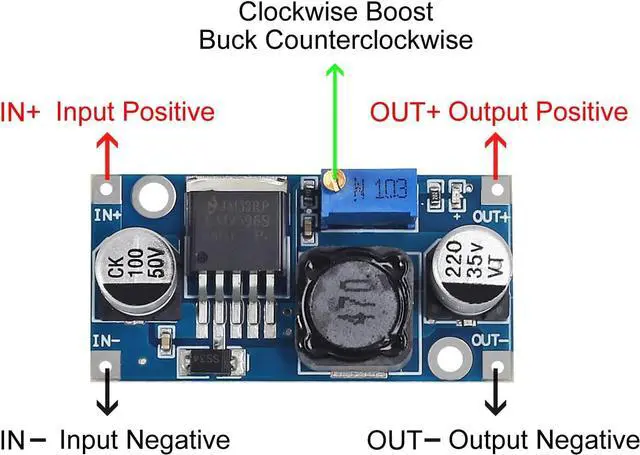

- Steps: connect to power source, adjust the swirl button on the blue potentiometer and monitor voltage with multimeter to get the needed voltage (The factory have tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts ramping down)

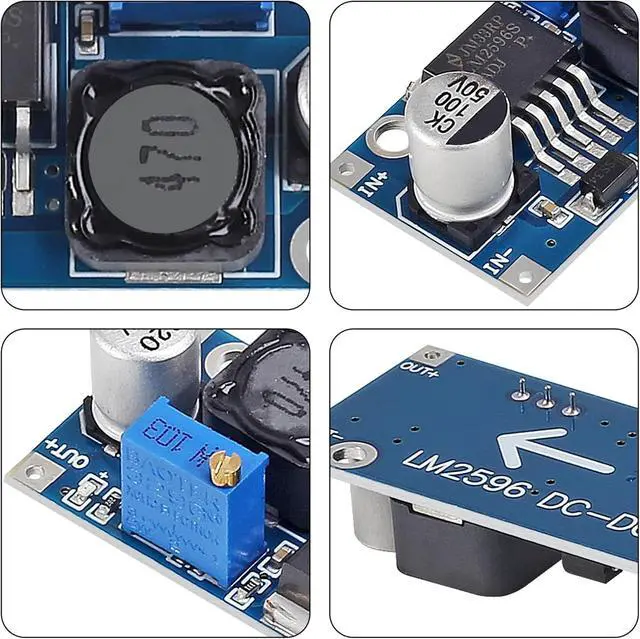

- LM2596 buck converter features: all use SANYO solid-state capacitors, 36 u thickening circuit boards, high-Q inductance with LED indicator output

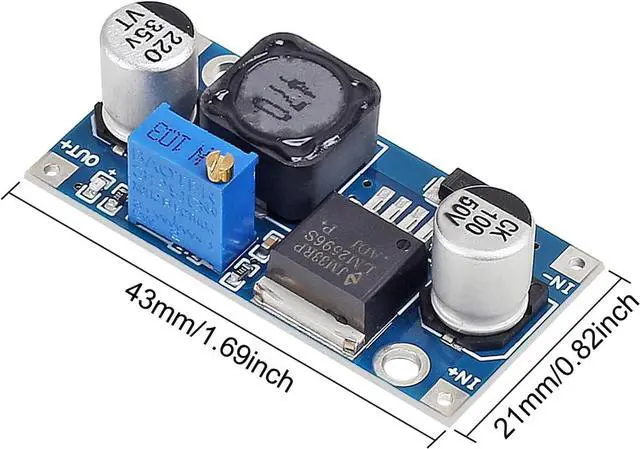

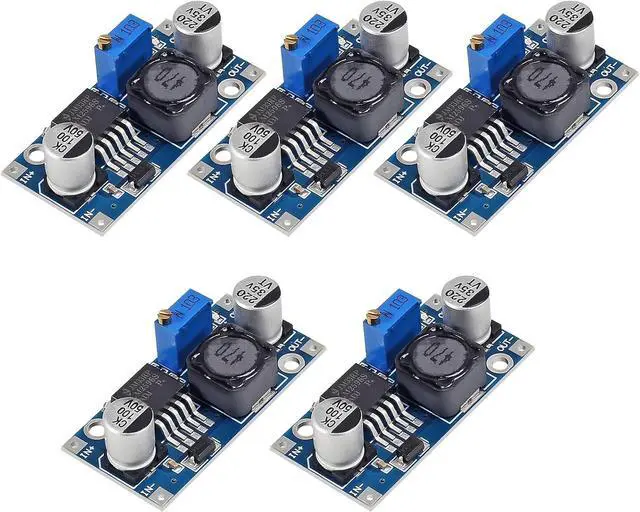

- Quantity: 5 pieces; Size: 45 * 20 * 14 mm
