OV7670 Camera Module with FIFO 30W Pixel Image Sensor STM32 Microcontroller Drive Development Board
Limited time offer, ends 07/19 By NexusPoint
- OV7670 Camera Module with FIFO 30W Pixel Image Sensor STM32 Microcontroller Drive Development Board
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
About this item

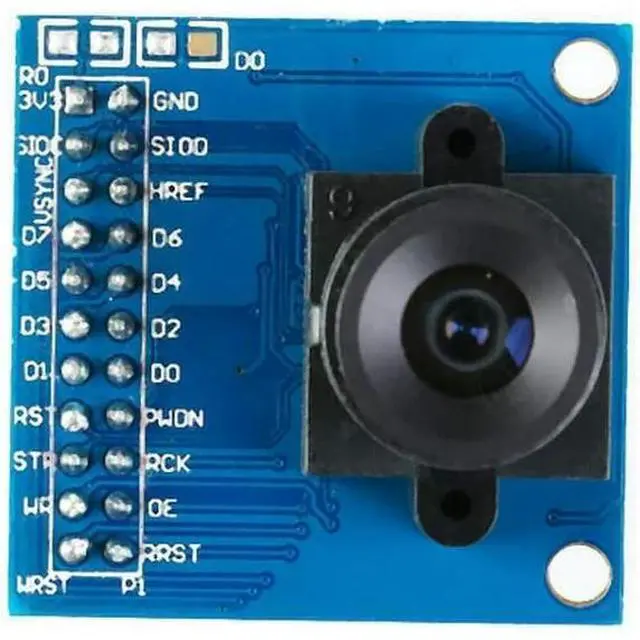

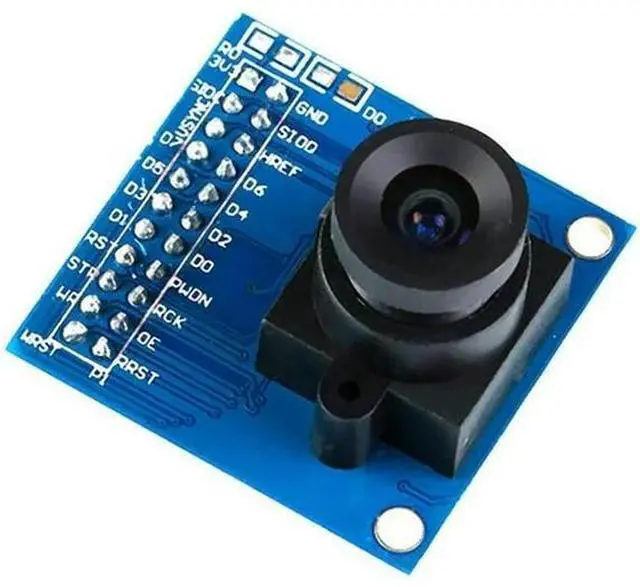

- OV7670 with fifo module is a module with buffer storage space for slow-speed mcu that can realize image acquisition control.

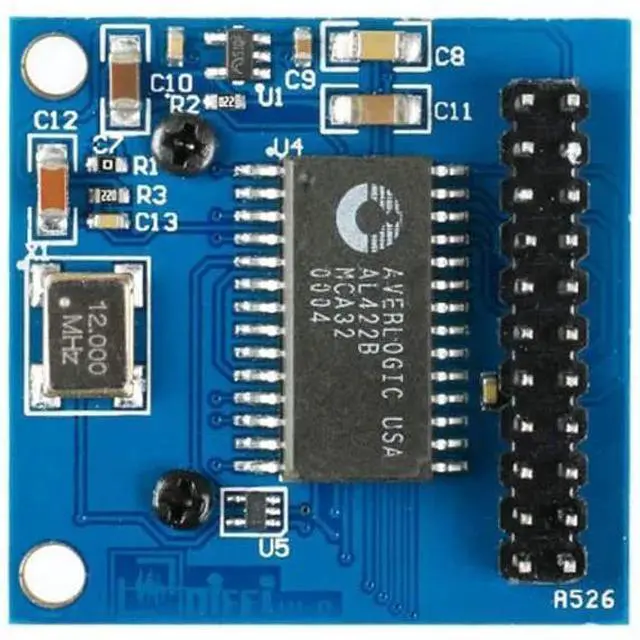

- This module adds a fifo (first-in first-out) memory chip, which also contains a 30w pixel cmos image sensor chip, a 3.6mm focal length lens and lens holder.
- Onboard CMOS chip require different power supplies. Core voltage: 1.8V ± 10%. Analog voltage: 2.45V to 3V. IO voltage: 1.7 to 3V.
- The board leads out control pins and data pins at the same time, which is convenient for operation and use.
- If the internal LDO is used to power the core (1.8V), the I / O voltage should be 2.45V or higher, otherwise the external 1.8V must be used to power the core.
