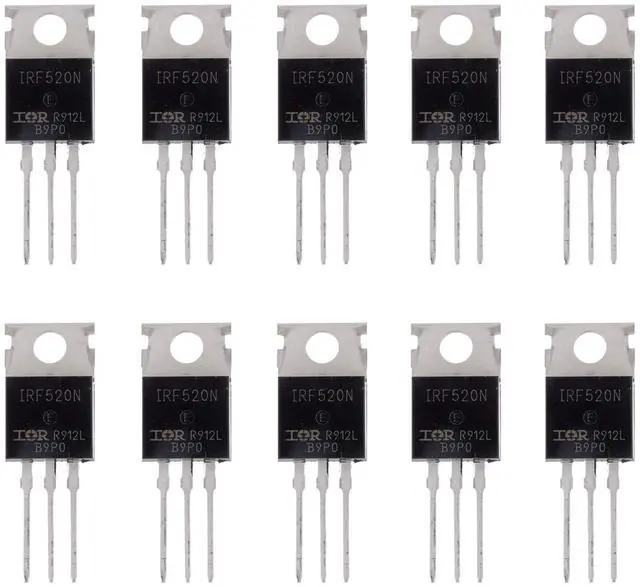

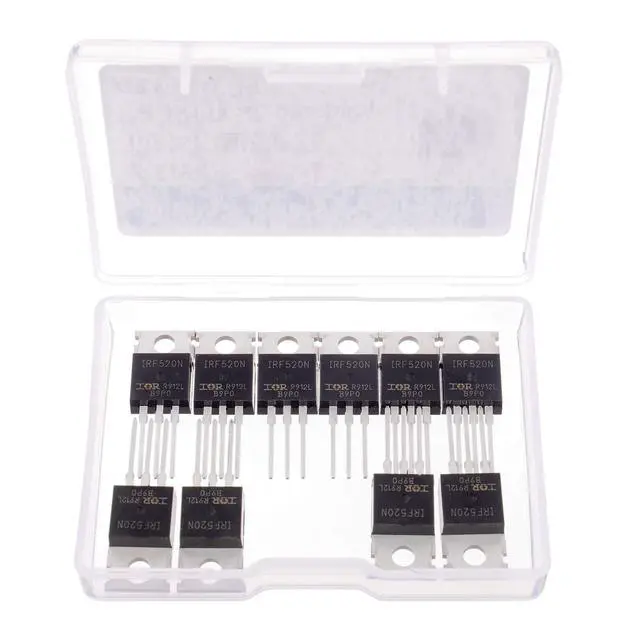

IRF520N MOSFET Transistors IRF520N 9.7 A 100 V N-Channel Power MOSFET TO-220AB (Pack of 10)
- Transistor type: MOSFET
- Transistor polarity: N-Channel
- Drain current (Id Max): 9.7A
- Voltage Vds Max: 100V
- Power(Max): 48W
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
BOJACK IRF520N MOSFET is a field effect transistor that can be
widely used in analog circuits and digital circuits.
Basic parameters:
The IRF520N is available in a TO-220AB package
On-state resistance Rds(on): 0.20 ohm
Voltage Vgs highest: ±20V
Number of stitches: 3
Operating Temperature:-55 °C to +175 °C
Thermal resistance junction to case A: 0.32°C/W
Voltage Vds Typical: 100V
Current Id continuous: 9.7A
Current Idm pulse: 38A
Surface Mount Device: Through Hole Mounting
Lead-free environmental protection
