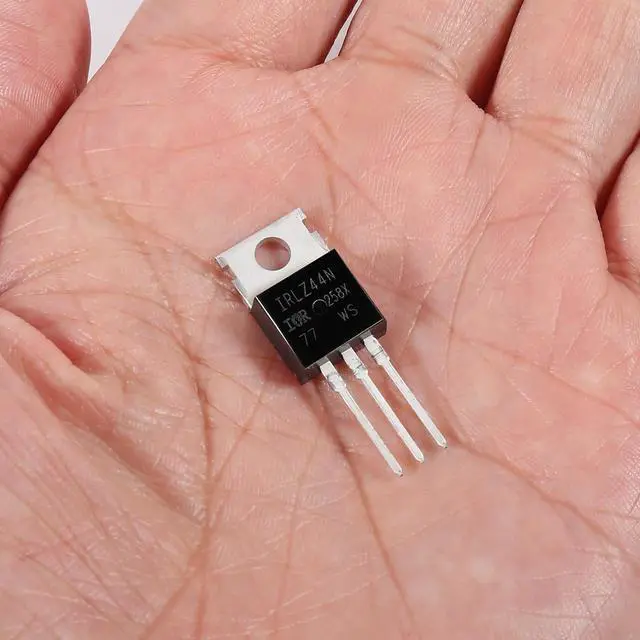

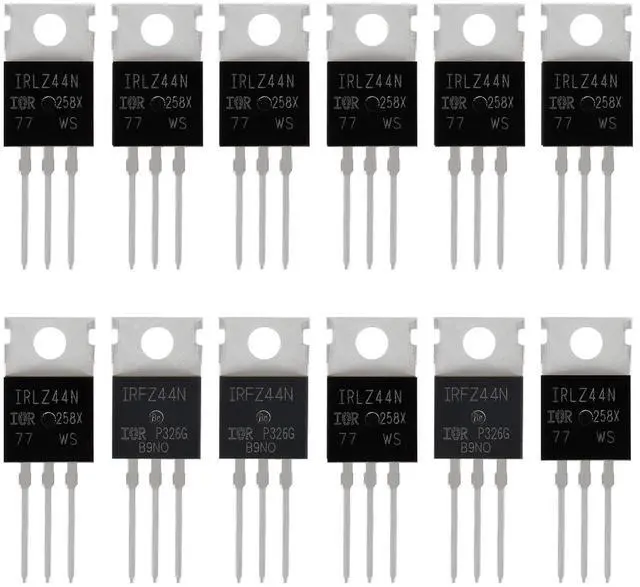

12Pcs IRLZ44N IRLZ44 MOSFET Transistors 47A 55V IRLZ44NPBF Threshold Voltage Logic Level Mosfet 47 Amp 55 Volt N-Channel MOS Field Effect Transistor
- Power MOSFET for fast switching applications, 55V, 47A
- IRLZ44N IRLZ44 MOSFET transistors number of pins: 3
- Rated Voltage: 55V ; Rated Current: 47A ; Dissipation Power: 110W
- IRLZ44N transistors polarity: N-Channel, fully avalanche rated
- Dynamic dv/dt rating, fast switching, temperature range: Min -55 °C | Max 175 °C
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Rated voltage: DC 55.0 V
Rated current: 47A
Number of channels: 1
Drain-source resistance: 22 m
Polarity: N-Channel
Power dissipated: 110 W
Drain-source voltage (Vds): 55.0 V
Drain-source breakdown voltage: 55 V
Gate-source breakdown voltage: ±16.0 V
Continuous drain current (Ids): 47.0 A
Rise time: 84 ns
Input capacitance (Ciss): 1700pF @25V(Vds)
Fall time: 15 ns
Operating temperature (Max): 175
Working temperature (Min):-55
Dissipated power (Max):110000 mW
Installation method: Through Hole
Number of pins: 3
Package include:
12 x IRLZ44N IRLZ44 MOSFET transistors
