    AMS1117-3.3V 3.3V DC-DC Step-Down Linear Voltage Regulator Module 800mA Fixed Output Power Supply Board with 2-Pin Header Pins Red LED Indicator and Double-Sided PCB 2.5 x 1.1 cm 10 Pieces

    Be the first to review this product...

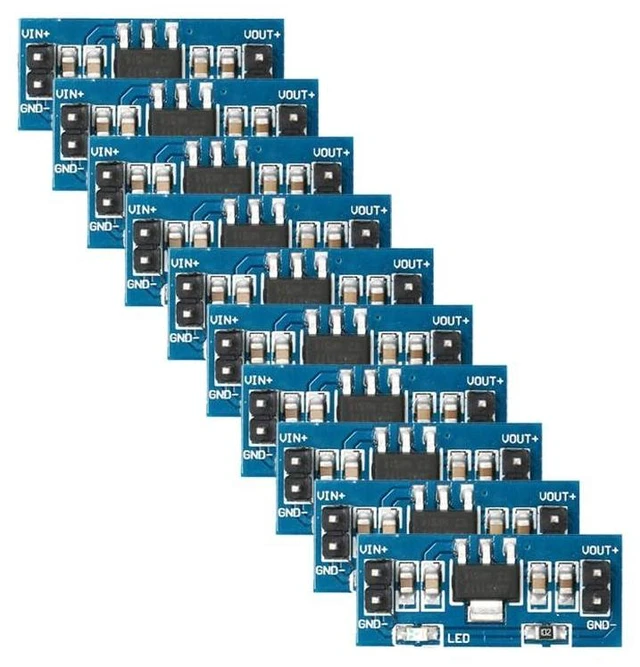

    • 10-piece set of AMS1117-3.3V power modules with a fixed 3.3V output version for regulated low-voltage electronic circuits.
    • DC-DC step-down linear voltage regulator module built with an AMS1117 regulator chip to provide regulated power output.
    • Accepts DC input from output voltage plus 1.45V up to 12V, supporting the required voltage difference for regulation.
    • Delivers a maximum output current of 800mA for the specified 3.3V fixed-output module version.

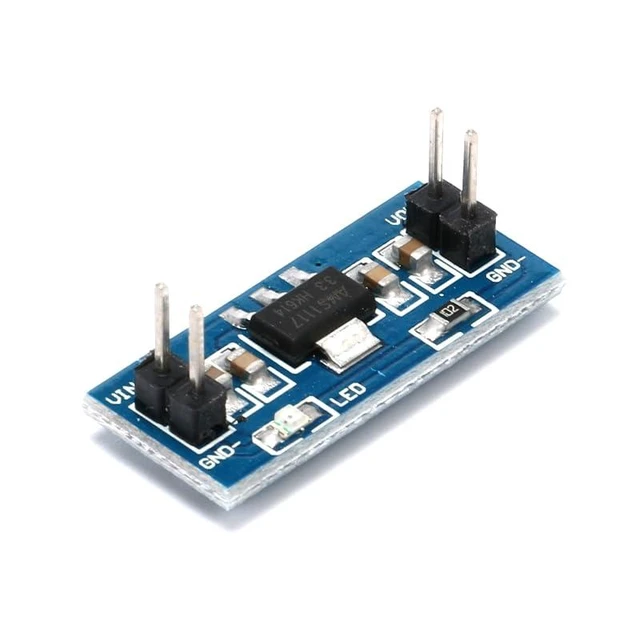

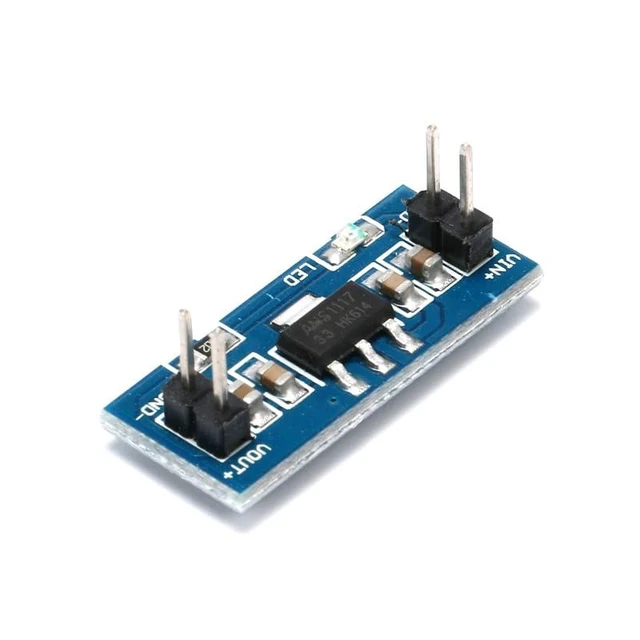

    • Uses 2-pin single-row header pins at both input and output for direct board-level power connections.

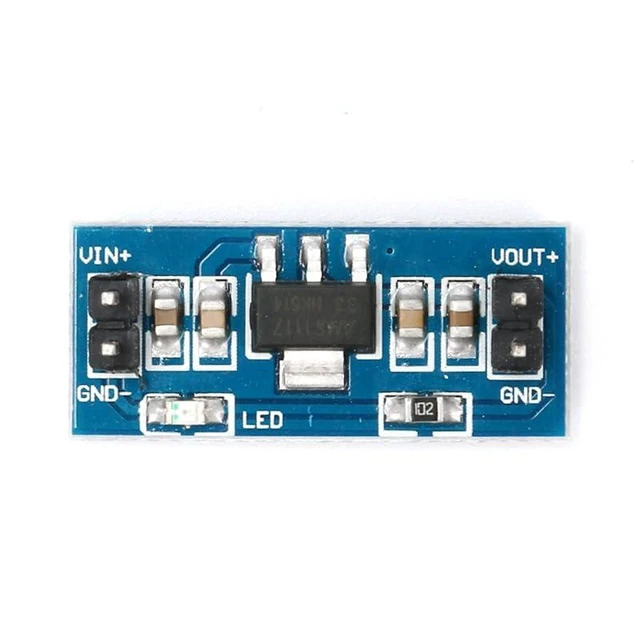

    • Clearly labeled terminals include VIN+ and GND for input, plus VOUT+ and GND for regulated output connections.

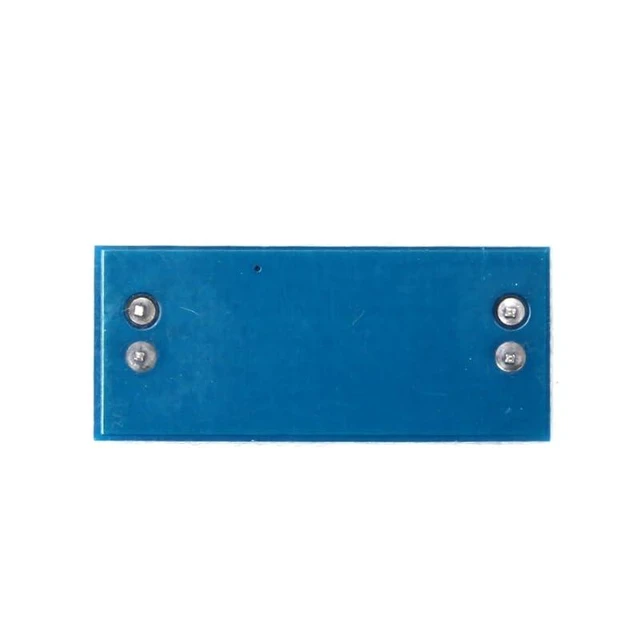

    • Features a red LED power indicator and double-sided PCB construction for visible power-status indication.
    • Compact PCB measures approximately 2.5 cm × 1.1 cm and weighs approximately 1.6 g.
    • Designed to provide low-voltage output for electronic circuits, microcontroller projects, sensor modules, DIY experiments, and development boards.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

    Product Description:

    AMS1117-3.3V power module for DC step-down voltage regulation. This fixed 3.3V output board is designed to supply regulated low-voltage power for electronic circuits, microcontroller projects, sensor modules, DIY experiments, and development boards.

    Core Selling Points:

    Built with an AMS1117 regulator chip for linear voltage regulation. The compact double-sided PCB includes a red power indicator LED and 2-pin single-row header connections for input and output. Its small board design supports installation in space-limited electronic projects.

    Technical Specifications:

    Model: AMS1117-3.3V. Module type: DC-DC step-down linear voltage regulator module. Fixed output voltage: 3.3V. Input voltage: output voltage + 1.45V to 12V DC. Maximum output current: 800mA. Connector type: 2-pin single-row header pins for input and output. PCB dimensions: approx. 2.5 cm × 1.1 cm. Weight: approx. 1.6 g. PCB design: double-sided board. Indicator: red LED.

    Package Contents:

    10 AMS1117-3.3V Power Modules.

    Before Purchase:

    Verify that the input voltage is within the specified range of output voltage + 1.45V to 12V DC. Pin definitions: VIN+ is input positive, VOUT+ is output positive, and GND is the common ground for input and output. Proper heat dissipation is recommended with higher input voltage or heavier loads.
