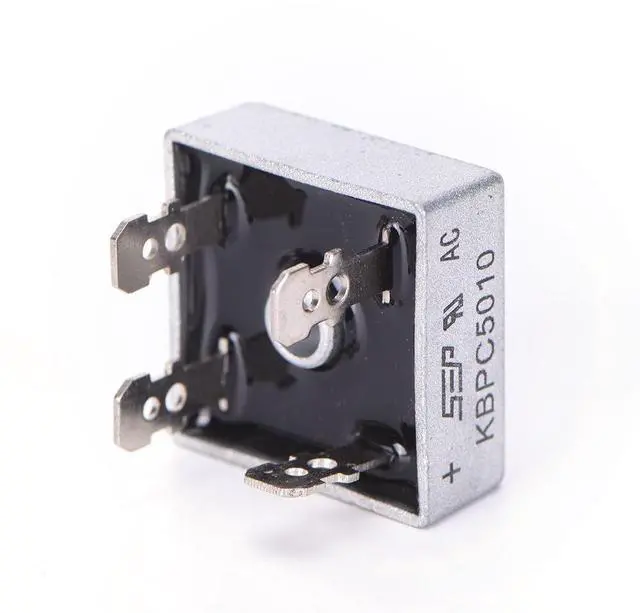

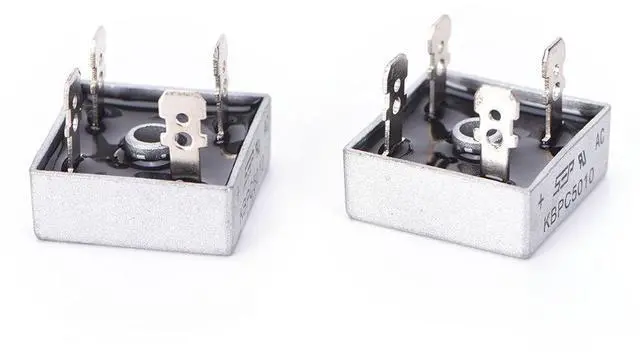

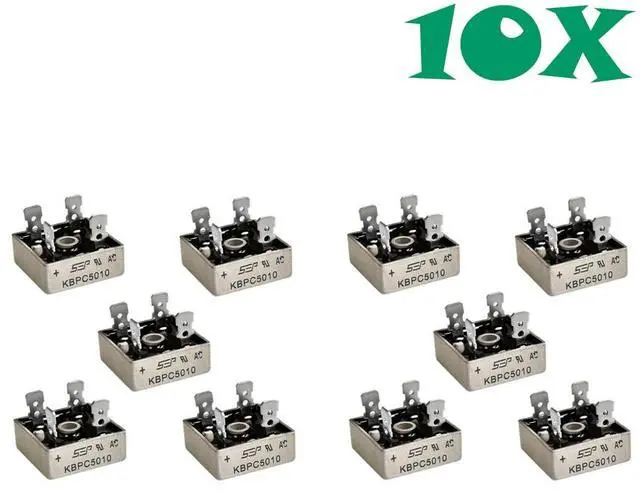

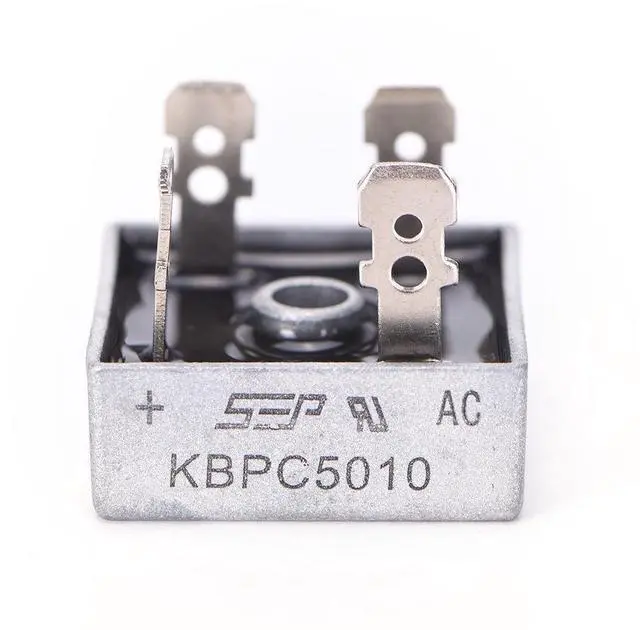

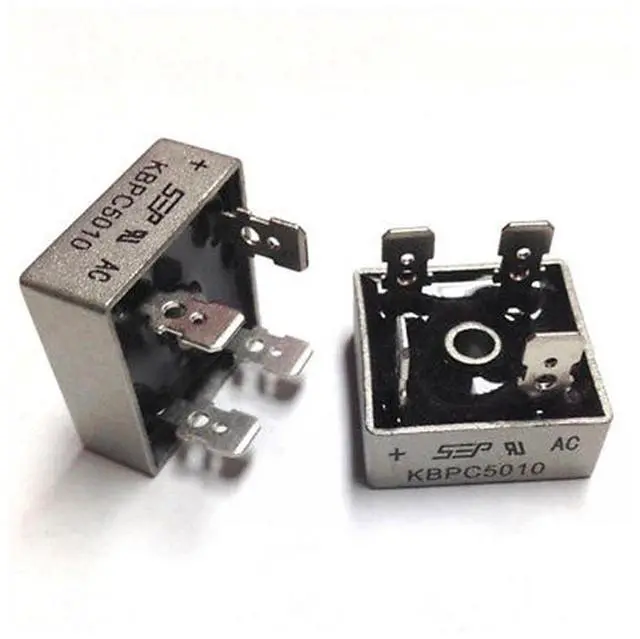

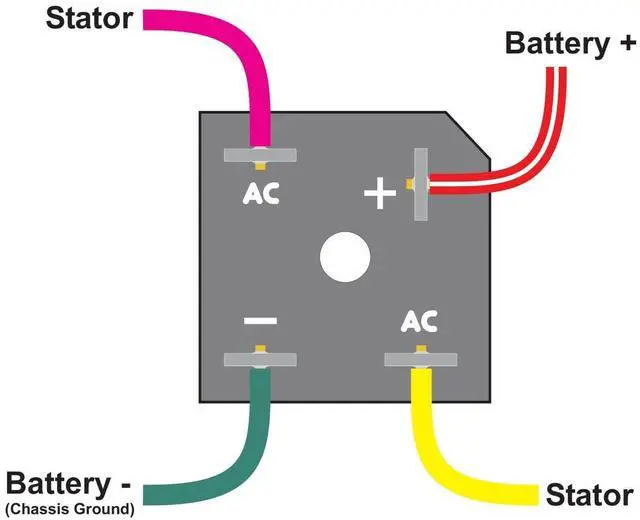

10Pcs KBPC5010 1000V 50A Metal Case Single Phase Diode Bridge Rectifier

The KBPC5010 is a robust and reliable single-phase bridge rectifier designed for converting AC voltage into DC voltage. Featuring a high surge current capability and an electrically isolated metal case, it ensures efficient heat dissipation and long-lasting performance. Ideal for various power supply applications, offers exceptional value and quality.

1. High Voltage and Current: 1000V maximum repetitive peak reverse voltage and 50A maximum average forward rectified output current.
2. Flammability Rating: The plastic material used carries Underwriters Laboratory flammability recognition 94V-0.
3. High Surge Current: Surge overload rating of 400A.
4. Electrically Isolated Metal Case: Provides maximum heat dissipation and allows for easy mounting to a chassis or heat sink.
5. Isolation Voltage: Case to terminal isolation voltage of 2500V.
6. Universal Terminals: Universal 4-way terminals, snap-on, wrap-around, solder, or P.C. Board mounting for flexible connection options.

Electrical Specifications:

1. Maximum repetitive peak reverse voltage (VRRM): 1000V
2. Maximum RMS bridge input voltage (VRMS): 700V
3. Maximum DC blocking voltage (VDC): 1000V
4. Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A
5. Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A
6. Typical thermal resistance per element (ReJA): 2.5 degrees C/W
7. Operating junction and storage temperature range: -55 to +150 C
8. Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V
9. Maximum DC reverse current at rated TA=25 C (IR): 10uA
10. DC blocking voltage per element TA=125 C (IR): 500uA

Mechanical Specifications:

1. Case: Metal case
2. Terminals: Plated .25"(6.35mm) Faston
3. Mounting Position: Bolt down with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency
4. Universal 4-way terminals, snap-on, wrap-around, solder or P.C. Board mounting
5. Mounting Torque: 20 in-lb max.
6. Weight: 1.12 Ounces / 32 grams (approx)
