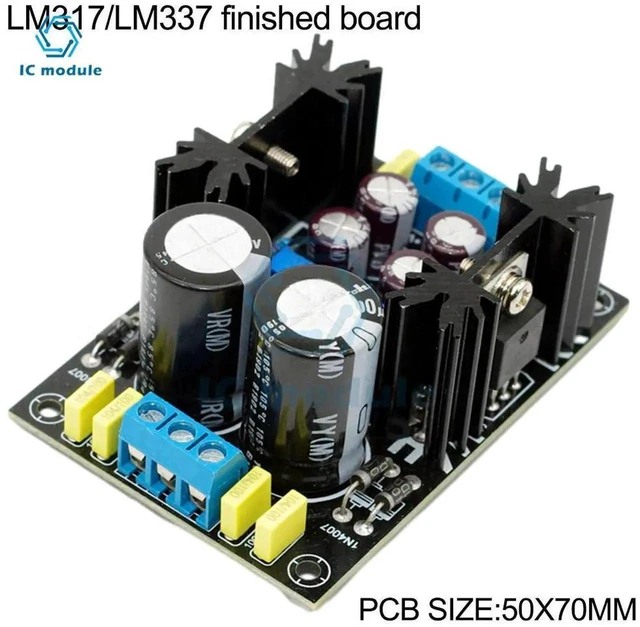

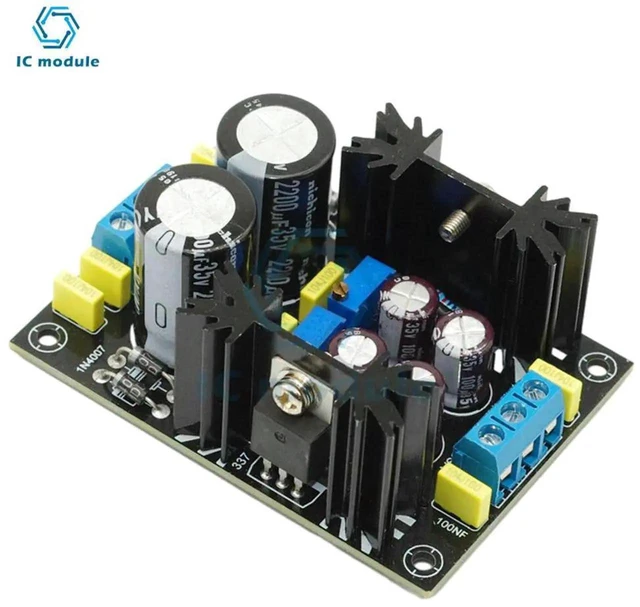

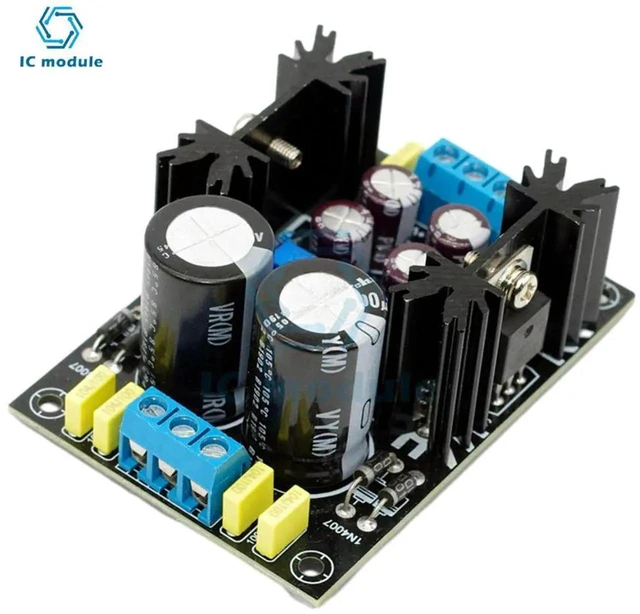

AJMRTC ACDC LM317 LM337 Adjustable Voltage Regulator PCB Board, Positive Negative Dual Output Power Supply Module, Convert AC to Dual DC 5V24V for Laboratory Circuit DIY Project
- Adopts classic LM317 positive voltage and LM337 negative voltage regulator chip, provides adjustable positivenegative dual DC power output.
- ACDC conversion design, inputs alternating current and outputs stable dualpolarity DC voltage, adjustable within 5V24V range.
- Complete presoldered PCB power board simplifies peripheral circuit welding, convenient for experimental testing and electronic DIY projects.
- Finetune potentiometer allows precise outputvoltage adjustment to match powersupply requirements of different analog circuits.
- Builtin basic overcurrent protection, widely used for opamp power supply, smallsignal circuit debugging and student laboratory experiments.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC LM317 LM337 positivenegative dual adjustable powersupply PCB board is a mature ACDC dualpolarity regulated power module. It uses LM317 for positive voltage regulation and LM337 for negative voltage regulation to generate stable symmetrical positive and negative DC power from AC input. Users can turn the onboard potentiometer to adjust output voltage continuously within 5V24V. This integrated PCB board omits complicated discretecomponent assembly work, directly meeting powersupply demands of operational amplifiers, analog signal circuits and teaching experimental equipment. Basic overcurrent protection reduces risks of chip damage caused by shortcircuit. Suitable for electronic lab testing, analogcircuit debugging and amateur DIY development. Please pay attention to heatdissipation installation for regulator chips under heavyload conditions; confirm inputoutput voltage difference to avoid overheating.
SpecificationsModule Type: ACDC Positive Negative Dual Adjustable Regulator PCB Board Regulator Chip: LM317 (Positive), LM337 (Negative) Output Mode: Dual Polarity Positive & Negative Adjustable DC Adjustable Output Voltage: 5V24V Adjustment Component: Onboard Potentiometer Application: OpAmp Power Supply, Circuit Experiment, Electronic DIY Protection: Basic Overcurrent Protection Form: Assembled PCB Power Supply Board
