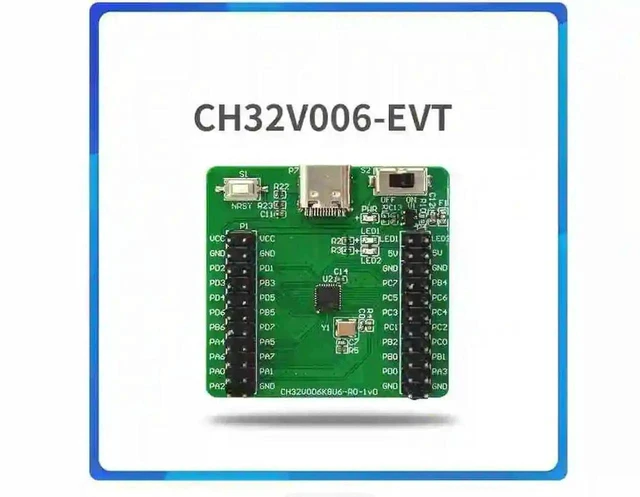

AJMRTC CH32V006K8U6EVTR0 Evaluation Board, WCH QingKe RISCV Core Dev Board, 48MHz 62KB Flash 8KB SRAM, 12Bit ADC OPA TouchKey for Embedded Prototype & RISCV Programming Learning
- 1. Evaluation board built on WCH CH32V006K8U6 MCU, QingKe 32bit RISCV2C core clocked at 48MHz, 62KB Flash and 8KB SRAM for embedded firmware development and algorithm validation
- 2. Rich onchip peripherals: 12bit highspeed ADC, builtin OPA operational amplifier, 7channel DMA, 2×USART, I2C, SPI, multitimers and 8channel capacitive touchkey interface
- 3. GPIO pins fully broken out through standard pin headers; onboard reset button and status LEDs; supports singlewire and twowire SWD debug for program download and troubleshooting.
- 4. Wide DC 25.5V power input, multiple lowpower sleepstandby modes; compatible with MounRiver Studio, PlatformIO, Zephyr RTOS and ArduinoCH32 toolchain.
- 5. Compact EVTR0 prototype board, great for IoT predevelopment, student RISCV handson training, electronic DIY and smallvolume embedded hardware verification projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

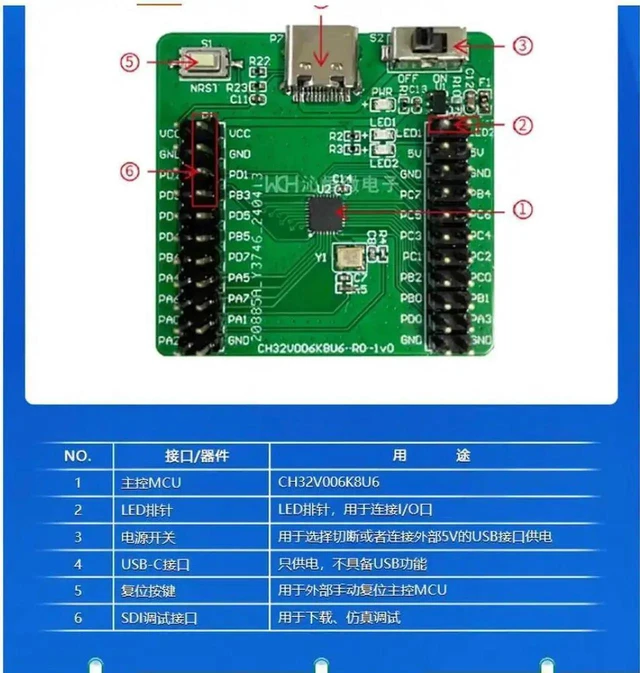

AJMRTC CH32V006K8U6EVTR0 evaluation board is a fullfeature prototype platform for WCH CH32V006 RISCV microcontroller. Powered by QingKe V2C 32bit RISCV core running up to 48 MHz, the MCU integrates 62 KB program flash and 8 KB SRAM to handle most lightweight embedded applications. It integrates abundant peripheral resources: 12bit highspeed ADC, internal OPA operational amplifier, 7channel DMA controller, multigroup timers, two USART ports, I2C, SPI and 8channel touchkey input. Most GPIO signals are exposed via pin headers for breadboard wiring. Onboard reset key and indicator LEDs simplify status observation. Singlewire / twowire SWD debug interface is reserved; external WCHLink or WCHLinkE debugger is required for firmware flashing and debugging. The board accepts widerange 25.5V DC supply and supports multiple lowpower modes. It works with MounRiver Studio, PlatformIO, Zephyr RTOS and ArduinoCH32 toolchain. Widely used for embedded function verification, IoT hardware preresearch, RISCV teaching practice and electronic hobbyist DIY projects. Please refer to official WCH datasheet for detailed pin definition.
Specifications- Brand: AJMRTC
- Board Model: CH32V006K8U6EVTR0
- Main Microcontroller: WCH CH32V006K8U6
- CPU Core: QingKe 32bit RISCV2C, Max 48 MHz
- Memory: 62 KB Flash, 8 KB SRAM
- OnChip Peripherals: 12bit ADC, OPA, 7Channel DMA, 2×USART, I2C, SPI, 8Channel TouchKey, MultiTimers, Watchdog
- Debug Interface: Singlewire / Twowire SWD (debugger sold separately)
- Power Supply: DC 2V5.5V Wide Voltage
- OnBoard Hardware: Reset Button, Status Indicator LEDs, Pin Headers
- Supported IDE & RTOS: MounRiver Studio, PlatformIO, Zephyr RTOS, ArduinoCH32
- Application: Embedded Prototype Verification, IoT Development, RISCV Learning, Electronic DIY Project
- Note: External WCHLink / WCHLinkE debugger required for downloading firmware
