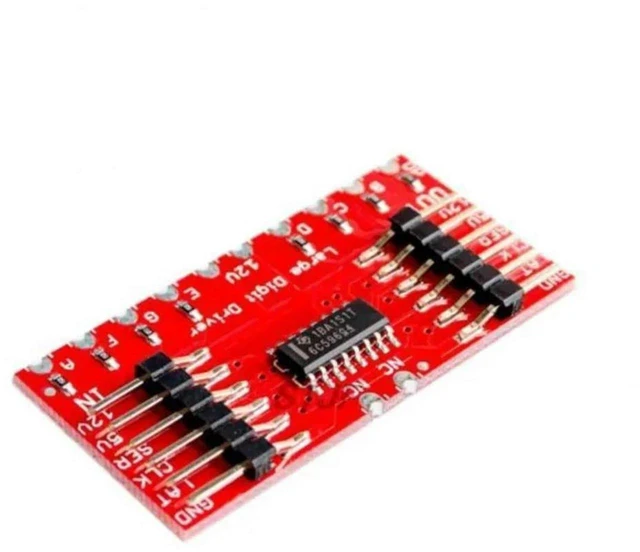

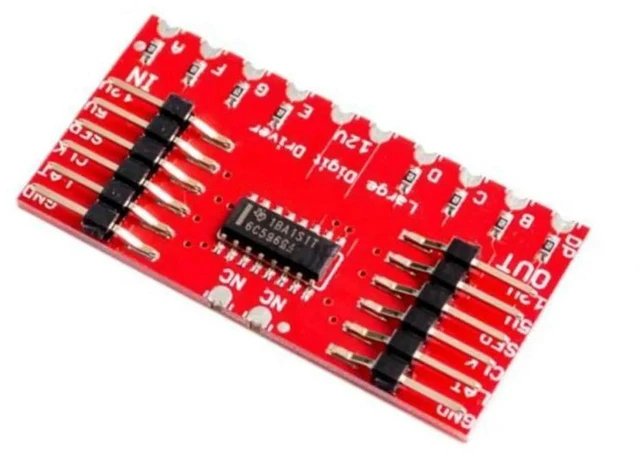

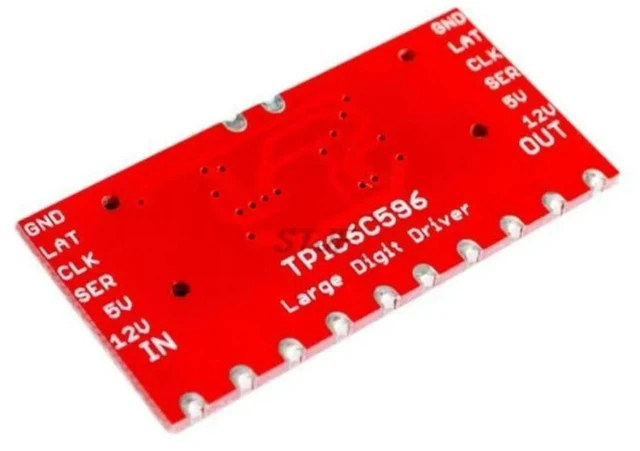

AJMRTC TPIC6C596 8-Bit Shift Register IC Chip, Power Logic Shift Register for 7-Segment LED Display Driving, High Current Output for Digital Tube Control Electronic DIY Projects
- - TPIC6C596 is an 8-bit power logic shift register, ideal for driving 7-segment LED digital tubes and LED arrays.
- - High-current open-drain outputs, capable of directly powering 7-segment displays without extra driver transistors.
- - Serial input, parallel output structure, saves MCU IO pins to simplify your microcontroller circuit design.
- - Built-in latch and serial data output pin, supports cascading multiple chips for multi-digit 7-segment screens.
- - DIP/SMD available, widely used for digital counters, timers, scoreboards and Arduino LED display projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC TPIC6C596 is an 8-bit power shift register specially designed for LED and 7-segment digital tube driving. It receives serial data and converts it into parallel output signals. Its high-current open-drain output can directly drive 7-segment LED displays, removing the need for additional drive transistors and reducing peripheral components. The chip has a data latch function and a serial out pin, so multiple TPIC6C596 chips can be cascaded together to control multi-digit 7-segment screens using only a few MCU IO pins. This chip is commonly used for digital counters, timers, industrial digital displays, student electronic experiments and embedded LED indicator projects.
- Brand: AJMRTC
- Part Number: TPIC6C596
- Type: 8-Bit Power Logic Shift Register
- Output: High-Current Open-Drain
- Core Function: 7-Segment LED Digital Tube / LED Array Driving
- Communication: Serial Input, Parallel Output, Cascadable
- Feature: Built-in Data Latch, Saves MCU IO Resources
- Application: Digital Counter, Timer, LED Display, Electronic DIY
