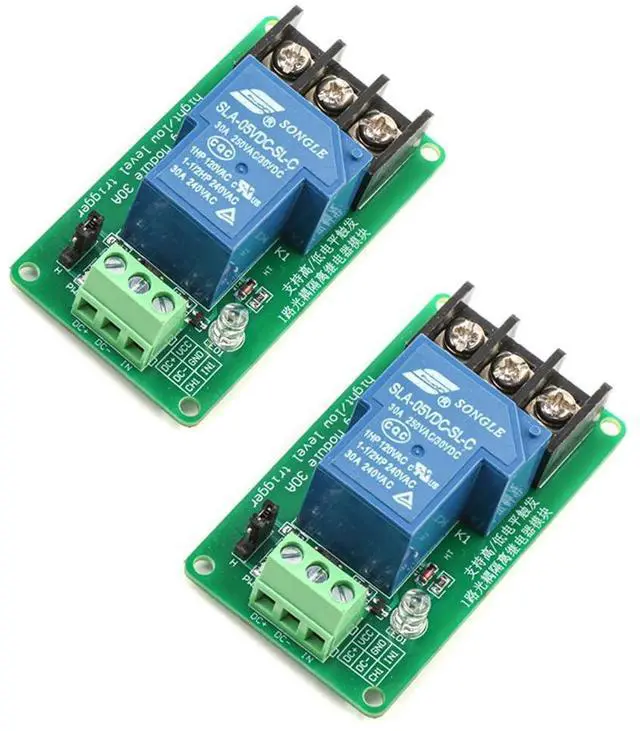

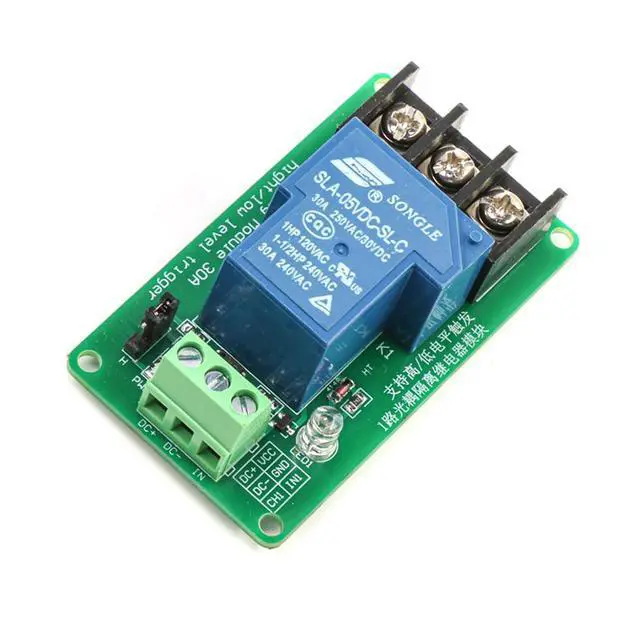

2pcs 5V 30A One Channel Relay Module Optocoupler Isolation High and Low Trigger 5V

Description:
1. This relay module uses high quality 30A relay, normally
open interface maximum load: AC 250V/30A, DC30V/30A.
2. It use optocoupler isolation, strong drive capability, stable performance; trigger current 5mA.
3.

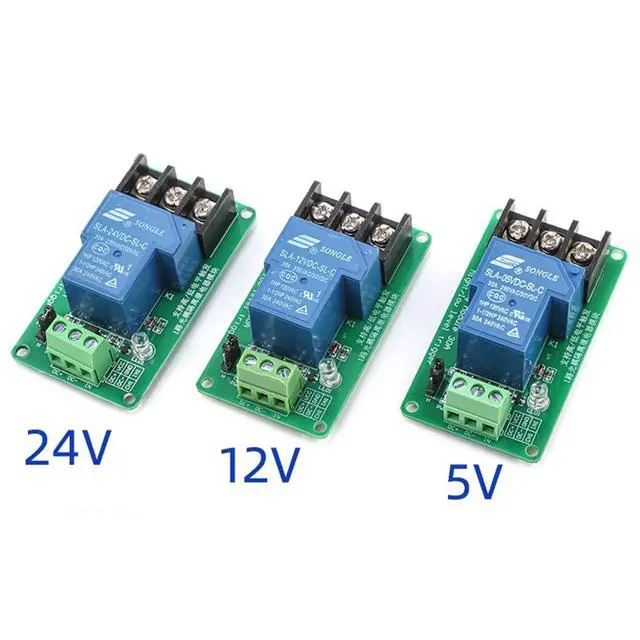

Voltage: 5V, 12V, 24V optional
4. Use the jumper wire to set high or low trigger
5. Friendly interface design, all interfaces can be directly connected through the terminal leads, very convenient.
Parameters: Relay
voltage: 5V
Quiescent current: 5mA
Maximum current: 190mA
Trigger current: 2-4mA
Relay voltage: 12V
Quiescent current: 5mA
Maximum current: 80mA
Trigger current: 2-4mA
Relay voltage: 24V
Quiescent current: 5mA
Maximum current: 50mA
Trigger current: 2-4mA
Wiring: 1.
DC +: DC power supply positive (trigger terminal voltage positive) 2.
DC-: DC power supply negative (trigger terminal voltage negative) 3.
IN: Signal trigger terminal (the default trigger voltage and power supply the same)
4. High/Low level trigger mode selection, as shown, jumper and L-side connection, IN-side low-level trigger, connected with the H-side high trigger 5.
NC (NC): Normally closed
6.
Common (COM): Common 7.
NO (NO): Normally open
Package included: 2 x 30A One Channel Relay Module (5V 12V 24V Optional) (
Note: Pack of two, it means you will get two SAME, not mixed types)
