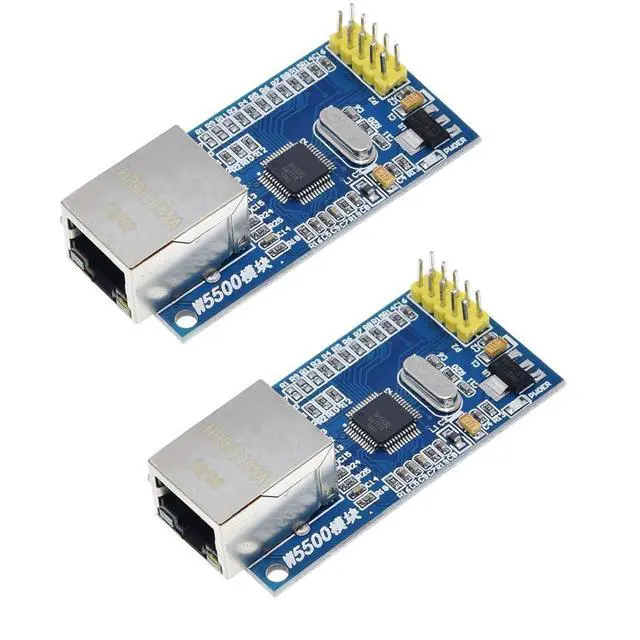

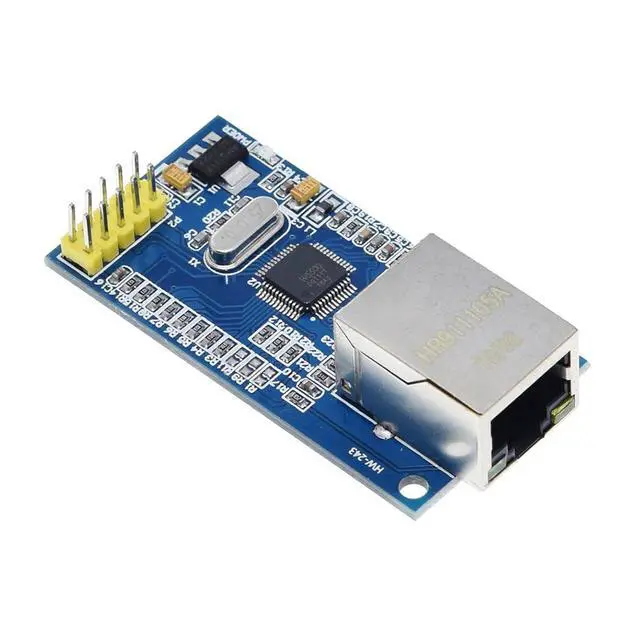

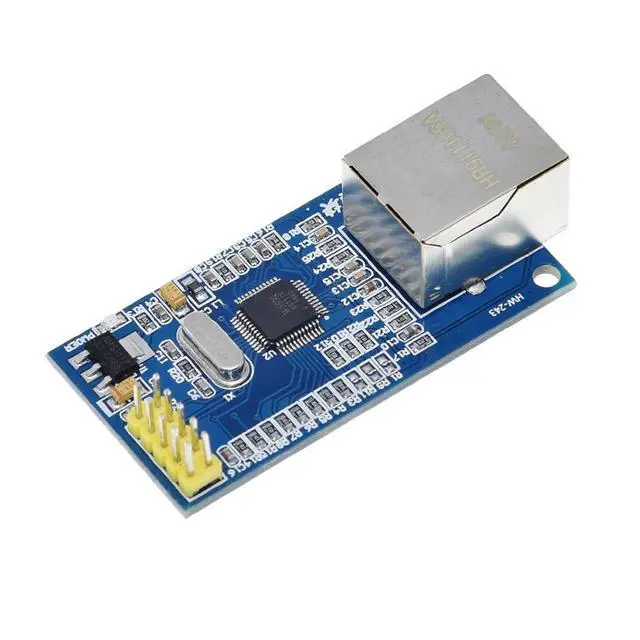

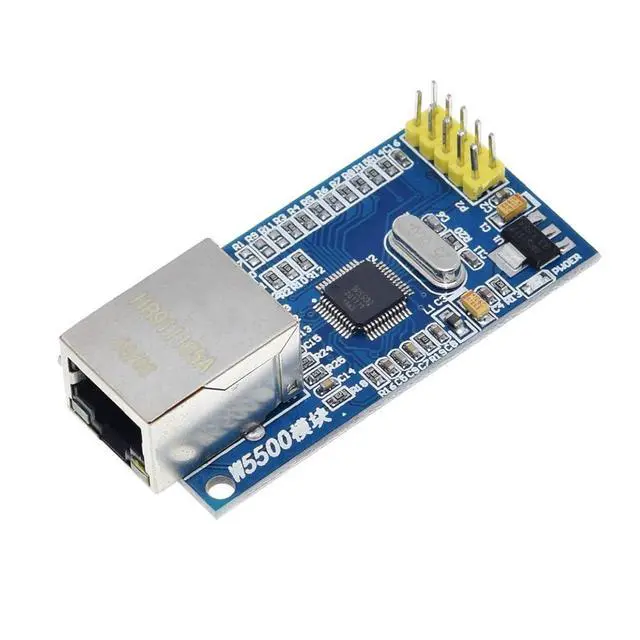

2pcs W5500 Ethernet LAN Network Module Support TCP/IP51/STM32 Microcontroller Program with 32k Bytes SPI 3.3V/5V Over W5100
- W5500 Ethernet LAN Network Module Support TCP/IP51/STM32; Supports 8 independent sockets simultaneously, Wake on LAN over UDP; Supports High Speed Serial Peripheral Interface, Internal 32Kbytes Memory for TX/RX Buffers
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description: Supports
Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE Supports 8 independent sockets simultaneously Supports Power off mode Supports Wake on LAN over UDP Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3) Internal 32Kbytes Memory for TX/RX Buffers 10BaseT/100BaseTX Ethernet PHY embedded Supports Auto Negotiation (Full and half duplex, 10 and 100-based) Not supports IP Fragmentation 3.3V operation with 5V I/O signal tolerance LED outputs (Full/Half duplex, Link, Speed, Active) 48 Pin LQFP Lead-Free Package (7x7mm, 0.5 mm pitch)
Chip: W5500 Supports both 3.3V & 5V.
Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE 10BaseT/100BaseTX Ethernet PHY embedded Supports automatic response (full duplex / half duplex mode) SPI interface (SPI MODE 0, 3), convenient connection with
MCU Size: 55mm x 28mm
Package includes: 2 x W5500 Ethernet LAN Network Module
Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE Supports 8 independent sockets simultaneously Supports Power off mode Supports Wake on LAN over UDP Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3) Internal 32Kbytes Memory for TX/RX Buffers 10BaseT/100BaseTX Ethernet PHY embedded Supports Auto Negotiation (Full and half duplex, 10 and 100-based) Not supports IP Fragmentation 3.3V operation with 5V I/O signal tolerance LED outputs (Full/Half duplex, Link, Speed, Active) 48 Pin LQFP Lead-Free Package (7x7mm, 0.5 mm pitch)
Specifications
: MainChip: W5500 Supports both 3.3V & 5V.
Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE 10BaseT/100BaseTX Ethernet PHY embedded Supports automatic response (full duplex / half duplex mode) SPI interface (SPI MODE 0, 3), convenient connection with
MCU Size: 55mm x 28mm
Package includes: 2 x W5500 Ethernet LAN Network Module
