3PCS 3S 12V 8A Lithium Battery Protection Board,10.8V 11.1V 12.6V PCB BMS Overcharge Over-Discharge Protection Board Module for 3 Li-ion Cell Pack

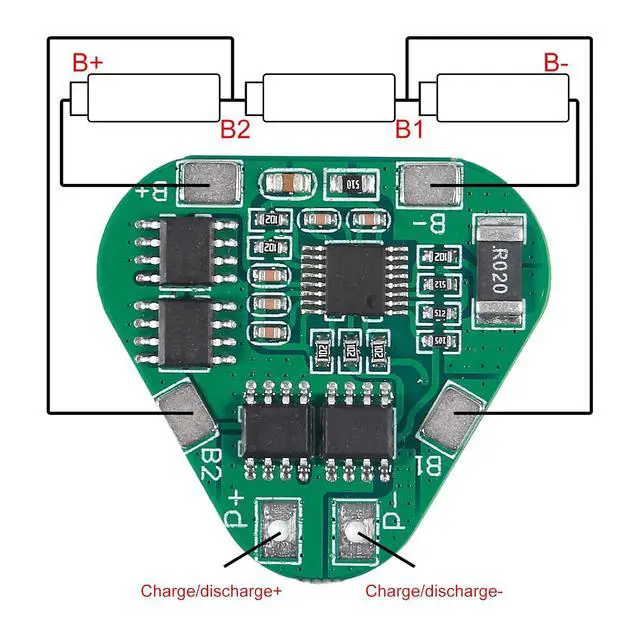

- High Quality; Compact size and lightweight;High-accuracy voltage detection circuit; fine workmanship and durable; stable performance.; Multiple Protections: Short circuit protection, overcharge protection, over-discharge protection and over current protection.; For lithium battery operating voltage: 10.8V~12.6V; LOW STANDBY CURRENT: MOS transistor can control the battery.; Applications:It can applicable for:10.8V(3.6V*3S) lithium battery & packs; 11.1V(3.7V*3S) lithium battery & packs; 12.6V(4.2V*3S) lithium battery & packs;Cylindrical lithium battery (Li-ion); Prismatic Lithium polymer battery (Li-Po) Could also work for 3S2P(6 cells), 3S3P(9 cells),3S4P(12 cells) etc.; Notice:Please strictly according to the diagram wiring to avoid possible damage to the chip.(Connect wires refer to the "wiring diagram"(NO.5 picture). After connection, it need to charge activation first, then will have the output.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
3S 4A Li-ion Li-Po Cylindrical prismatic Lithium polymer battery 3 cell PCB module board short circuit overcharge protection BMS

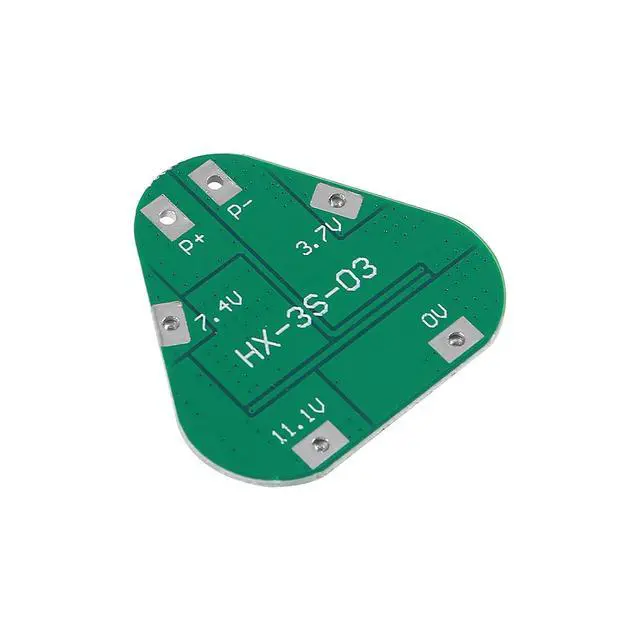

Model: HX-3S-03 For lithium battery operating voltage: 10.8V ~ 12.6V
Overcharge voltage range: 4.25 - 4.35 v± 0.05 v
Over-discharge voltage range: 2.3 - 3.0 v± 0.05 v
Upper limit working current: 6-8A
Working temperature: -40---+50 °C
Upper limit instantaneous current: 9-10A
Storage conditions: -40-- +80 °
C Quiescent current: less than 30uA
Internal resistance: less than 100m

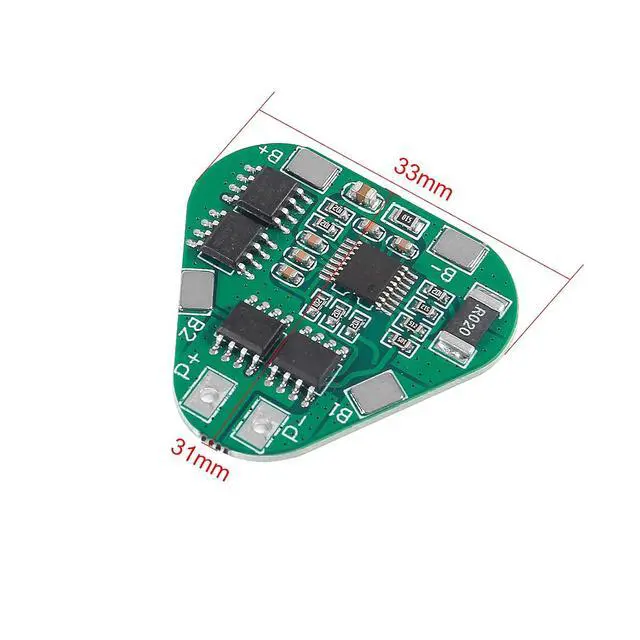

Size: 30*30* 2.8 mm
Protections: Short circuit protection, overcharge protection, over-discharge protection and over current protection.
Short circuit protection: protection, delay self-recovery.
Applicable for: 10.8V ( 3.6V *3S) lithium battery & packs 11.1V ( 3.7V *3S) lithium battery & packs 12.6V ( 4.2V *3S) lithium battery & packs Cylindrical lithium battery (Li-ion) Prismatic Lithium polymer battery (Li-Po) Could also work for 3S2P (6 cells), 3S3P (9 cells), 3S4P (12 cells) etc.

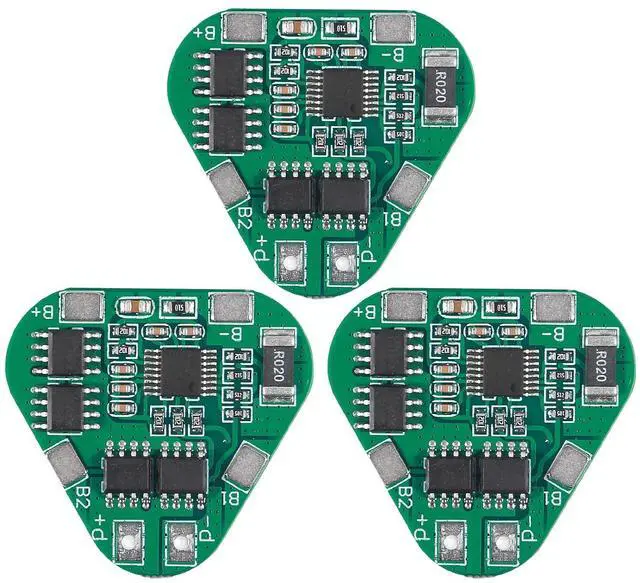

Package Includes: 3 x Lithium Battery Protection Board

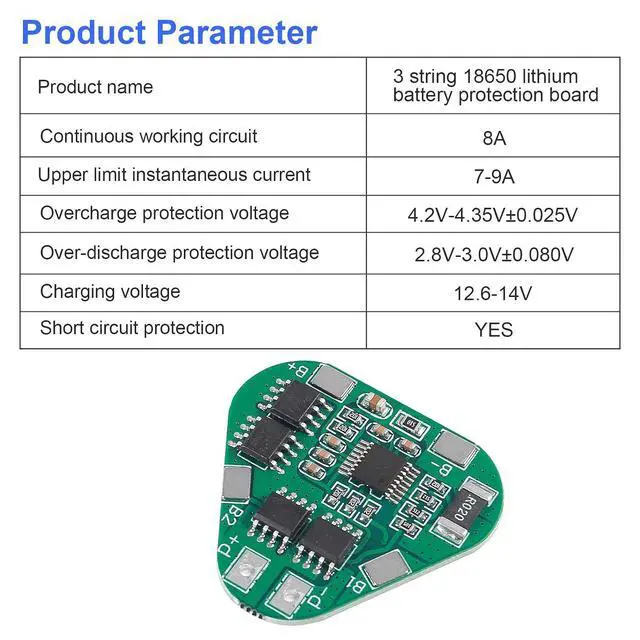

Specifications
:Model: HX-3S-03 For lithium battery operating voltage: 10.8V ~ 12.6V
Overcharge voltage range: 4.25 - 4.35 v± 0.05 v
Over-discharge voltage range: 2.3 - 3.0 v± 0.05 v
Upper limit working current: 6-8A
Working temperature: -40---+50 °C
Upper limit instantaneous current: 9-10A
Storage conditions: -40-- +80 °
C Quiescent current: less than 30uA
Internal resistance: less than 100m
Size: 30*30* 2.8 mm
Protections: Short circuit protection, overcharge protection, over-discharge protection and over current protection.
Short circuit protection: protection, delay self-recovery.
Applicable for: 10.8V ( 3.6V *3S) lithium battery & packs 11.1V ( 3.7V *3S) lithium battery & packs 12.6V ( 4.2V *3S) lithium battery & packs Cylindrical lithium battery (Li-ion) Prismatic Lithium polymer battery (Li-Po) Could also work for 3S2P (6 cells), 3S3P (9 cells), 3S4P (12 cells) etc.
Package Includes: 3 x Lithium Battery Protection Board
