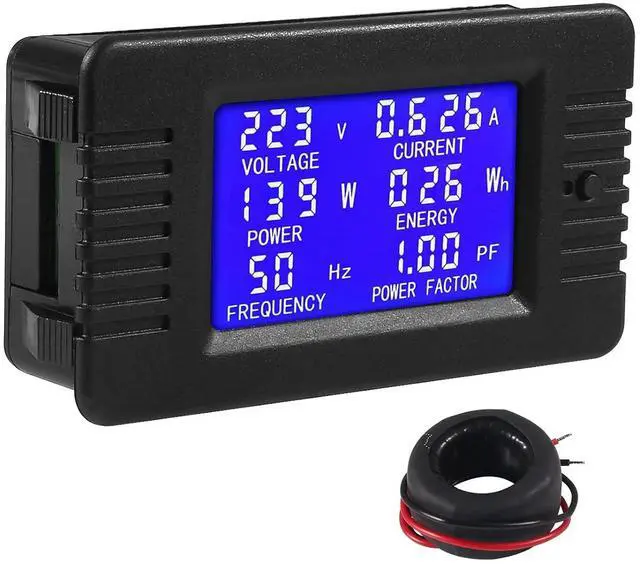

AC Digital Meter,AC 80-260V 100A LCD Display Digital Current Voltage Power Energy Frequency Power Factor Multimeter Ammeter Voltmeter 100A(Solid Core Current Transformer)

Functions:
1. Overload alarm function.
2. Settable power alarm value.
3. Power off data storage function.
4. Backlight on/off function.
5. Electric quantity reset function.

Specifications

: Working
Voltage: 80 ~ 260VAC
Voltage Test Range: 80 ~ 260VAC
Operating Frequency: 45/65Hz
Rated Power: 100A/22000W
Measurement Accuracy: 1%
Operating Temperature Range: 14~140/-10~60

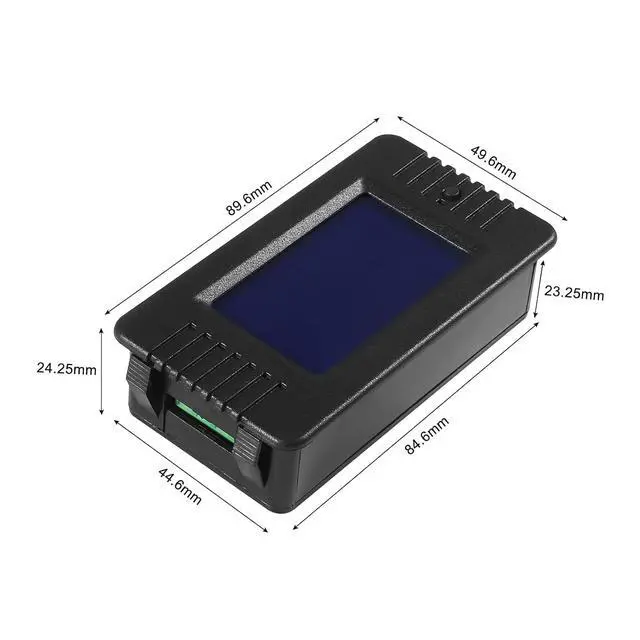

Dimension: 90x 49.6 x25mm/ 3.54 x 1.95 x 0.98 inch

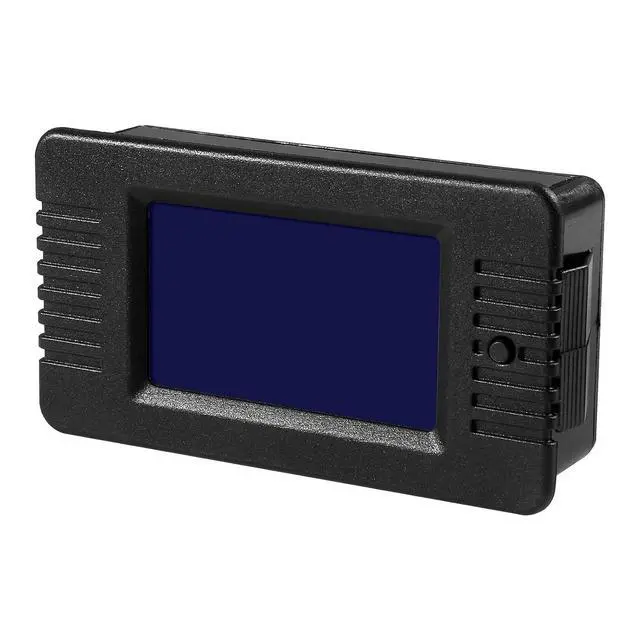

Screen size: 51x30mm/2x 1.18 inch
CT Inner diameter: 15mm/ 0.6 ''
Measuring Range:
Voltage: 80~260VAC
Current: 0~100A
Power: 0~22kW
Energy: 0~999kWh
Frequency: 45~65Hz
Power Factor: 0~1PF
Note:
1. Please make sure the AC input is Pure Sine Wave. (Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converted from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave. Otherwise the meter can be burnt or melted.

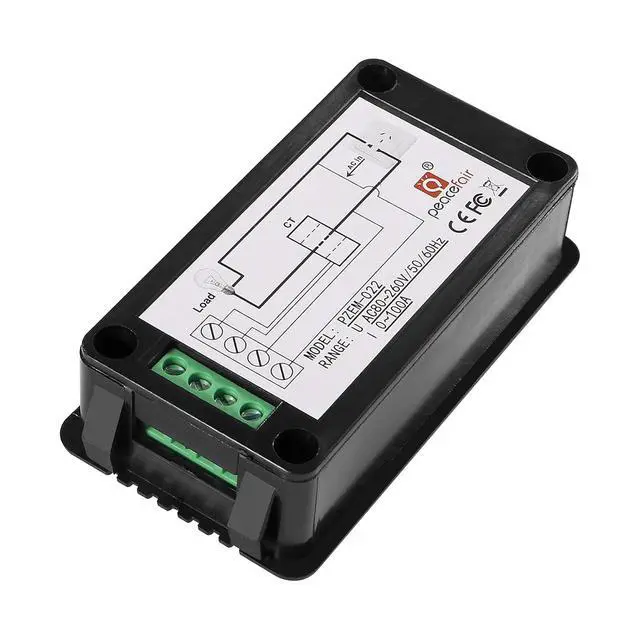

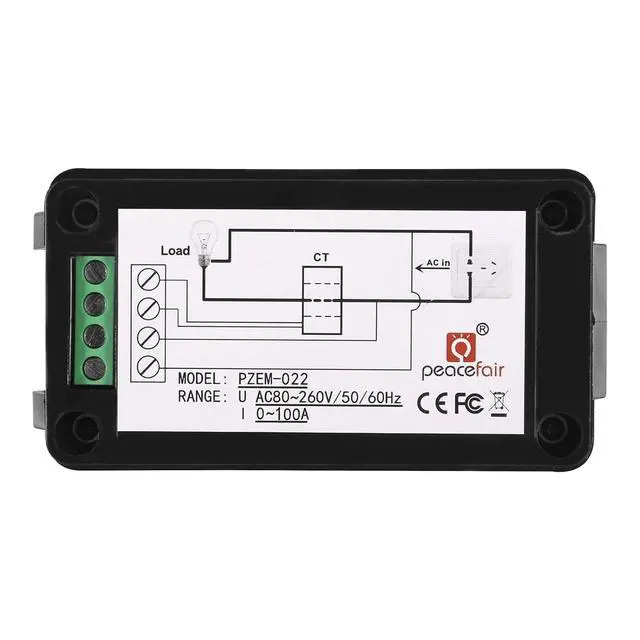

2. Wiring order cannot be wrong.
3. Applied load should not exceed the rated power.
4. This meter is used for single-phase power with one hot line and one neutral line. If you want to measure the circuit with 2 hot lines, you will need 2 meters, one for each line.
5. This module is suitable for indoor applications, please do not use outdoors.

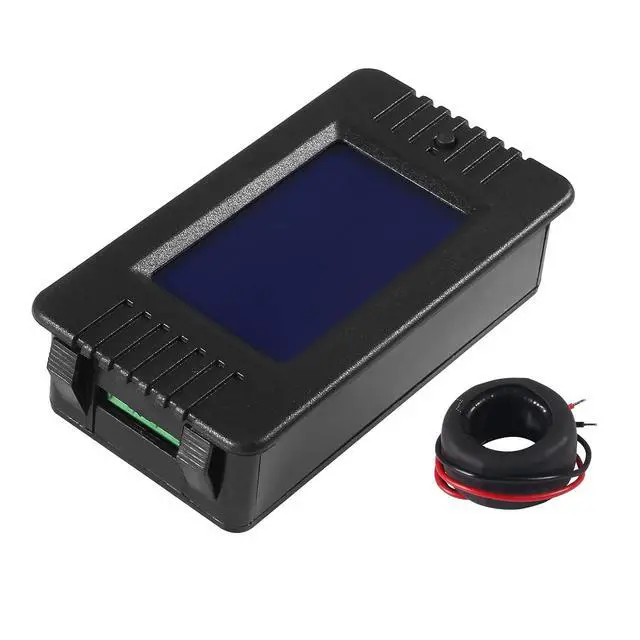

Package Included: 1x AC Digital Meter 1x 100A Split Core Current Transformer
