New Fluke 1503 Digital Insulation Resistance Tester F1503 megger meter/da
- Specifications
- Maximum insulation resistance measured1T for Fluke 1550C; 2T for Fluke 1555Test voltages250V, 500V, 1,000V, 2,500V, 5,000V; also 10,000V for Fluke 1555Maximum leakage current measured2mAMaximum capacitance measured20FMaximum AC and DC voltage measured600VInstallation ratingCAT IV, 600V; CAT III, 1,000VStandards metEN safety standards 61010-1 and 61557; CE marking; CSA and TÜV certificationPowerRechargeable 12V lead-acid batteryWeight3.6kg/7.94 lb.Dimensions (H x W x D)*170 x 242 x 330mm/6.7 x 9.5 x 13 inches
Overview
Specs
Reviews
Features:
* 0.1 M to 2000 G insulation test
* Insulation test voltage: 500 V and 1000 V, for a variety of applications
* The remote test probe makes it easy to perform repeated tests and perform tests in inaccessible locations
* Live circuit detection, if the detected voltage is greater than 30 V, the test ban to improve the protection of personnel
* Capacitive voltage automatic discharge function and improve the protection of personnel
* AC / DC voltage: 0.1 V to 600 V
* 200 mA Continuity measurement
* Resistance: 0.01 to 20.00 K
* Auto off function to save battery power
* CAT IV 600 V measurement level of security, improved protection of personnel

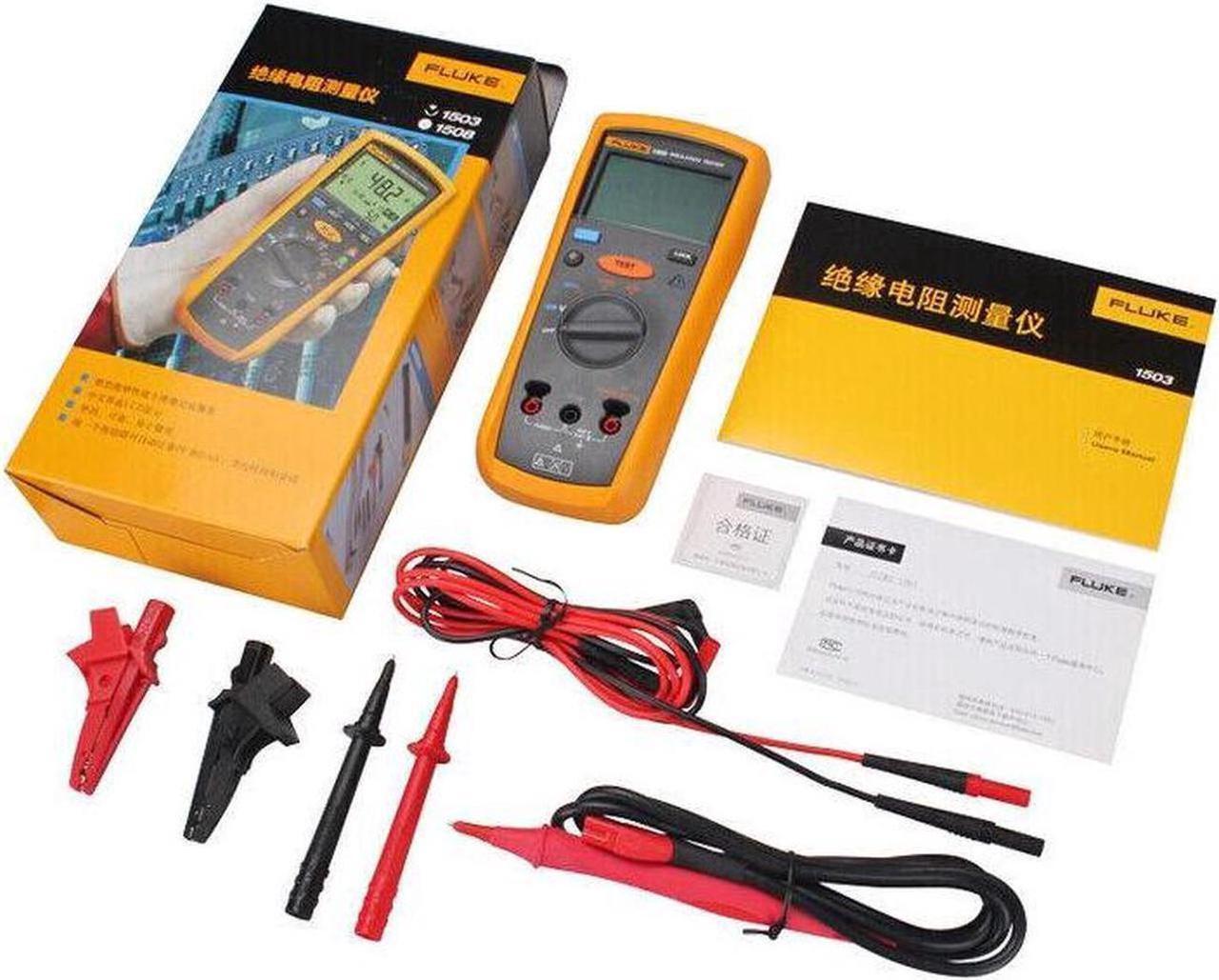

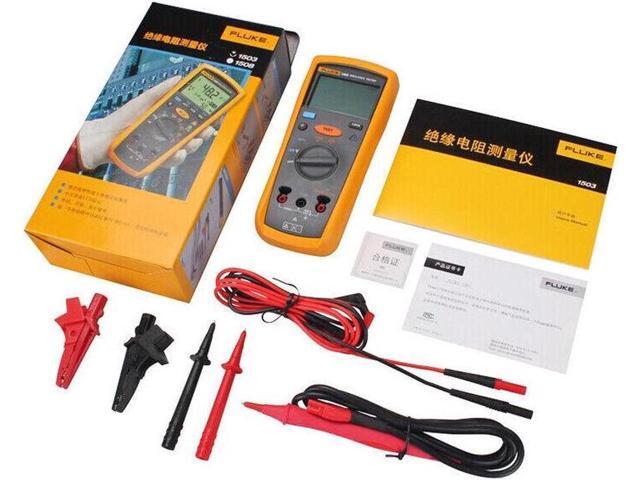

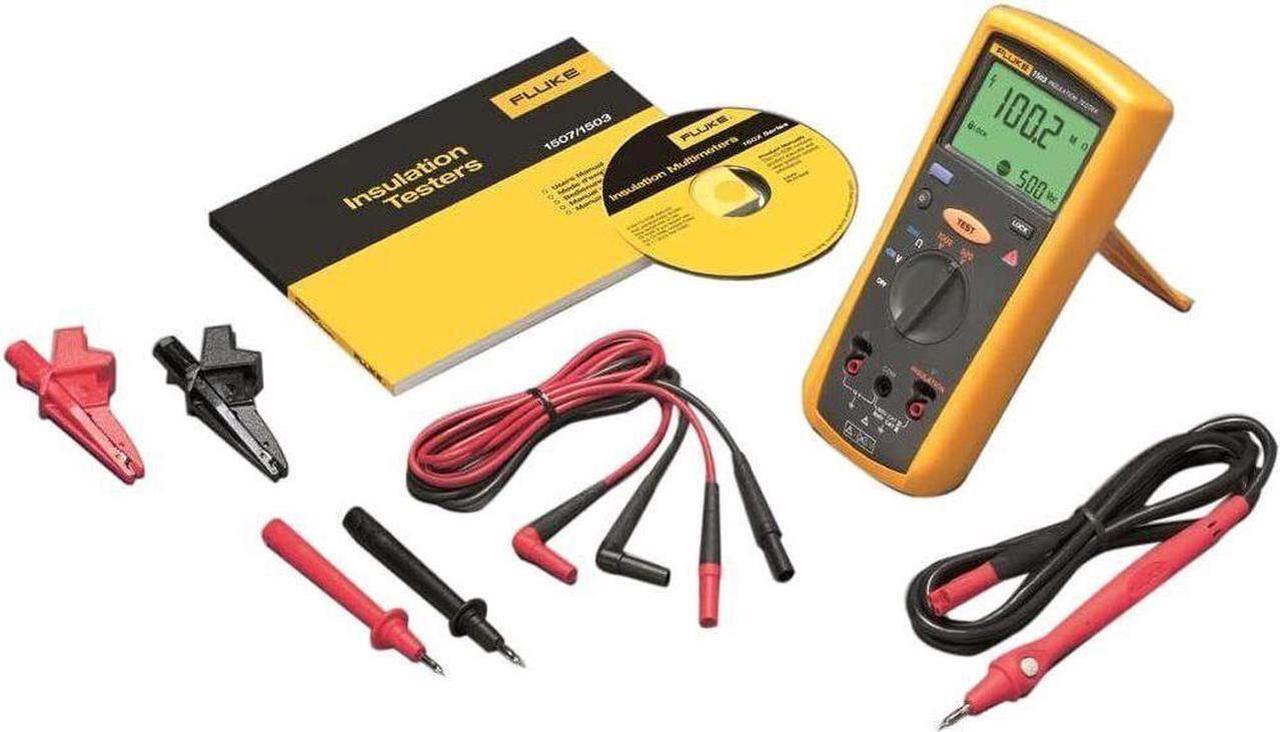

* Included Accessories: Remote probe, test leads and probes, alligator clips
* Install the optional Fluke TPAK magnetic suspension system so you can free up your hands for other work
* 4 AA alkaline batteries (NEDA 15 A or IEC LR6), at least 1000 insulation tests can be (not include)
* 0.1 M to 2000 G insulation test
* Insulation test voltage: 500 V and 1000 V, for a variety of applications
* The remote test probe makes it easy to perform repeated tests and perform tests in inaccessible locations
* Live circuit detection, if the detected voltage is greater than 30 V, the test ban to improve the protection of personnel
* Capacitive voltage automatic discharge function and improve the protection of personnel
* AC / DC voltage: 0.1 V to 600 V
* 200 mA Continuity measurement
* Resistance: 0.01 to 20.00 K
* Auto off function to save battery power
* CAT IV 600 V measurement level of security, improved protection of personnel
* Included Accessories: Remote probe, test leads and probes, alligator clips
* Install the optional Fluke TPAK magnetic suspension system so you can free up your hands for other work
* 4 AA alkaline batteries (NEDA 15 A or IEC LR6), at least 1000 insulation tests can be (not include)
