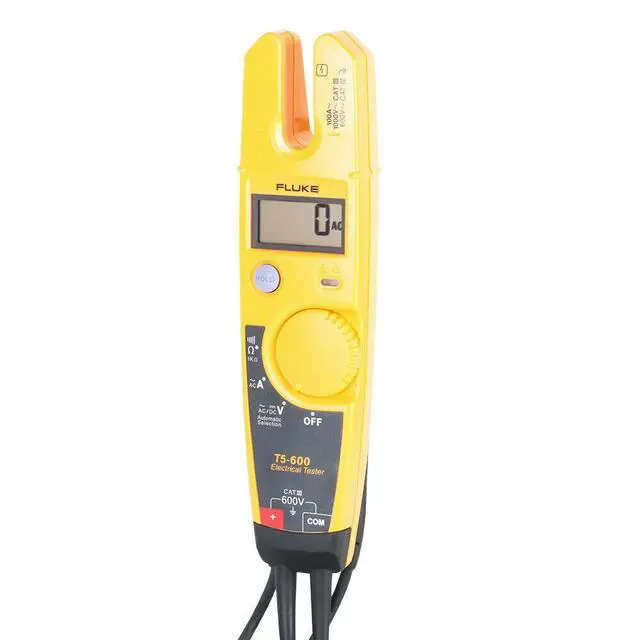

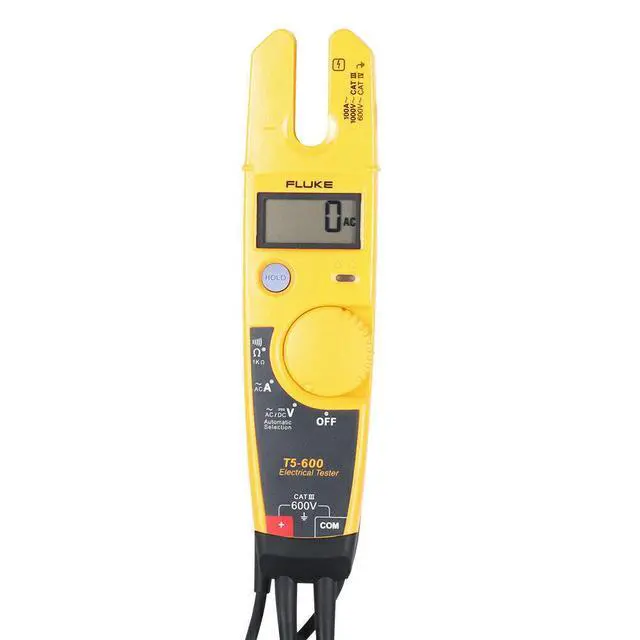

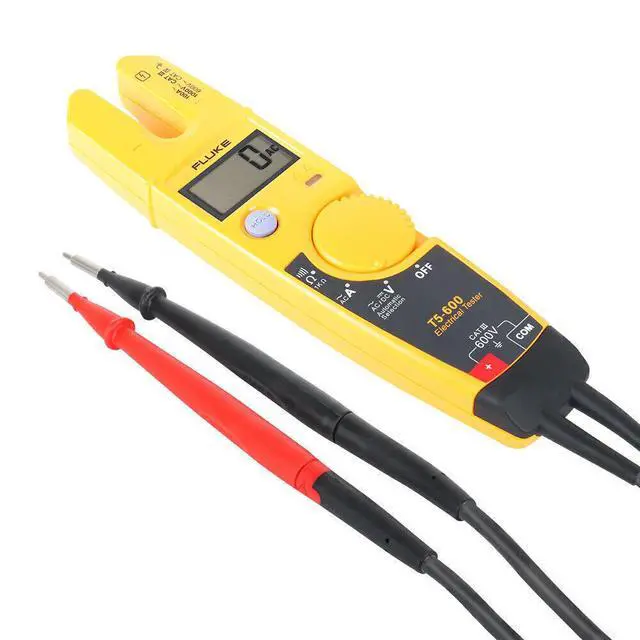

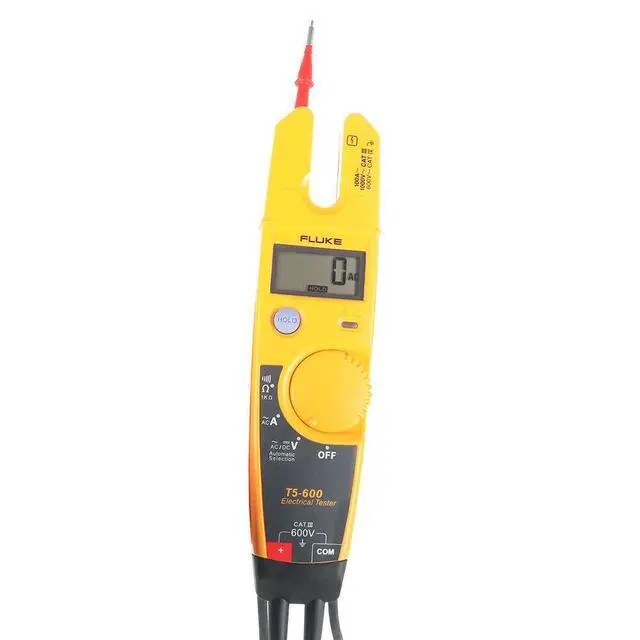

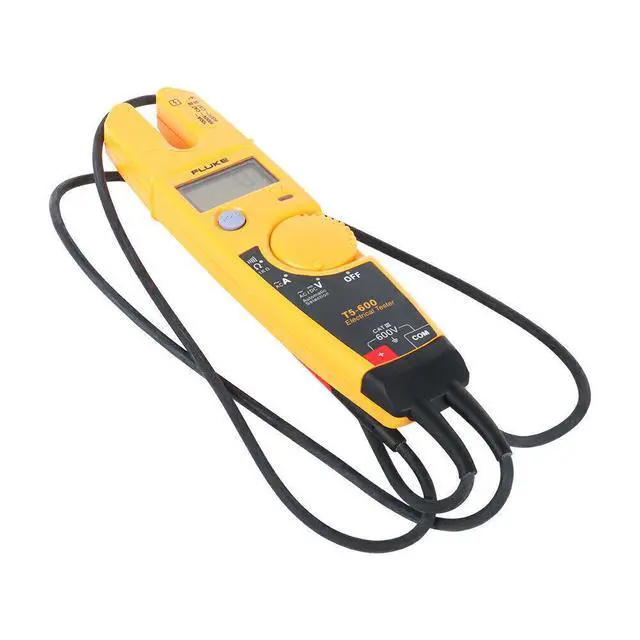

Fluke T5-600 Clamp Continuity Current Electrical Tester Clamp meter
- Feature:
- Automatically measures volts ac and volts dc with precise digital resolution
- Displays resistance to 1000
- Easy and accurate OpenJaw current measurement
- Continuity beeper
- Compact design with neat probe storage
- Rugged enough to withstand a 10-foot (3m) drop
- Detachable SlimReach probe tips are customized for national electrical standards
- Test leads accept Fluke accessory test clips
- Available in 600V and 1000V models
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
overview
The Fluke T5 Electrical Testers let you check voltage, continuity and current with one compact tool.
With the T5, all you have to do is select volts, ohms, or current and the tester does the rest. OpenJaw current lets you check current up to 100A - without breaking the circuit.

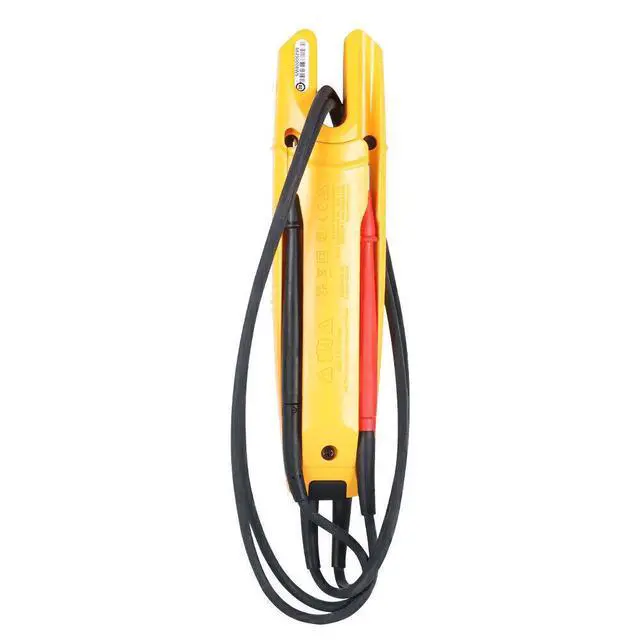

Its tough test leads stow neatly in the back of the tester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach test probes are customized for national electrical standards.
The test leads accept optional accessories such as clips and specialty probes.
The optional H5 holster lets you clip the T5 onto your belt. Available in 600V and 1000V models.
Specification:
| Specifications | |
| Continuity beeper | |
| Threshold: | On at <25 , off at >400 |
| Volts indicator LED | |
| Threshold: | Guaranteed on by 30V ac |
| Environmental Specifications | |||
| Operating Temperature | |||
| -10 °C to 50 °C | |||
| Storage Temperature | |||
| -30 °C to 60 °C | |||
| Humidity (Without Condensation) | |||
| 0% to 95% (5 °C to 30 °C) | |||
| 0% to 75% (30 °C to 40 °C) | |||
| 0% to 45% (40 °C to 50 °C) | |||
| Dust/water resistance | |||
| Yes | |||
| Operating Altitude | |||
| 2000 meters max | |||
| Temperature Coefficient | |||
| 0.1 x (specified accuracy)/degree C (<18 °C or >28 °C) | |||
| Safety Specifications | |||
| Overvoltage category | |||
| T5-600: | 600V ac/dc, CAT III | ||
| T5-1000: | 1000V ac/dc, CAT III | 600V ac/dc, CAT IV | |
| Agency Approvals | |||
| UL, CSA, and VDE | |||
| Maximum voltage | |||
| between any terminal and earth ground | |||
| Mechanical & General Specifications | |||
| Size | |||
| 30.5 x 51 x 203 mm | |||
| Weight | |||
| 300g | |||
| Warranty | |||
| 2 years | |||
| Battery Life | |||
| 200 hour zinc chloride, 400 hour alkaline | |||
| Battery type | |||
| Two AA zinc chloride | |||
| Low battery indicator | |||
| Yes | |||
| Current sensor opening | |||
| 12.9 mm | |||
| Calibration cycle | |||
| 1 year | |||
| Test leads | |||
| Type: | Heavy duty, flexible leads rated for 1000V use. | ||
| Field replaceable leads terminate in male shrouded banana plugs | |||
| Probes: | One red, one black. of two tip | ||
| Detachable Slim-ReachT probe tips in one | |||
| Styles: | TP4 4 mm round | ||

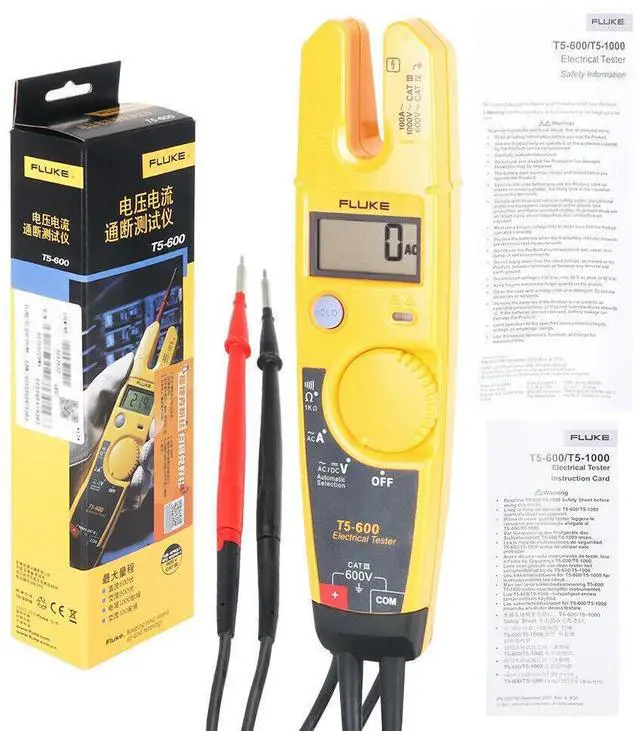

Package Include:
1pc Fluke T5-600 Electrical Tester
1pc Two AA model zinc chloride batteries
1pc User manual
Notice:
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!
