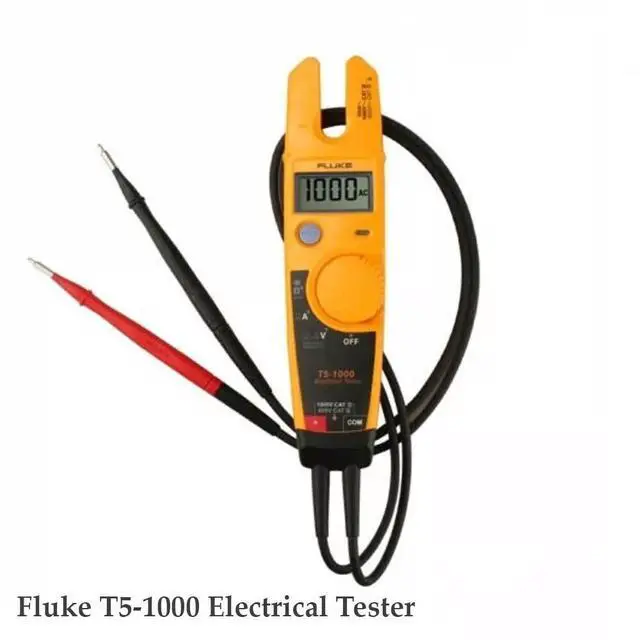

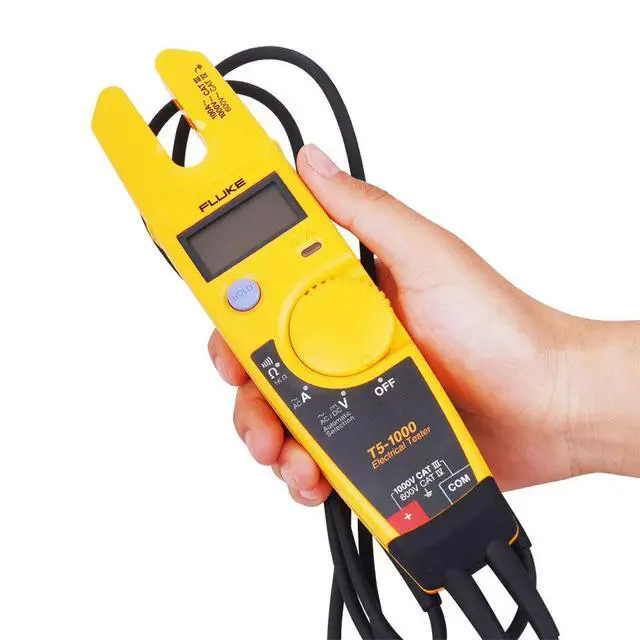

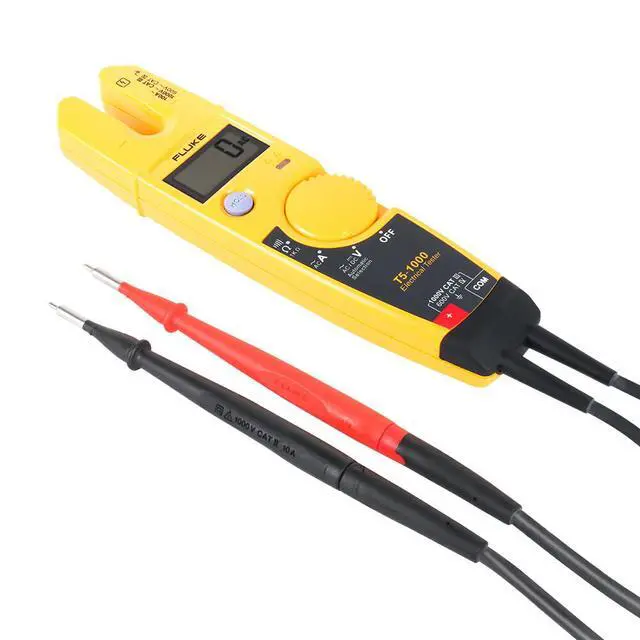

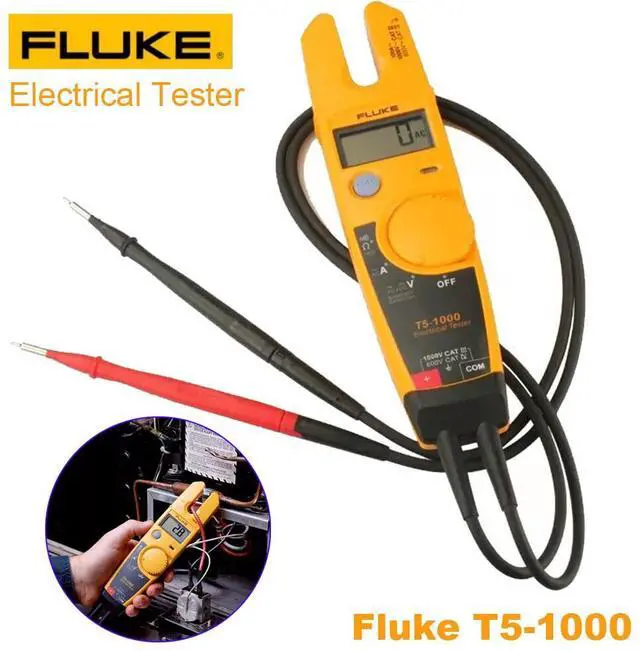

FLUKE T5-1000 Clamp Meter Continuity Current Electrical Tester AC/DC Voltage
- Features
- Automatically measures volts AC and volts DC with precise digital resolution
- Easy and accurate OpenJaw current measurement
- Rugged enough to withstand a 10 ft (3 m) drop
- Can stay connected much longer than solenoid type tester
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

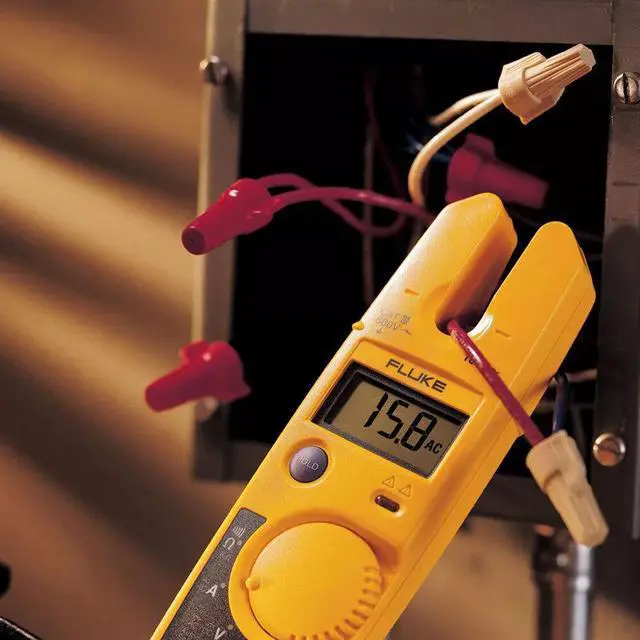

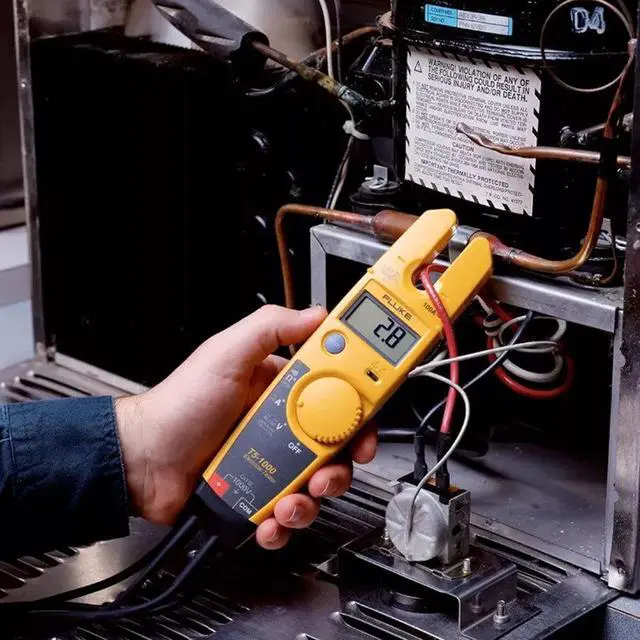

Electrical tester with OpenJaw Current
The Fluke T5 Electrical Testers let you check voltage, continuity and current with one compact tool. With the T5, all you have to do is select volts, ohms, or current and the tester does the rest. OpenJaw current lets you check current up to 100A without breaking the circuit. Its tough test leads stow neatly in the back of the tester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach test probes are customized for national electrical standards. The test leads accept optional accessories such as clips and specialty probes. The optional H5 holster lets you clip the T5 onto your belt.
- Automatically measures volts ac and volts dc with precise digital resolution
- Displays resistance to 1000
- Easy and accurate OpenJaw current measurement
- Continuity beeper
- Compact design with neat probe storage
- Rugged enough to withstand a 10-foot (3m) drop
- Detachable SlimReach probe tips are customized for national electrical standards
- Test leads accept Fluke accessory test clips
- 1000V model
- Can stay connected much longer than solenoid type tester
- Auto off mode to conserve battery life
- Optional holster attaches to a belt and neatly stows test leads
- AC current
- Display hold
| Specifications | ||
| Jaw opening | 12.9 mm (0.5 in) | |
| Max wire size | 1/0 THHN Cable | |
| Current range ac rms | 0 to 100.0 A | |
| Accuracy ac current (50/60 Hz) | 3 % ± 3 counts | |
| AC Response | Averaging | |
| Voltage range ac | 0 to 1000 V | |
| Accuracy ac voltage | 1.5 % ± 2 counts | |
| Voltage range dc | 0 to 1000 V | |
| Accuracy dc voltage | 1 % ± 1 count | |
| Resistance range | 0 to 1000 | |
| Continuity beeper threshold | On at <25 , off at >400 | |
| Volts indicator LED threshold | Guaranteed on by 30 V ac | |
| Environmental Specifications | ||
| Operating Temperature | -10 °C to 50 °C | |
| Storage Temperature | -30 °C to 60 °C | |
| Humidity (Without Condensation) | 0 % to 95 % (5 °C to 30 °C); 0 % to 75 % (30 °C to 40 °C); | 0 % to 45 % (40 °C to 50 °C) |
| Dust/water resistance | Yes | |
| Operating Altitude | 2000 meters max | |
| Temperature Coefficient | 0.1 x (specified accuracy)/°C (<18 °C or >28 °C) | |
| Safety Specifications | ||
| Overvoltage category | CAT III 600 V ac/dc (EN61010-1) | |
| Agency Approvals | UL, CSA, and VDE | |
| Maximum voltage | Between any terminal and earth ground | |
| Mechanical and General Specifications | ||
| Size | 30.5 mm x 51 mm x 203 mm | |
| Weight | 300g | |
| Warranty | Two-years | |
| Battery Life | 200 hour zinc chloride, 400 hour alkaline | |
| Battery type | 2 x AA | |
| Low battery indicator | Yes | |
| Current sensor opening | 12.9 mm | |
| Calibration cycle | 1 year |

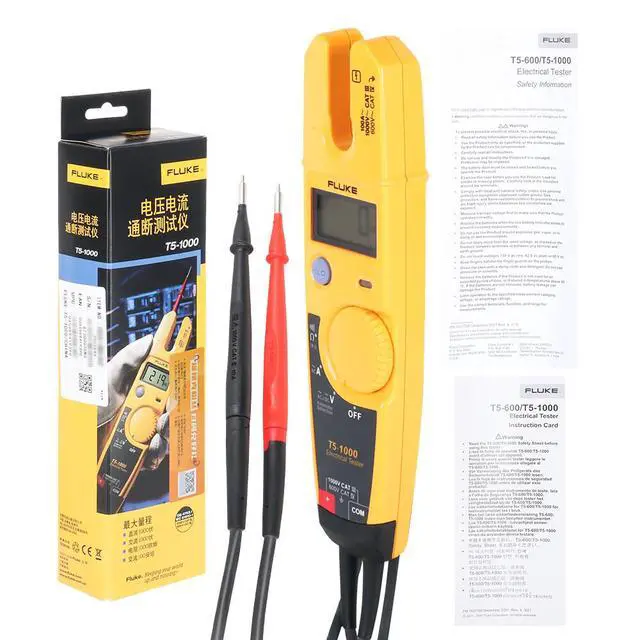

Fluke T5-1000 Clampmeter is supplied with the following
- 1000V Voltage, continuity and current tester
- 4 mm detachable probes
- Instruction sheet
- Free personalised calibration certificate with this tester (calibrated before shipping with your details on the certificate)
- UK supplied from official Fluke distributor
