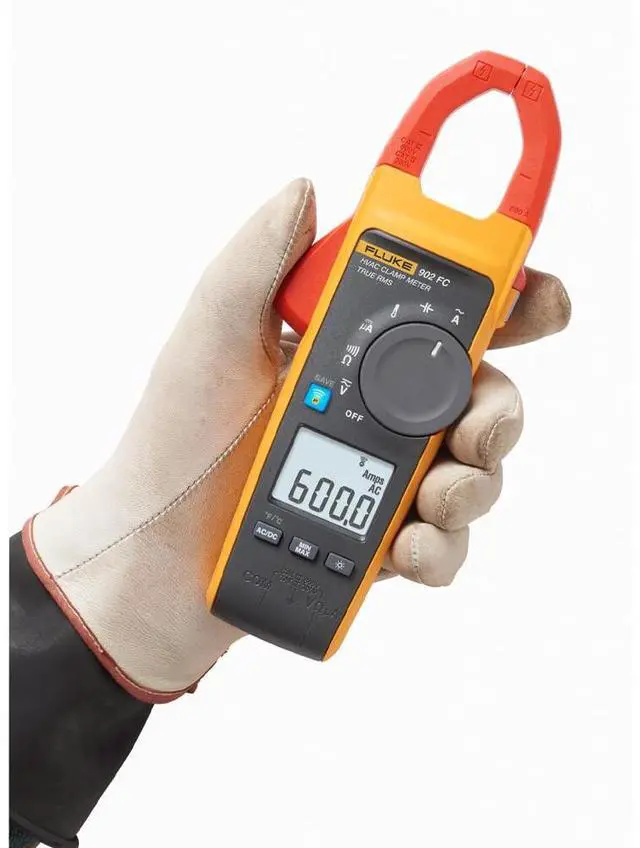

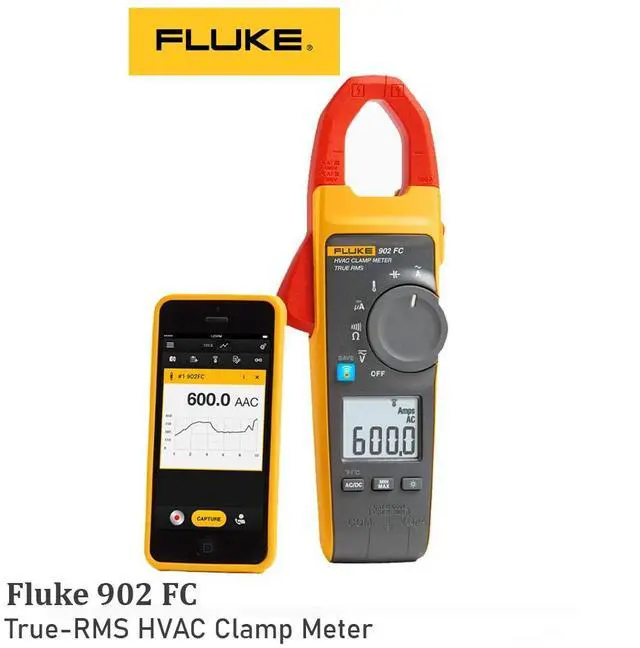

Fluke 902 FC Compact Clamp Meter True RMS HVAC Multimeter 600A DC Current 60k
- Feature
- A wireless Fluke Connect®-enabled clamp meter designed specifically for the needs of HVAC technicians
- Offers 200 µA DC current measurements to measure flame rod
- Extends resistance range to measure thermistors up to 60k
- Captures flue gas temperature
- Measures start and run motor capacitors
- Measures variable frequency drive performance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Other Useful Features
Ergonomic design fits in your hand and can be used while wearing personal protective equipment
Large, easy-to-read backlit display improves readings in low light settings
Connects to your smartphone via Fluke Connect so you can read measurements at a safer distance
Measures AC current to 600 A and AC and DC voltage to 600 V
Measures capacitance to 1000 µF and DC current to 200 µA
Measures temperature from -10 °C to 400 °C (14 °F to 752 °F)
Offers True-RMS voltage and current measurements to accurately measure non-linear signals
Measures resistance to 60 k
Offers Min/Max recording to capture variations automatically
Runs on two AA alkaline batteries
Specifications
| Function | |||
| A ac (via Jaw) | |||
| Resolution | 0.1 A | ||
| Accuracy | 2.0% ±5 digit (45-65 Hz) | ||
| 2.5% ±5 digit (65-400 Hz) | |||
| Range | 600.0 A | ||
| Crest Factor (50Hz or 60Hz) | 2.5 MIN@220 A | > 1.4 MIN@600 A | Add 2% for CF>400 A |
| V ac | |||
| Resolution | 0.1 V | ||
| Accuracy | 1.5% ±5 digits | ||
| Range | 600.0 V | ||
| V dc | |||
| Resolution | 0.1 V | ||
| Accuracy | 1.5% ±5 digits | ||
| Range | 600.0 V | ||
| Ohms | |||
| Resolution | 0.1/1/10 | ||
| Accuracy | 1% ±5 digits | ||
| Range | 600/6000/60.00 k | ||
| Capacitance | |||
| Resolution | 0.1/1 µF | ||
| Accuracy | 1% ±4 digits | ||
| Range | 100.0/1000 µF | ||
| µA | |||
| Resolution | 0.1 µA | ||
| Accuracy | 1% ±5 digits | ||
| Range | 200 µA | ||
| Contact temperature | |||
| Resolution | 0.1 C/F | ||
| Accuracy | 1% ±8 digits | ||
| Range | -40 to 400 °C (-40 °F to 752 °F) | ||
| Continuity beeper | |||
| Beeper volume | 75 dBA nom. 15 cm. from case front | ||
| On threshold | <=30 | ||
| Mechanical and General Specifications | |||
| Maximum voltage between any terminal and earth ground | 600 V | ||
| Battery type | 2 AA alkaline batteries, NEDA 15A, IEC LR6 | ||
| Temperature | Operating: -10 °C to +50 °C (14 °F to +122 °F) | Storage: -40 °C to +60 °C (-40 °F to +140 °F) | |
| Operating humidity | Non condensing (< 10 °C [50 °F]), 90 % RH (at 10 °C to 30 °C [50 °F to 86 °F]), 75 % RH (at 30 °C to 40 °C (86 °F to 104 °F)), 45 % RH (at 40 °C to 50 °C (104 °F to 122 °F)) | ||
| Altitude | Operating: 3,000 m (9,842 ft) | Storage: 12,000 m (39,370 ft) | |
| Dimensions | 230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in) | ||
| Weight (meter only) | 419 g (15 oz) | ||
| Safety | IEC 61010-1, Pollution Degree 2 | IEC 61010-2-032: CAT III 600 V / CAT IV 300 V | IEC 61010-2-033: CAT III 600 V / CAT IV 300 V |
| IP Rating | IEC 60529: IP30, non-operating | ||
| Radio Frequency Certification | FCC ID:T68-FBLE IC:6627A-FBLE | ||
| Electromagnetic Compatibility (EMC) | International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. | ||
| Temperature coefficients | Add 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C |
