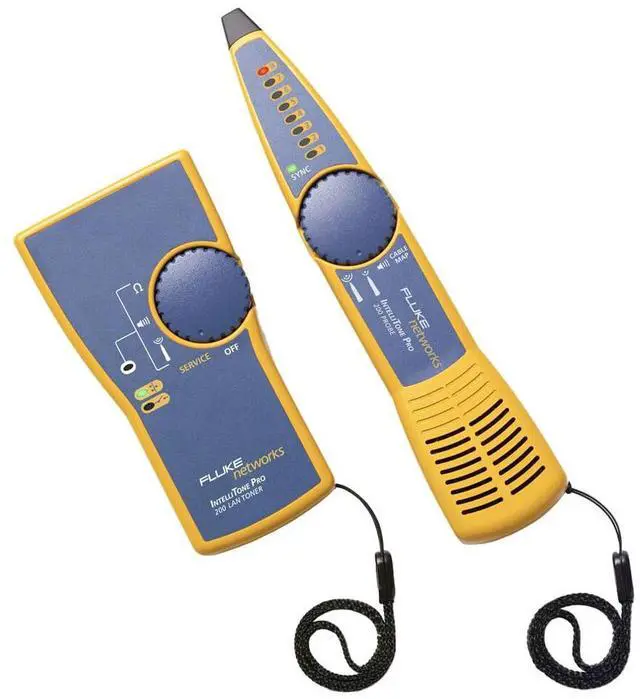

Fluke Multicolor MT-8200-60-KIT Network Cable Tester Finder with Probe and Toner
- Features
- Locates cables safely and effectively on active networks
- Kit includes IntelliTone toner, probe, adapters, patch cables, and test leads
- Verifies twisted pair installation with end to end continuity test
- IntelliTone digital toning eliminates noise and false signals
- SmartTone analog toning isolates individual wire pairs
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
| General specifications | ||
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) | |
| Storage temperature | -4 °F to +140°F (-20 °C to °C) | |
| Operating relative humidity (% RH without condensation) | 95 % (50 °F to 95 °F; 10 °C to 35 °C) | 75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C) |
| Vibration | Random, 2 g, 5 Hz-500 Hz | |
| Shock | 1 m drop test | |
| Safety | EN 61010-1, Category: None | |
| Altitude | 3000 m | |
| EMC | EN 61326-1, FCC Part 15 B | |
| Battery type and life | 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical | |
| Applications | Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200. | |

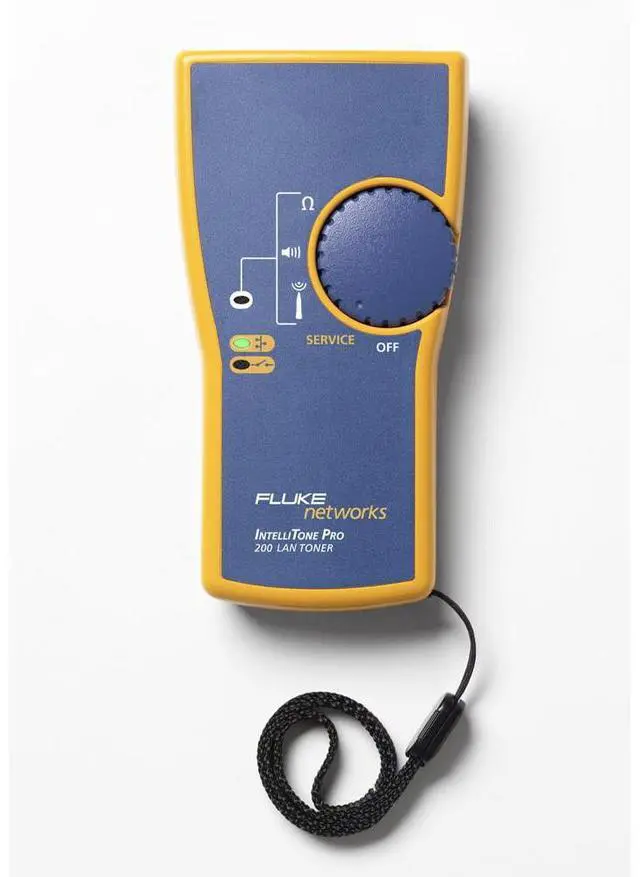

| Toner specifications | ||
| Dimensions | 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm) | |
| Display | LED | |
| Control | Thumbwheel switch | |
| Toner interface | Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring | |
| Toner frequency | IntelliTone signal: encoded digital signal | Analog SmartTone signal: 500 - 1200Hz, 4 songs |
| Ouptut power | 5 V p-p | |
| Auto power down | Turns off automatically after 2 1/2 hours of inactivity | |

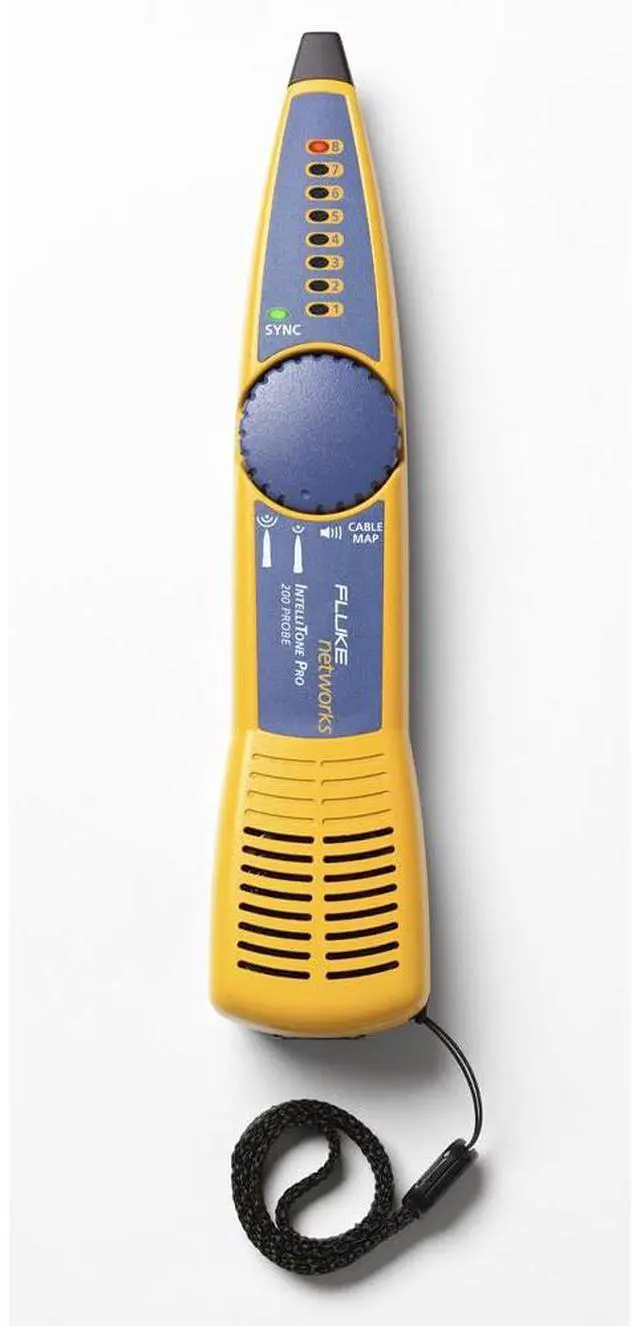

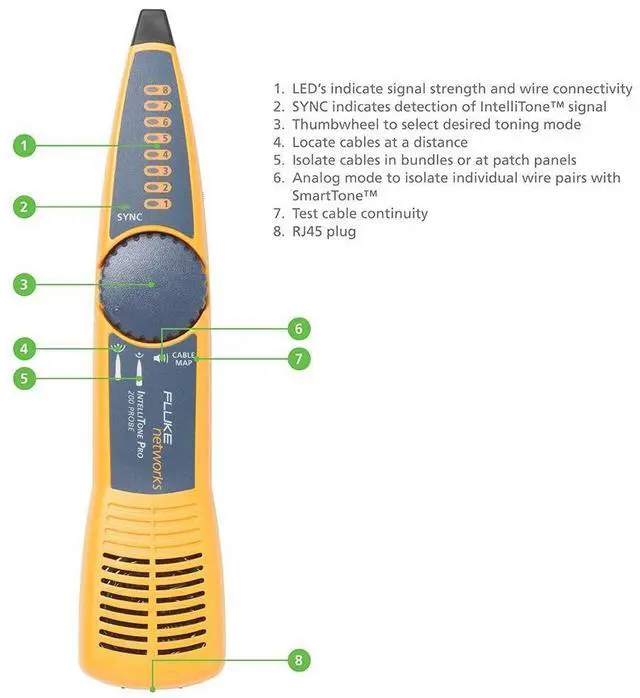

| Probe specifications | ||
| Dimensions | 8.73 in x 1.88 in x 1.26 in (22.2 cm x 4.8 cm x 3.2 cm) | |
| Display | (8) LED indicators, Sync LED indicator | |
| Audio | IntelliTone: Microprocessor controlled audio files | Analog: Detected toner signal |
| Control | Thumbwheel switch, volume control wheel | |
| Tone detection | Detects IntelliTone digital signal for Locate, Isolate, and Cable Map | Detects analog SmartTone signal (500-1200Hz) and other analog toners. |
| Toner interface | Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling. | |
| Auto power down | Turns off automatically after 1 hour of inactivity |
