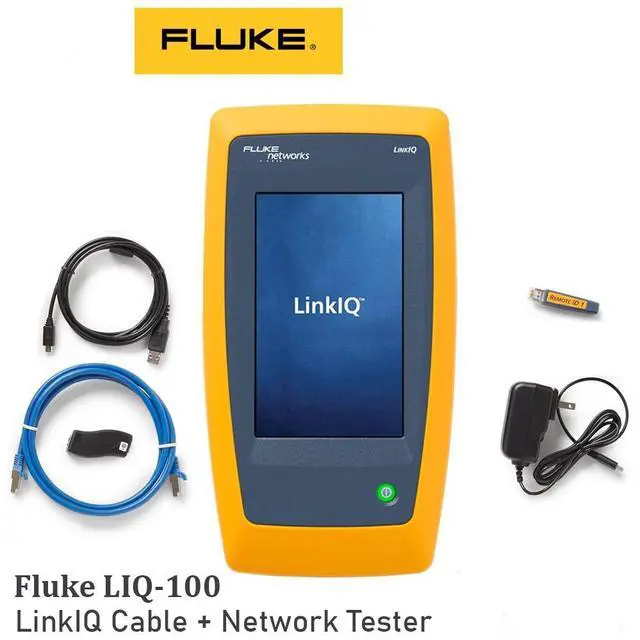

Fluke Networks LIQ-100 Cable Network Tester In-Depth Testing for PoE
- Features
- Validate Cable Performance up to 10GBASE-T via frequency-based measurements
- Get connected switch data rate, switch name, IP address, port number, and VLAN

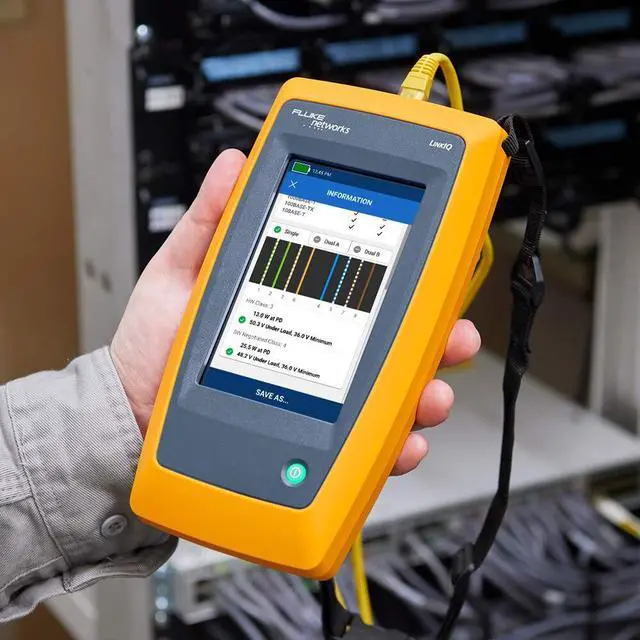

- Detect the PoE class (1-8) and power, and perform a load test
- Test connectivity to TCP/IP network through IP configuration and ping
- Manage results and print reports from LinkWare PC
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
| Feature | Description | |||
| Languages supported in UI | English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese | |||
| Weight | 1 lbs 6 oz (624g) | |||
| Battery | Type: Lithium-ion, 3.6 V, 6400 mAh | Life: 8 hours typical | Charge time: 4.5 hours | Charging temperature range: 0 °C to +40 °C |
| Power Adapter | Input: 100 to 240 VAC ±10%, 50/60Hz | Output: 15 VDC, 2 A maximum | Class II | |
| Host Interface | USB type C | |||
| Display | 800 x 480 color capacitive multi-touch | |||
| Dimensions | 8.5 in x 4.5 in | |||
| Operating Temperature | 0°C to 45°C | |||
| Storage Temperature | -10°C to +60°C | |||
| Operating Relative Humidity | 0 % to 90 %, 0°C to 35°C | 0 % to 70 %, 35°C to 45°C | ||
| Operating Altitude | 4,000 m | 3,200 m with ac adapter | ||
| Vibration | Random, 2 g, 5 Hz-500 Hz | |||
| Drop | 1 m drop, 6 sides |
| Feature | Description | ||||
| Diagnostic Protocols | Link Layer Discovery Protocol (LLDP) | Cisco Discovery Protocol (CDP) | Fast Link Pulses (FLP) | Internet Control Messaging Protocol (ICMP), | Dynamic Host Configuration Protocol (DHCP) |
| IP Address Setup | LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP | ||||
| IP Ping Test Results | Four response time results for target, DNS Server(s), Gateway, plus average and number lost. | ||||
| Power Over Ethernet Compatibility | Ethernet Alliance Certified to IEEE 802.3af/at/bt, | Hardware negotiation with signature resistance, | Software negotiation with LLDP/CDP | ||
| Power Over Ethernet Measurements | Loaded Voltage (V) | Loaded Power (W) | |||
| Port Blink | Blink the light of the connected port |
| Feature | Description | |||||

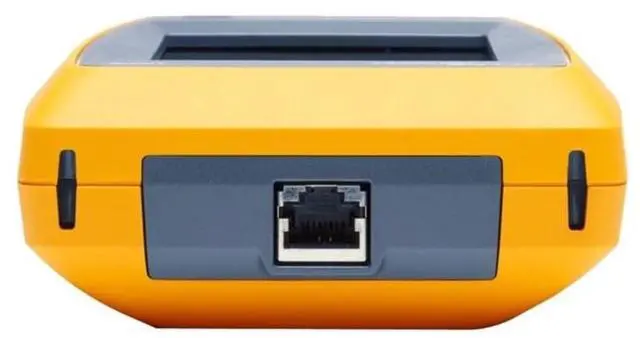

| Test Port | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs. | |||||
| Commissioning Autotests | 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. | Test Speed: 6 seconds for lengths < 70 m | ||||
| Cable Types | Balanced twisted-pair cabling | Unshielded twisted-pair | Screened twisted-pair | 2-pair and/or 4-pair | ||
| Wire Map-Only Tests | Document wire map | Length of each pair | Diagnose split pairs | User selectable T568A or T568B | User selectable crossover settings (Straight through, Half-crossover, Full-crossover) | Test speed: 1 second for lengths < 120 m |
| Length (Maximum) | 305 m (1000 ft) | |||||
| Nominal Velocity of Propagation (NVP) | User settable | |||||
| Tone Generator | Generates digital tones compatible with Fluke Networks IntelliTone probe. | Generates analogy tones compatible with general analog probes. | ||||
| Remote ID Locators | Use remote ID terminations to identify up to 7 unique ports or office outlets |
