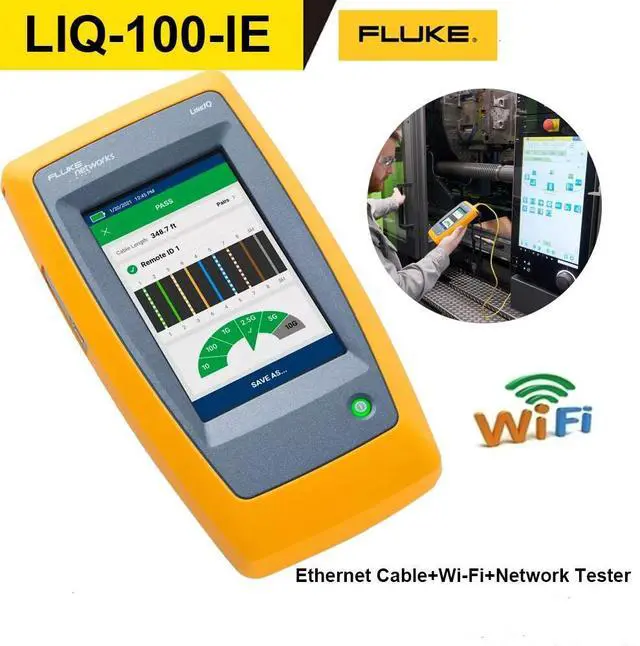

Fluke LIQ-100-IE Networks LinkIQ Industrial Ethernet Cable+Wi-Fi+Network Tester
- Performance testing of Industrial Ethernet cabling
- Switch IP address, name, port / VLAN number, data rates + ping
- Detect and test PoE power under load to Class 8
- Wi-Fi analysis to Wi-Fi 6E: networks, channels, and access points
- Manage results and print reports from LinkWare PC
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
| Feature | Description | |||
| Languages supported in UI | English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese, Czech, Danish, Dutch, Finnish, Norwegian, Polish, Swedish, and Turkish | |||
| Weight | 1 lbs 6 oz (624g) | |||
| Battery | Type: Lithium-ion, 3.6 V, 6400 mAh; | Life: 8 hours typical; | Charge time: 4.5 hours; | Charging temperature range: 0 °C to 40 °C |
| Power Adapter | Input: 100 to 240 V ac ±10%, 50/60Hz; | Output: 15 V dc, 2 A maximum; | Class II | |
| Host Interface | USB type C | |||
| Display | 800 x 480 pixels color capacitive multi-touch | |||
| Dimensions | 22 cm x 11 cm (8.5 in x 4.5 in) | |||
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) | |||
| Storage Temperature | -10 °C to 60 °C (-14 °F to 140 °F) | |||
| Operating Relative Humidity | 0 % to 90 %, 0 °C to 35 °C | 0 % to 70 %, 35 °C to 45 °C | ||
| Operating Altitude | 4,000 m | 3,200 m with ac adapter | ||
| Vibration | Random, 2 g, 5 Hz-500 Hz | |||
| Drop | 1 m drop, 6 sides |
| Feature | Description | ||||
| Diagnostic Protocols | Link Layer Discovery Protocol (LLDP), | Cisco Discovery Protocol (CDP), | Fast Link Pulses (FLP), | Internet Control Messaging Protocol (ICMP), | Dynamic Host Configuration Protocol (DHCP) |
| IP Address Setup | LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP | ||||
| IP Ping Test Results | Four response time results for target, DNS Server(s), Gateway, plus average and number lost | ||||
| Nearest Device Diagnostics (If available through diagnostic protocols) | Switch Name / IP + MAC Address, | Port Number, | VLAN Name, | Advertised Data Rates, | Advertised Duplex |
| Power Over Ethernet Compatibility | Ethernet Alliance Certified to IEEE 802.3af/at/bt, | Hardware negotiation with signature resistance, | Software negotiation with LLDP/CDP | ||
| Power Over Ethernet Diagnostics | Advertised Power Class (0-8), | Advertised Available Power, | Powered Pairs, | Diagnostics for both Single and Dual signatures | |
| Power Over Ethernet Measurements | Loaded Voltage (V), | Loaded Power (W) | |||
| Port Blink | Blink the light of the connected port |
| Feature | Description | |||||
| Test Port | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs | |||||
| Commissioning Autotests | 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. | Test Speed: 6 seconds for lengths < 70 m | ||||
| Cable Types | Balanced twisted-pair cabling; | Unshielded twisted-pair; | Screened twisted-pair; | 2-pair and/or 4-pair; | Adapter cables for M8D, M12D, M12X | |

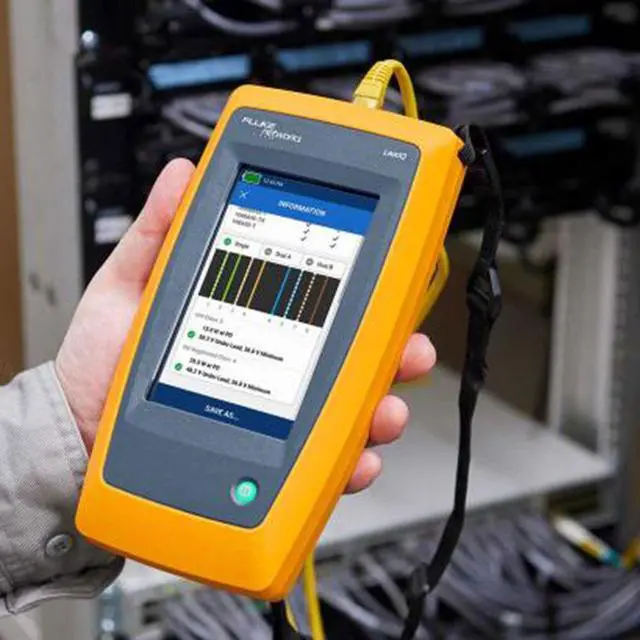

| Wire Map-Only Tests | Document wire map, | Length of each pair, | Diagnose split pairs, | User selectable T568A or T568B, | User selectable crossover settings (Straight through, Half-crossover, Full-crossover). | Test speed: 1 second for lengths < 120 m |
| Length (Maximum) | 305 m (1000 ft) | |||||
| Nominal Velocity of Propagation (NVP) | User settable | |||||
| Tone Generator | Generates digital tones compatible with Fluke Networks IntelliTone probe. | Generates analog tones compatible with general analog probes. | ||||
| Remote ID Locators | Includes on remote identifier with RJ-45, M8D, M12D, and M12X connectors. Optional RJ terminations identify up to 6 additional unique ports or office outlets. |
| Feature | Description | |
| Supported Wireless Standards | 802.11b, 802.11a, 802.11g, 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5), and 802.11ax (Wi-Fi 6/6E). | Additionally, the tester will report the presence of future standards, such as 802.11be, if the standard's presence can be decoded in a supported beacon. |
| Frequencies Supported | Frequencies of channels received and transmitted (where allowed by country regulations): 2.4 GHz band: 2.402 to 2.482 GHz (channel 1 to channel 13); 5 GHz band: 5.170 to 5.330 GHz, 5.490 to 5.730 GHz, 5.735 to 5.835 GHz (channel 36 to channel 165); 6 GHz band: 5.945 to 7.125 GHz (channel 1 to channel 233). | NOTE: The tester transmits only on the frequencies allowed in the country where it is sold. |
| Country certifications | AE, AU, AR, BR, CA, CL, CN, IN, JP, KR, KW, MY, MX, NZ, PH, SG, TH, TW, UK, US, ZA, plus the European Union | (Completed or in process. Contact your local Fluke representative for details.) |
| Network Tests | Number and name (BSSID) of available access points, signal strength, security type, IEEE 802.11 standard supported | |
| Access Point Tests | Networks supported / country code, BSSID, signal strength, band/channel/bandwidth, IEEE 802.11 standards supported, security types, TX/RX rates | |

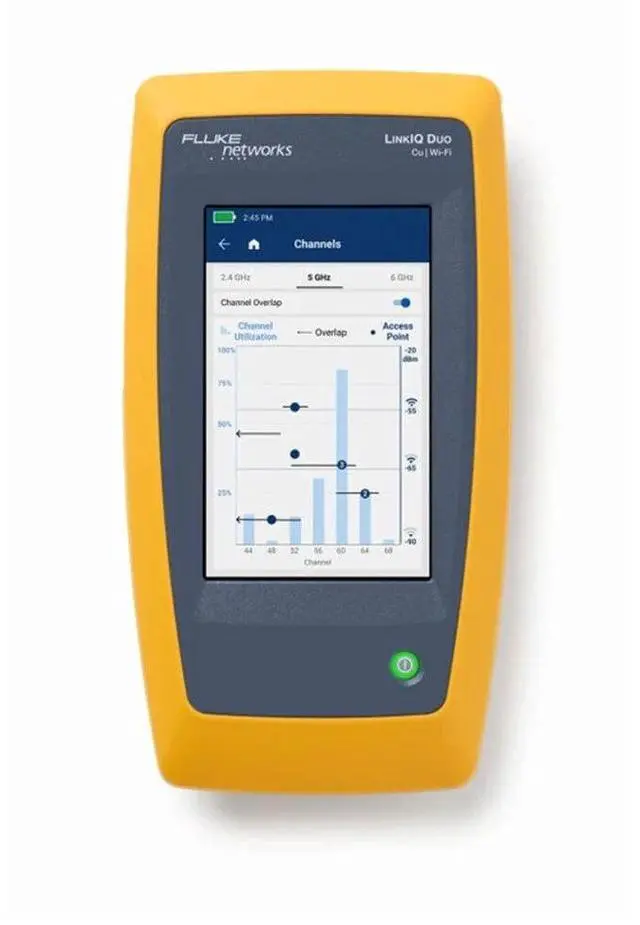

| Channel Tests | Utilization, Number / signal strength of access points, overlap |

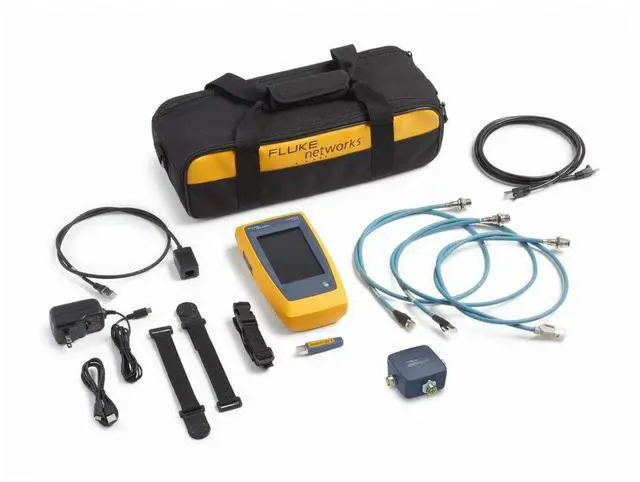

Includes:
LIQ-100 with Multi-Connector Adapter
Magnetic strap
RJ45 Remote-ID #1
Quick Reference Guide
USB-C to USB-A cable
Charging cable
Cat 6A patch cord
RJ45 male to RJ45 female patch cord
RJ45/M12X patch cord
RJ45/M12D patch cord
RJ45/M8D patch cord
RJ45/11 Modular Adapter
Hanging strap with Remote ID holder
Duffle bag
