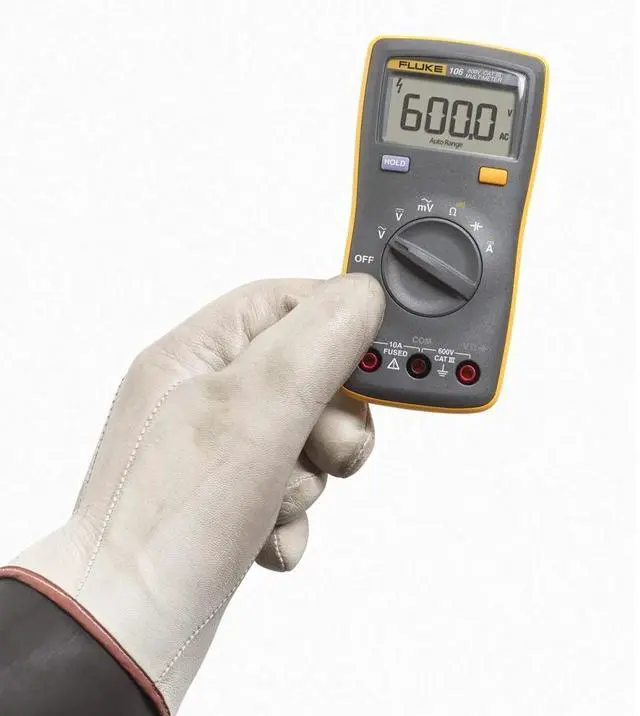

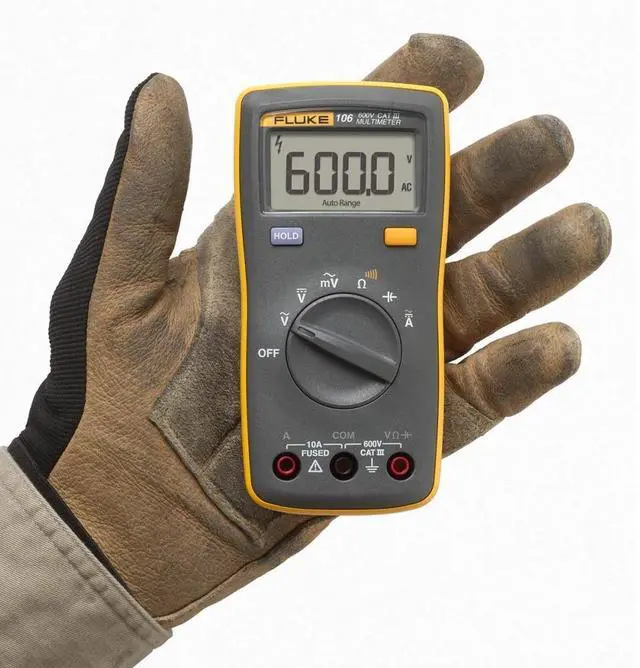

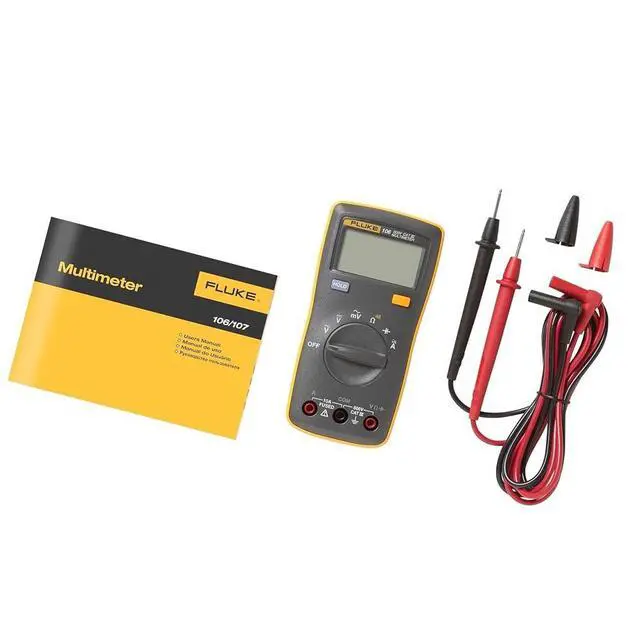

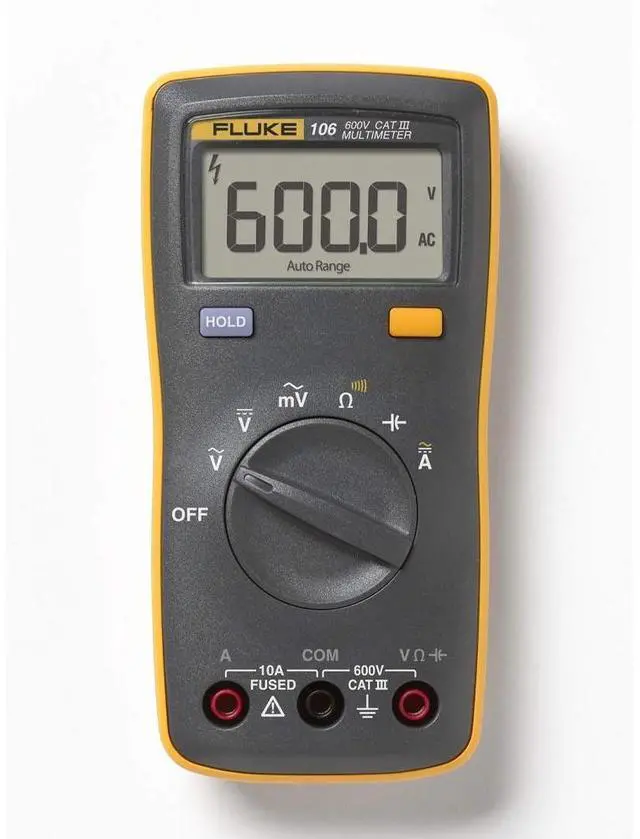

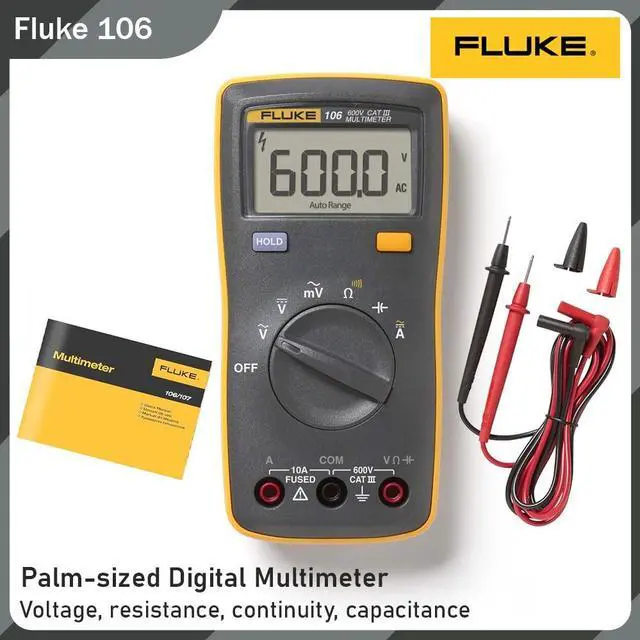

FLUKE 106 Digital Multimeter AC/DC Voltmeter Ammeter Ohmmeter Volt Tester Meter
- Feature
- Voltage, resistance, continuity, capacitance
- Input terminal for ac and dc current measurements to 10 A and current
- Data hold
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C,
relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits
Specifications
| Accuracy Specifications | |||||||||||||||||||
| Function | Range | Resolution | Accuracy | ||||||||||||||||
| AC Volts | (40 Hz to 500Hz)1 | 6.000 V | 60.00 V | 600.0 V | 0.001 V | 0.01 V | 0.1 V | 1.0 % + 3 | |||||||||||
| DC Volts | 6.000 V | 60.00 V | 600.0 V | 0.001 V | 0.01 V | 0.1 V | 0.5 % + 3 | ||||||||||||
| AC Millivolts | 600.0 mV | 0.1 mV | 3.0 % + 3 | ||||||||||||||||
| Resistance | (Ohms) | 400.0 | 4.000 k | 40.00 k | 400.0 k | 4.000 M | 40.00 M | 0.1 | 0.001 k | 0.01 k | 0.1 k | 0.001 M | 0.01 M | 0.5 % + 3 | 0.5 % + 2 | 0.5 % + 2 | 0.5 % + 2 | 0.5 % + 2 | 1.5% + 3 |
| Capacitance2 | 50.00 nF | 500.0 nF | 5.000 F | 50.00 F | 500.0 F | 1000 F | 0.01 nF | 0.1 nF | 0.001 F | 0.01 F | 0.1 F | 1 F | 2 % + 5 | 2 % + 5 | 5 % + 5 | 5 % + 5 | 5 % + 5 | 5 % + 5 | |
| Frequency3 Hz | (10 Hz 100 kHz) | 50.00 Hz | 500.0 Hz | 5.000 kHz | 50.00 kHz | 100.0 kHz | 0.01 Hz | 0.1 Hz | 0.001 kHz | 0.01 kHz | 0.1 kHz | NA | |||||||
| Duty Cycle3 | 1 % to 99 % | 0.1 % | NA | ||||||||||||||||
| AC Current | (40 Hz to 200 Hz) | 4.000 A | 10.00 A | 0.001 A | 0.01 A | 1.5 % + 3 | |||||||||||||
| DC Current | 4.000 A | 10.00 A | 0.001 A | 0.01 A | 1.5 % + 3 |
- All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
- Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range).
- All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
| Function | Overload Protection | Input Impedance (Nominal) | Common Mode Rejection Ratio | Normal Mode Rejection Ratio | |
| AC Volts | 600 V 1 | >10 M <100 pF 2 | >60 dB at dc, | 50 Hz or 60 Hz | |
| \AC Millivolts | 600 mV | >1M, <100 pF | >80 dB at 50 Hz or 60 Hz | ||
| DC Volts | 600 V 1 | >10 M <100 pF | >100 dB at dc, | 50 Hz or 60 Hz | >60 dB at 50 Hz or 60 Hz |
- 6 x 105 V Hz Max
- For mV (AC), input impedance is approximately 1 M.
| General Specifications | ||
| Maximum Voltage Between any Terminal and Earth Ground | 600 V | |
| Display (LCD) | 6000 counts, updates 3/sec | |
| Battery Type | 2 AAA, NEDA 24A, IEC LR03 | |
| Battery Life | 200 hours minimum | |
| Temperature | ||
| Operating | 0 °C to 40 °C | |
| Storage | -30 °C to 60 °C | |
| Relative Humidity | ||
| Operating Humidity | Non-condensing when <10°C | 90 % at 10 °C to 30 °C; 75 % at 30 °C to 40 °C |
| Operating Humidity, 40 M Range | 80 % at 10 °C to 30 °C; 70 % at 30 °C to 40 °C | |
| Altitude | ||
| Operating | 2000 m | |
| Storage | 12,000 m | |
| Temperature Coefficient | 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) | |
| Fuse Protection for Current Inputs | 11A, 1000V Fast Fuse, Fluke specified part only | |
| Size (HxWxL) | 142 mm x 69 mm x 28mm | |
| Weight | 200 g | |
| IP Rating | IEC 60529: IP 40 | |
| Safety | IEC 61010-1: 600 V CAT III, Pollution Degree 2 | |
| Electromagnetic Environment | IEC 61326-1: Portable | |
| Electromagnetic Compatibility | Applies to use the Korea only. Class A Equipment (Industrial Broadcasting and Communication Equipment)1 |
