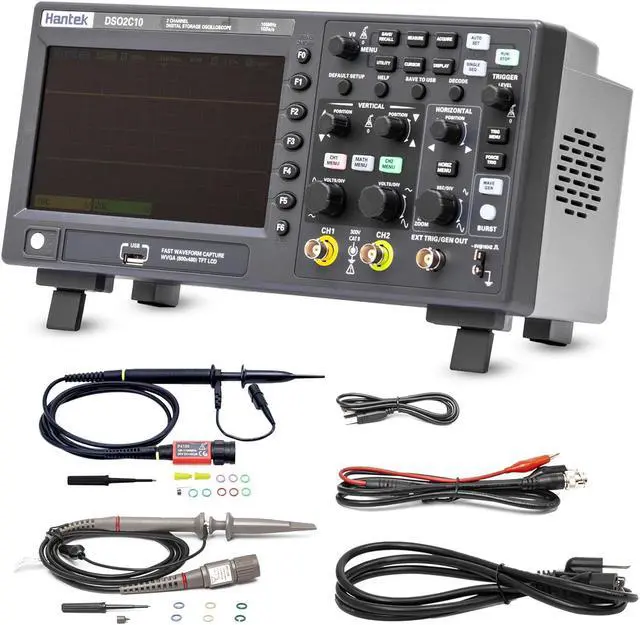

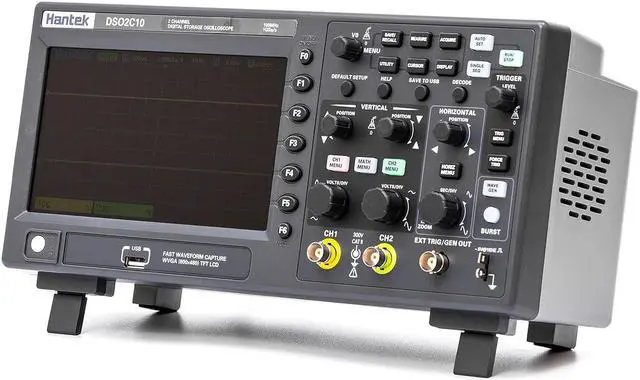

Hantek DSO2C10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth
- Hantek oscilloscopes are extensive use in many scopes and well-know for the DSO5102P, and there is a mature technology in this industry. Hantek DSO2C10 also continue to use the same motherboard and chip-set of the DSO5000 series and it is a upgrade version.
- DSO2C10 is a cost-effective oscilloscope, with 8M memory depth, 100MHz bandwidth, 1GSa/s, 3-digit digital voltage meter, 6-digit hardware frequency indicator functions and abundant SCPI remote command control. This lab oscilloscope supports BUS decode and protocol analysis includes RS232/UART, I2C, SPI, CAN, LIN. This DSO2C10 digital oscilloscope can connect the laptop, that allows direct and efficient observation of data. The function of this oscilloscope is suitable for use in personal hobbies, maintenance devices and small-scale laboratory. Hantek DSO2C10 oscilloscope is a professional device in many industries, such as communications, aerospace, embedded systems, computer, R&D, education and so on.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Vertical range 2mV/div ~ 10V/div
Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
Save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
2 sets of digital voltmeters
Support threshold testing, free measurements within the screen
Abundant SCPI remote command control
USB Host/Device.
32 kinds of auto measurements with statistics
Can save 10 sets of reference waveforms
CSV waveforms and settings
The USB one-click screenshot function.
2 sets of DVM
3-digit digital voltage meter and 6-digit hardware frequency indicator functions
Serial bus trigger and decode
with the protocol monitoring function
8M memory depth
PASS/FAIL
Mathematical operation and FFT
X-Y format and display in dual windows
Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
Save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
2 sets of digital voltmeters
Support threshold testing, free measurements within the screen
Abundant SCPI remote command control
USB Host/Device.
32 kinds of auto measurements with statistics
Can save 10 sets of reference waveforms
CSV waveforms and settings
The USB one-click screenshot function.
2 sets of DVM
3-digit digital voltage meter and 6-digit hardware frequency indicator functions
Serial bus trigger and decode
with the protocol monitoring function
8M memory depth
PASS/FAIL
Mathematical operation and FFT
X-Y format and display in dual windows
