Testo 510 Digital Manometer Digital Auto-Ranging Differiental Pressure Meter
- Features:
- * Readings may be displayed in Pascal over the entire measurement range
- * Temperature-compensated
- * Magnets on reverse for hands-free operation
- * Flow velocity measurement with Pitot tube
- * Air density-compensated
- * Operates on two AAA alkaline batteries(not included package)
- * Battery life: 500 hours (average, without display lit)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
overview:

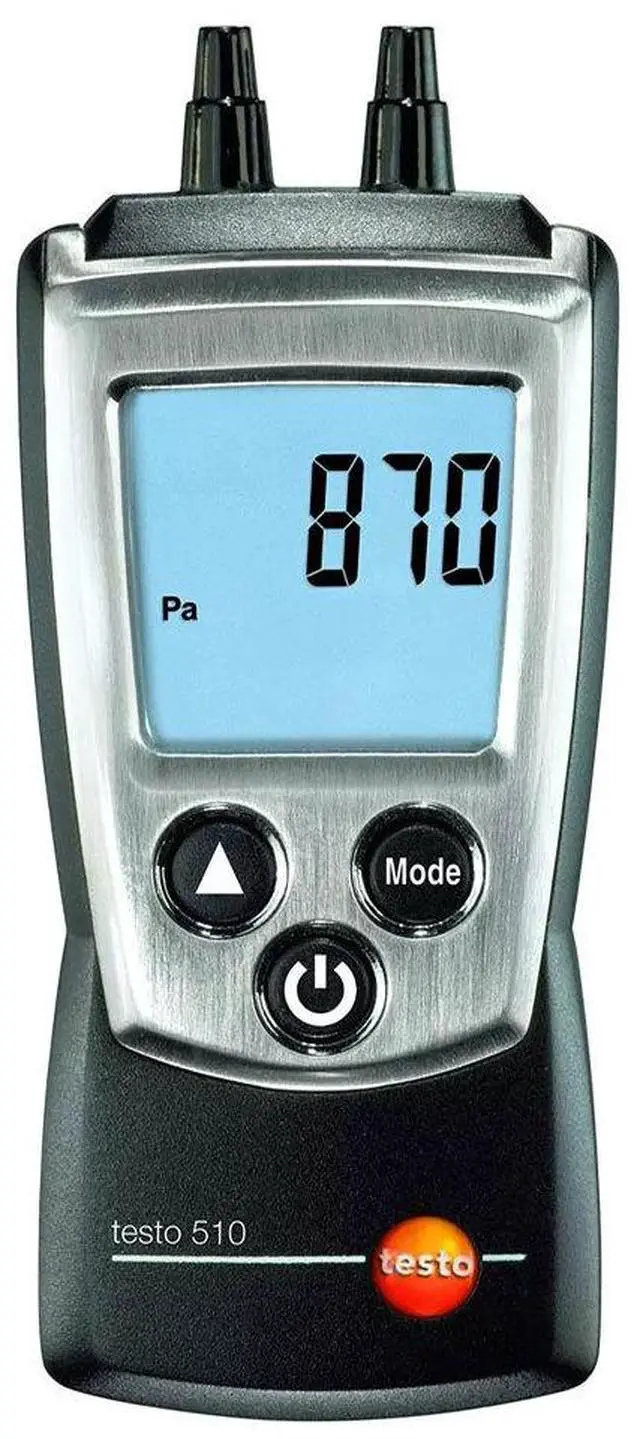

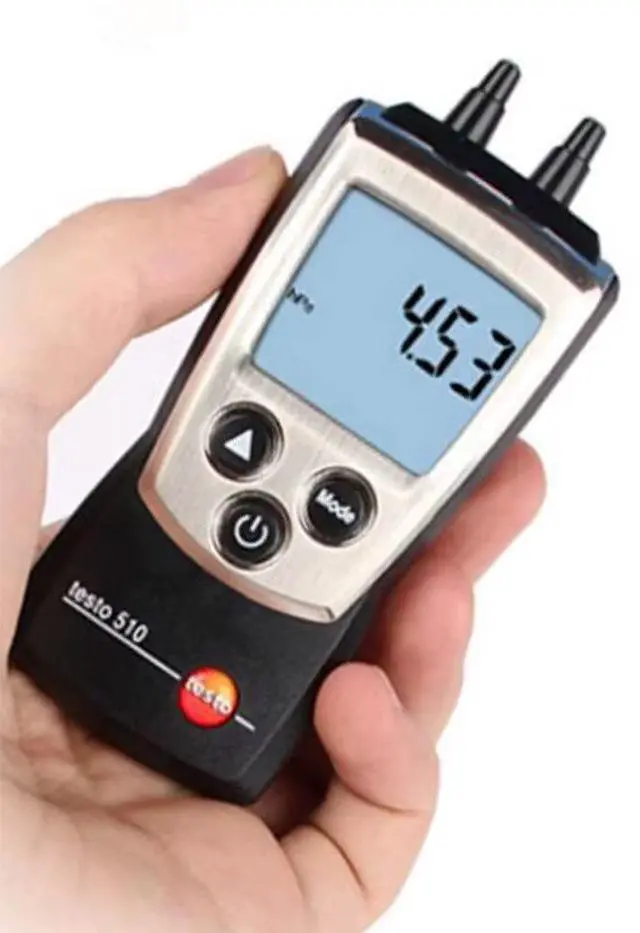

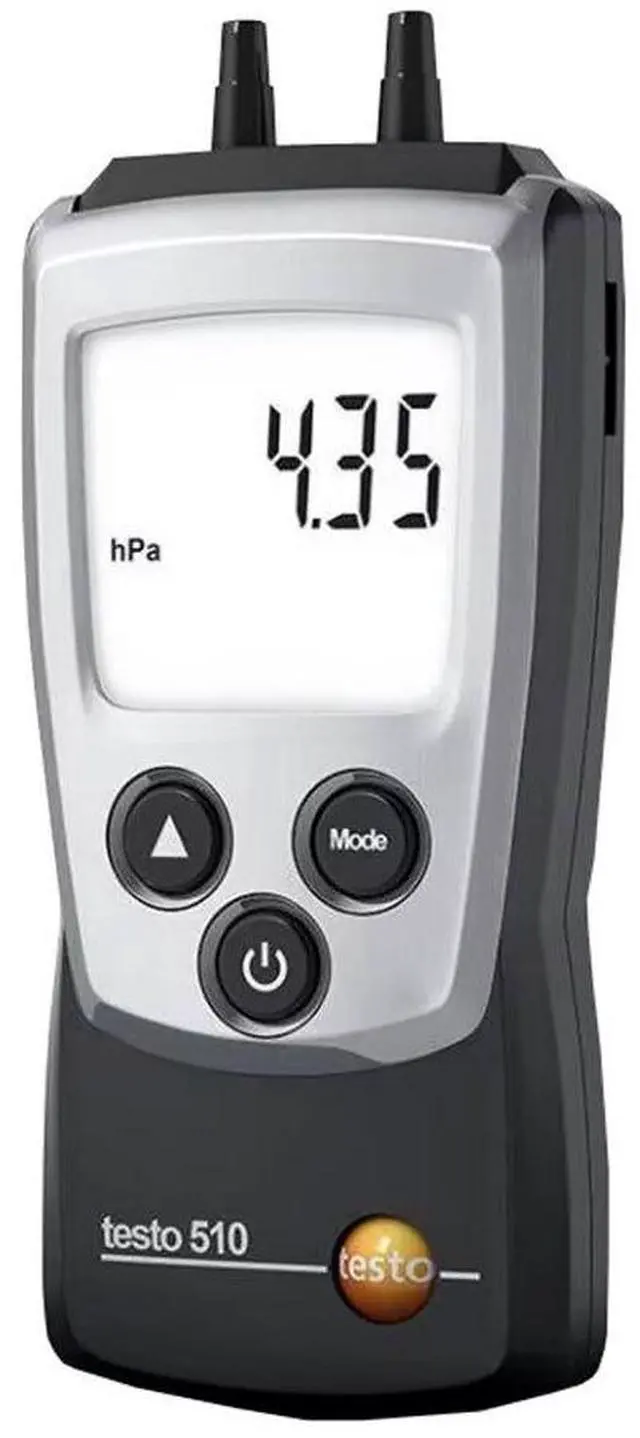

With the testo 510, performing system tests has never been easier using our single, easy to use, rugged, compact digital manometer. Its small form factor, bright backlit display, and magnetic backing will enable the 510 to be used in a wide variety of applications.
Features:
- Pocket-sized temperature-compensated differential pressure measurement
- Illuminated display
- Magnets on the rear allow hands-free work
- 50 hours of battery life
- 10 selectable units
- Flow measurement possible with a Pitot tube (available as an option)
Description:

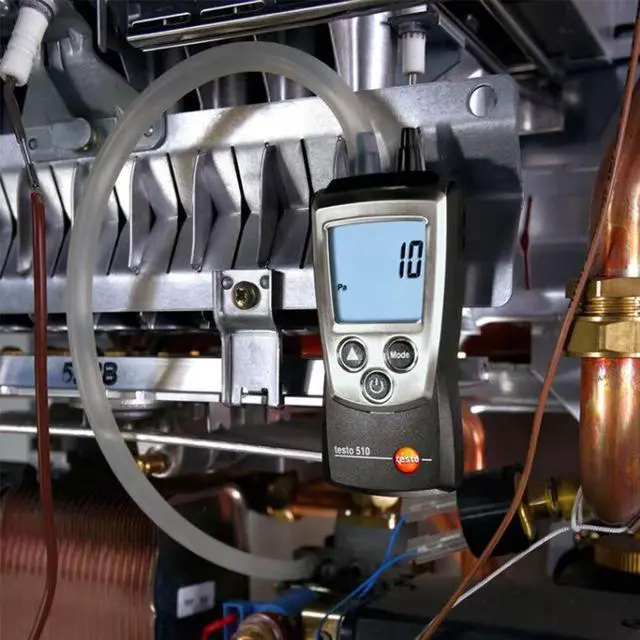

The testo 510 digital manomenter is an all in one, low pressure measurement solution. The 510 can measure total external static pressure, differential pressure, duct velocities, manifold pressures, and air flow with pitot tube (optional).
- 0-40 in. H2O pressure measurement range
- Temperature compensated pressure sensor
- Magnetic backing for hands free use

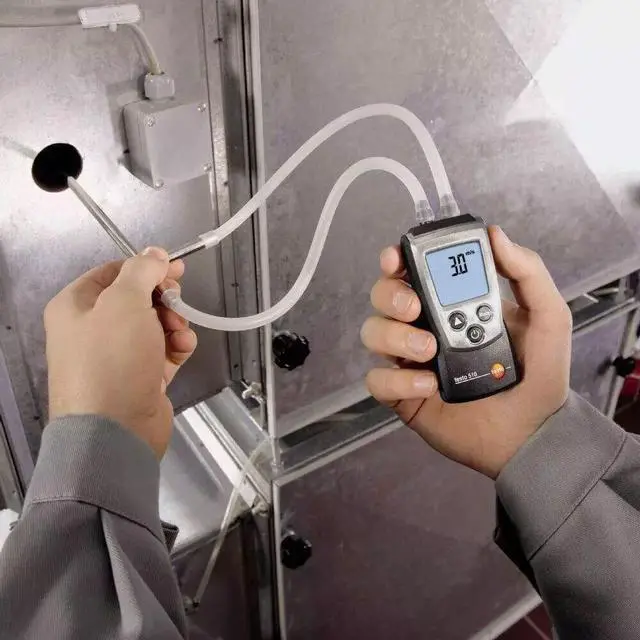

- Air flow measurement with optional pitot tube
- User adjustable air density compensation
- Protective cap for safe storage
Delivery Scope
testo 510, belt pouch, 2 hoses, wrist strap, certificate of conformity
Technical data:
General technical data
| Dimensions | 5 x 2 x 1 in. / 119 x 46 x 25 mm |
| Operating temperature | 32.0° to 122.0 °F / 0 to +50 °C |
| Protection class | IP40 |
| Seceltable units | hPa, mbar, Pa, mmH2O, inHO, inHg, mmHg, psi, m/s, fpm |
| Maximal static pressure | 7.252 psi / 500 mbar |
| Measuring rate | 0.5 sec |
| Battery type | 2 AAA batteries |
| Battery life | 50 h (average, without display illumination) |
| Storage temperature | -40.0° to 158.0 °F / -40 to +70 °C |
| Weight | 3 oz. (with batteries and protective cap) / 90 g (with batteries and protective cap) |
General technical data
| Measuring range | 0 to 40 InHO / 0 to 100 hPa | ||
| Accuracy | ±0.02 InHO (0.12 to 0.40 InHO) / ±0.05 hPa (0.31 to 1.00 hPa) | ±0.01 InHO (0 to 0.12 InHO) / ±0.03 hPa (0 to 0.30 hPa) | ±(0.0 InHO + 1.5 % of mv) (0.40 to 40 InHO) / ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa) |
| Resolution | 0.00 InHO / 0.01 hPa |
