Testo 550s Digital Manifold Basic Kit for Air Conditioning and Cooling System 0564 5501 01
- Features:
- All results at a glance thanks to the large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, rugged housing with IP 54 protection class
- Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth® connection, testo Smart App for documentation and lots more

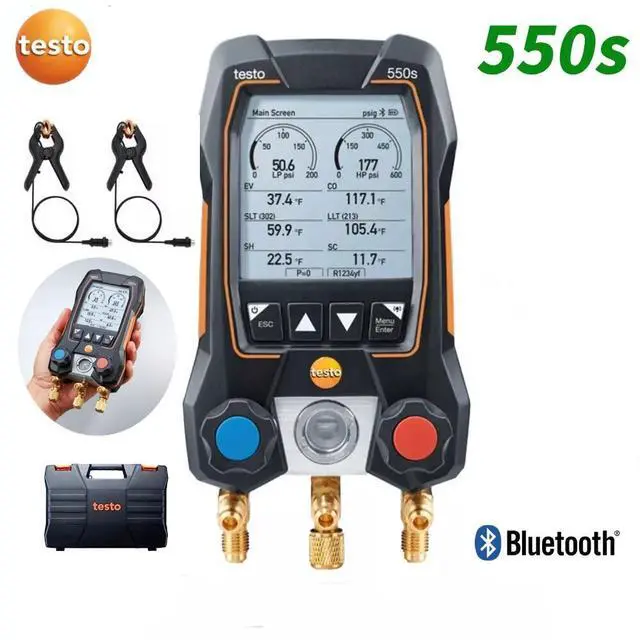

- In the kit: testo 550s smart digital manifold with Bluetooth and 2-way valve block, 2 x clamp temperature probes (wired, NTC), case
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
overview:
With this kit, youll be ready to start your measurements in the commissioning, servicing and maintenance of refrigeration and air conditioning systems and heat pumps straight away: You will get the testo 550s smart digital manifold with Bluetooth and 2-way valve block, two wired clamp temperature probes (NTC) and a rugged transport case. Additional Bluetooth probes, e.g. for wireless measurements of temperature and vacuum, are available separately.
*A2L Refrigerant Compliant*
Features:
- All results at a glance thanks to the large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, rugged housing with IP 54 protection class
- Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth® connection, testo Smart App for documentation and lots more
- In the kit: testo 550s smart digital manifold with Bluetooth and 2-way valve block, 2 x clamp temperature probes (wired, NTC), case
Description:
Delivery Scope
testo 550s digital 2-way manifold including batteries (4 x AA) and calibration protocol
Clamp temperature probe kit (includes 2 x clamp probes NTC)
Transport case
testo Smart App (free download)
Instruction manuals
Technical data:
Temperature
| Measuring range | -58° to 302 °F / -50 to +150 °C |
| Accuracy | ±0.9 °F / ±0.5 °C |
| Resolution | 0.1 °F / 0.1 °C |
| Probe connection | 2 x plug-in (NTC) |
Pressure measurement
| Measuring range | -15 to 870 psi / -1 to 60 bar |
| Accuracy | ±0.5 % Fs |
| Resolution | 0.14 psi / 0.01 bar |
| Probe connection | 3 x 7/16" UNF |
| Overload rel. (high pressure) | 943 psi / 65 bar |
General technical data
| Weight | 29.14 oz. / 826 g |
| Dimensions | 8.27 x 4.76 x 2.36 in. / 210 x 121 x 60 mm (LxWxH) |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Protection class | IP54 |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | Black |
| Auto-off | 10 min* |
| Battery life | 250 h with no illumination, no Bluetooth®; 100 h with illumination and Bluetooth® |
| Battery type | 4 x AA batteries |
| Data transfer | Bluetooth® |
| Radio range | 492.12 ft. / 150 m |
| Refrigerants in instrument | R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (HO); R744 (CO) |
| Refrigerants update via App | R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22 |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
| * when not connected via Bluetooth |
General technical data
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
