PN532 NFC Development Board RFID Card Reader Module 13.56MHz 3.3V for Arduino
- Electronic
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:

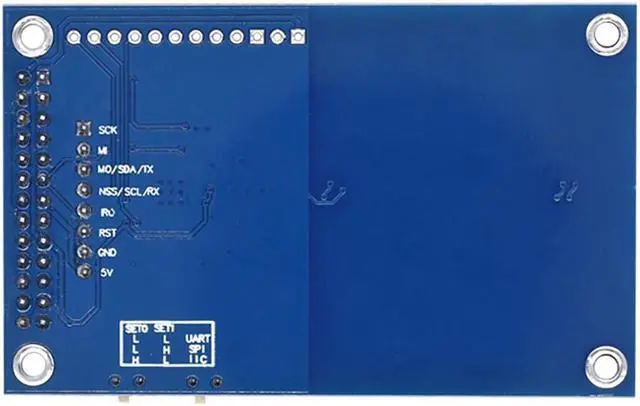

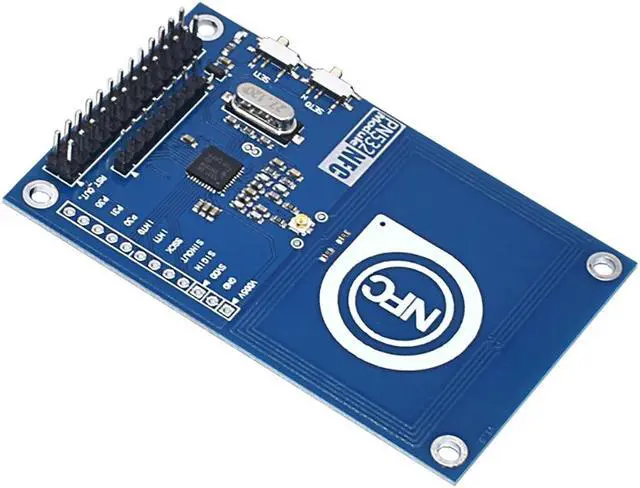

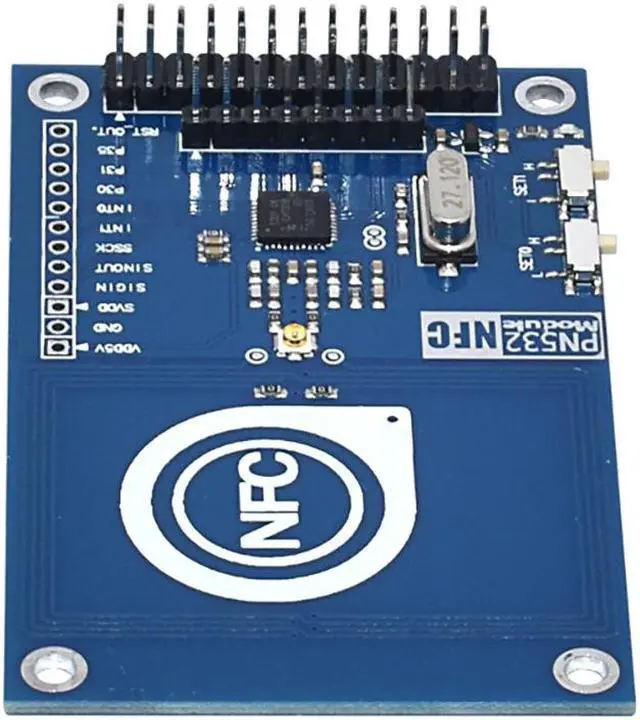

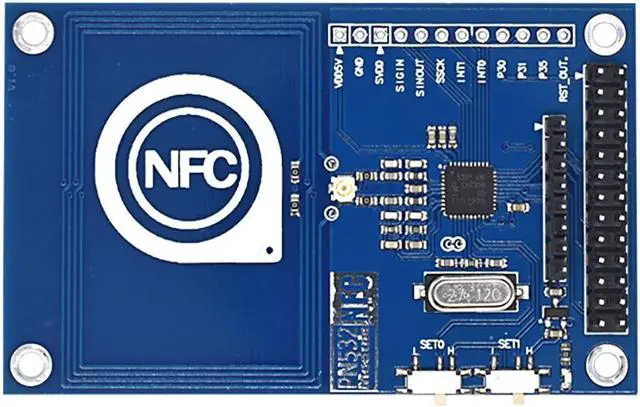

ITEAD PN532 NFC module, as its name implies, is based on PN532 chip and used for 13.56MH z near field communication. The module is equipped with onboard antenna, thus no external antenna coil is needed. It is compatible with SPI, IIC and UART interface for communication. With NFC library support for Arduino and Raspberry Pi offered by us, it is quite convenient for development of products with NFC functions.
Features:
1. Longest effective communication distance of 3 cm
2. Supports switching of SPI, IIC and UART interface.
3. Can be used for 13.56M non-contact communication
4. Compatible with ISO14443 Type A and Type B standards
Specifications:
IC: NXP PN532
Operating Voltage: 3.3V
Power Supply Voltage: 3.3 ~ 5.5V
Max Supply Current: 150mA
Working Current (Standby Mode): 100mA
Working Current (Write Mode): 120mA
Working Current (Read Mode): 120mA
Indicator: PWR
Interface: SPI Interface, Std Raspberry Pi 20pins Interface
ITEAD PN532 NFC module, as its name implies, is based on PN532 chip and used for 13.56MH z near field communication. The module is equipped with onboard antenna, thus no external antenna coil is needed. It is compatible with SPI, IIC and UART interface for communication. With NFC library support for Arduino and Raspberry Pi offered by us, it is quite convenient for development of products with NFC functions.
Features:
1. Longest effective communication distance of 3 cm
2. Supports switching of SPI, IIC and UART interface.
3. Can be used for 13.56M non-contact communication
4. Compatible with ISO14443 Type A and Type B standards
Specifications:
IC: NXP PN532
Operating Voltage: 3.3V
Power Supply Voltage: 3.3 ~ 5.5V
Max Supply Current: 150mA
Working Current (Standby Mode): 100mA
Working Current (Write Mode): 120mA
Working Current (Read Mode): 120mA
Indicator: PWR
Interface: SPI Interface, Std Raspberry Pi 20pins Interface
