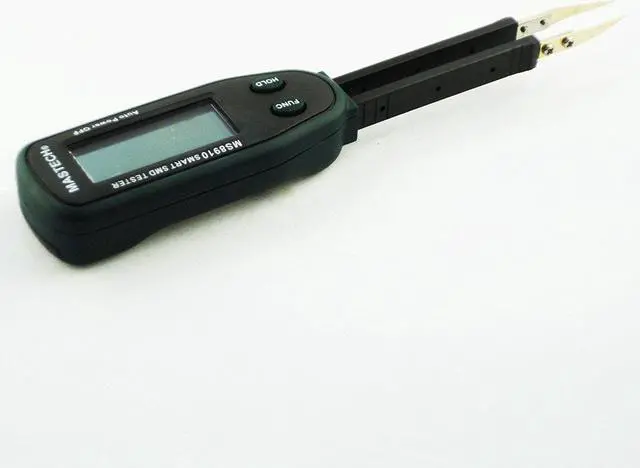

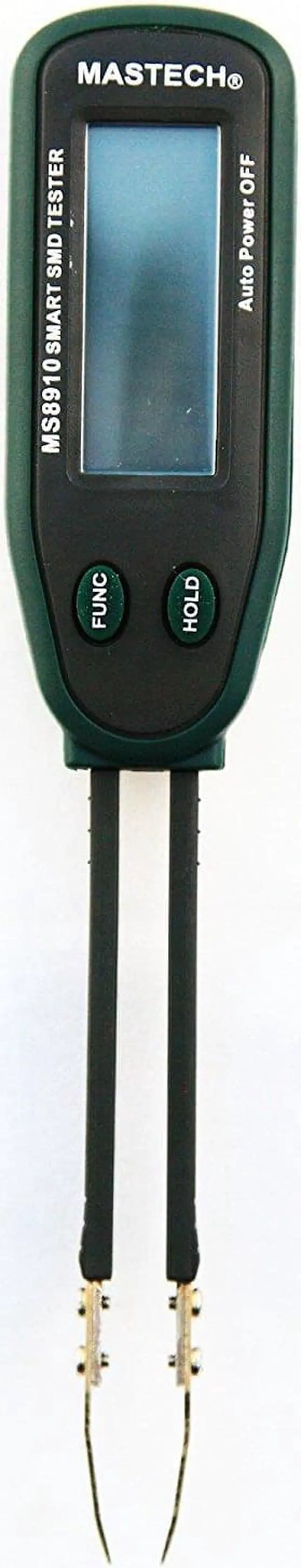

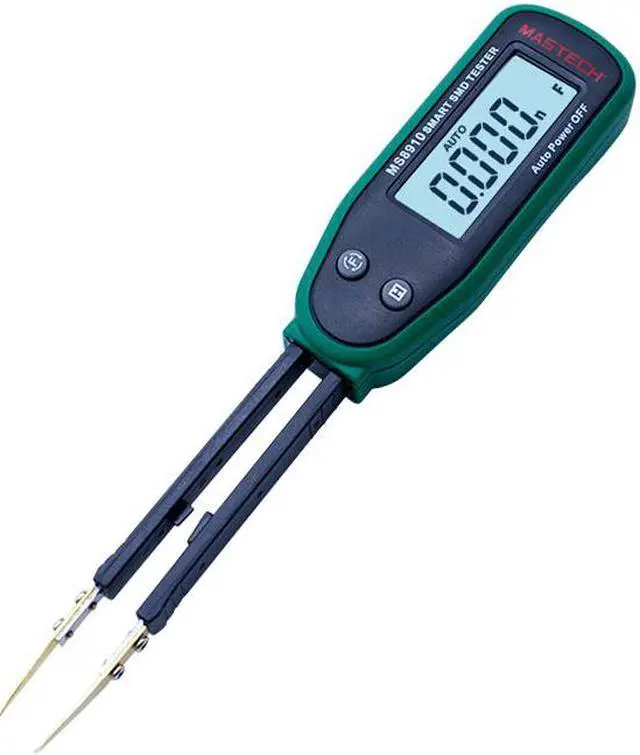

Mastech MS8910 SMD R/C Resistance Capacitance Meter Tester Auto Scan

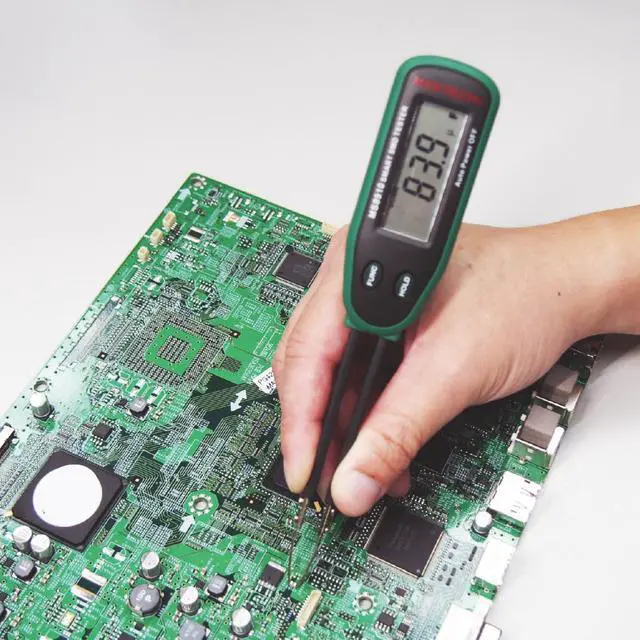

The MS8910 gives users an easy way to sort and evaluate loose components and to perform on-board measurements and debugging. This convenient, compact tool is handheld, battery operated, and is specially used to measure SMDs (Surface Mounting Devices) such as Chip type resistors, Chip type capacitors and diodes. Surface mount devices are usually tiny and without wire leads, making it much more difficult to test and identify SMD than conventional components. The precise tips of this tester are made of non-magnetic steel and are able to pick up and reliably contact even the smallest SMD components, or take measurements from the device already mounted on a board.

The probe can also be used to test conventional components with wire leads too short to insert into the test terminals. Moreover, the tester features a continuity checking function. The tester automatically identifies the passive component as indicated above. Therefore, the measurement are allowed by fully automatic detection. The tester is designed to meet IEC1010-1 standard and Stipulation of 2-Population Grade. Conforms to the following

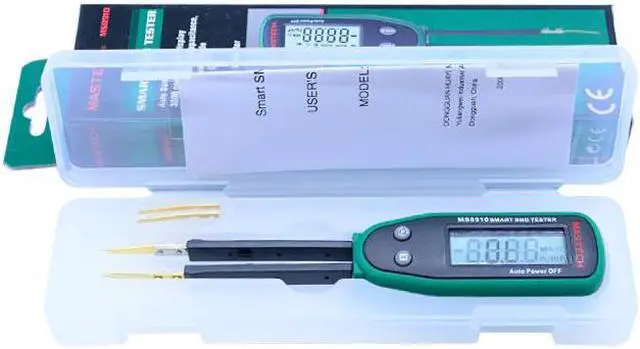

European Union’s Requirement: CE regulation 89/336 (EMC Electromagnetic Compatibility). The entire outer surface of the Tester case has been with thermo plastic elastomer, and the two testing pins has been gold-plated, so that it is reduce pin contact resistance and prevent to get rusty. This operating instruction covers information on safety and caution, so please read relevant information carefully and observe all the warming and note strictly. An instruction manual is included. A digital version of the manual can be downloaded from the Mastech website.
Specifications: Display 3000 counts, Auto Ranging, Auto Power Off, Data Hold, Low Battery Display, Auto Scanning, Diode Check Open Voltage 2.8V, Diode Testing Current 2mA, Continuity Buzzer <30?.
