    Auto-Ranging True RMS Digital Multimeter 6000 Counts & Backlit LCD Display, Measures AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode, Continuity

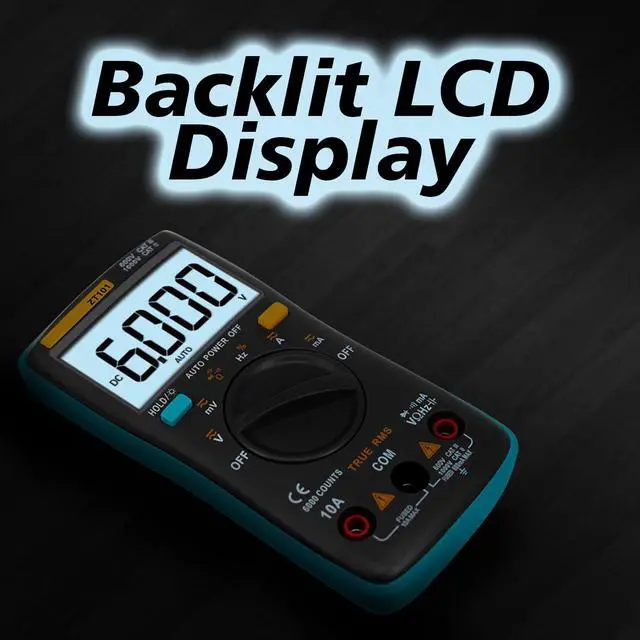

    • Battery powered, True RMS auto-ranging digital multimeter with 6000 counts and backlit LCD display
    • Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, and continuity

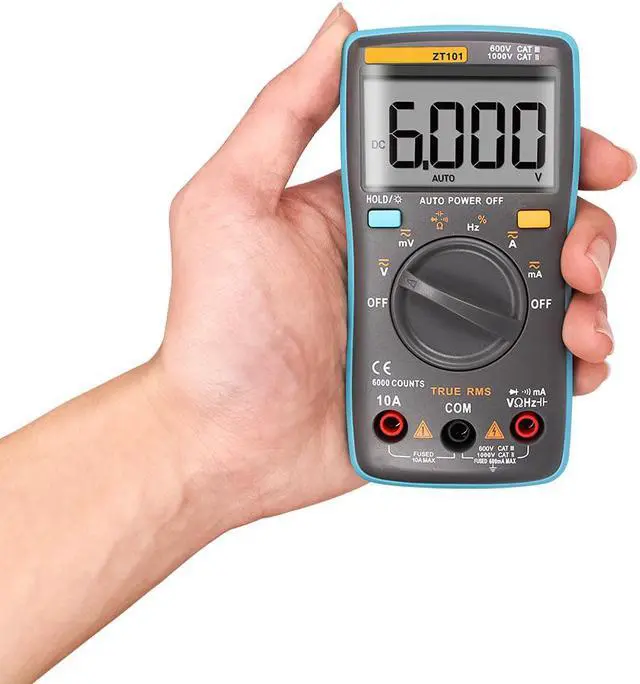

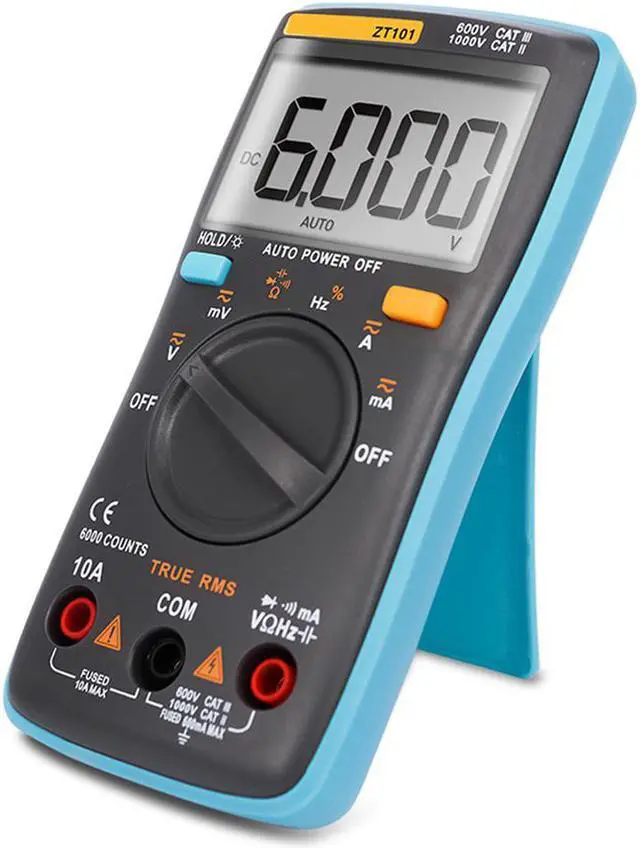

    • Compact and lightweight for carrying in your hand or pocket, also features a fold out stand for easy viewing

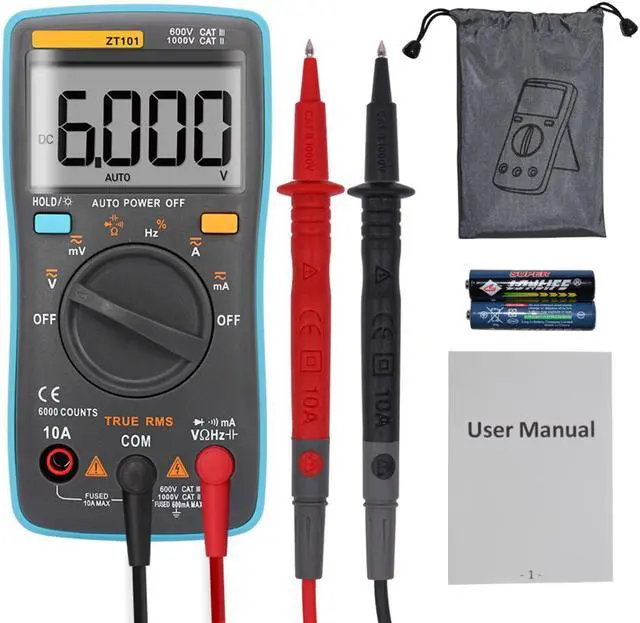

    • Comes with leads, drawstring carry bag, and instruction manual
    • Powered by 2x AAA batteries (included)
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

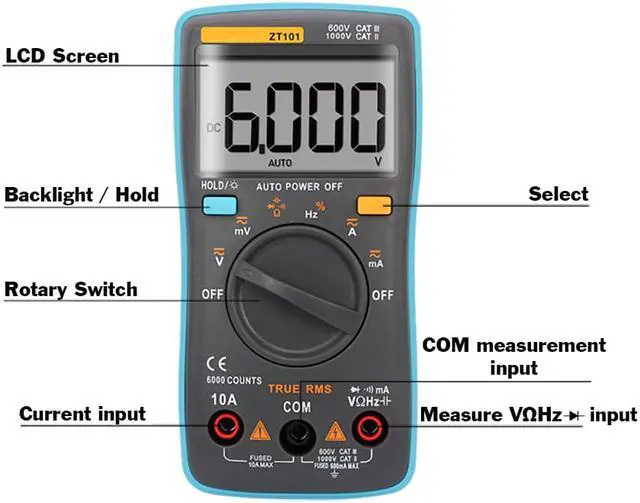

    The ZT101 is a battery powered, True RMS auto-ranging digital multimeter with 6000 counts and backlit LCD display. It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, and continuity. It is compact and lightweight for carrying in your hand or pocket and also features a fold out stand for easy viewing. It is powered by 2x AAA batteries (included) and comes with leads, drawstring carry bag, and instruction manual. Measures 2.55" x 1.25" x 5.11" and weighs about 4 ounces (4.5 ounces with batteries).

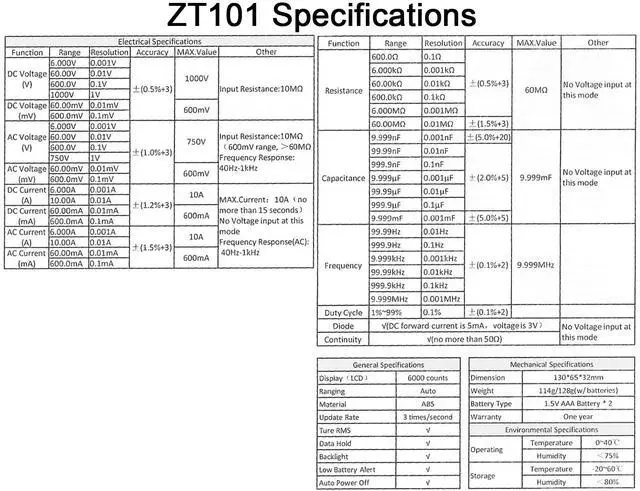

    Specifications:
    DC voltage measurement range: 1000V to 0.1mV
    AC voltage measurement range: 750V to 0.1mV
    DC current measurement range: 10A to 0.1uA
    AC current measurement range: 10A to 0.1uA
    Resistance measurement range: 0.1 to 60MO
    Width ratio measurement range: 1% to 99%
    Frequency measurement range: 10MHz to 1Hz
    Capacitance measurement range: 6000uF to 10pF
    Display: 6000 counts
    Ranging: Auto
    True RMS measurement
    Material: ABS
    Update Rate: 3 times/second
    Data Hold
    Backlight
    Low Battery Alert
    Auto Power Off
    Measurement mode: Double-integral style A/D transform
    Polarity automatic recognition
    10A large current measurement, mA level small current measurement
