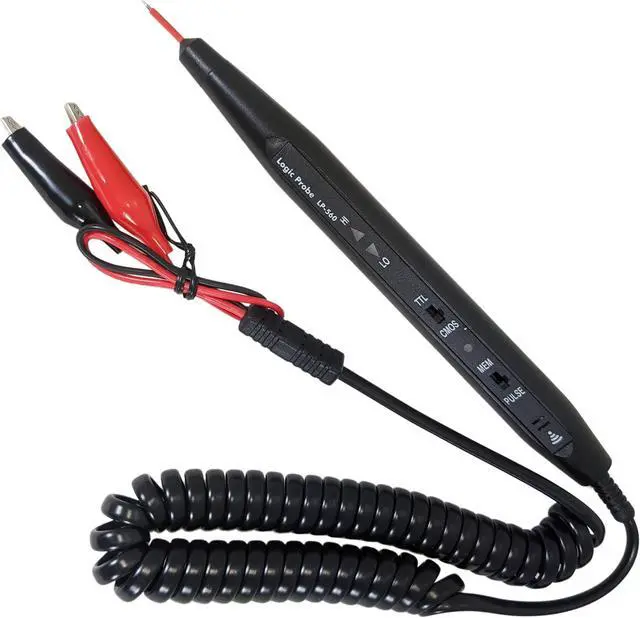

Main image of Circuit Powered Logic Probe with Two Frequency Audio Beeper, TTL, LSI, CMOS Compatible, Maximum Input Frequency of 25ns (20MHz)

Alt view image 2 of 2 - Circuit Powered Logic Probe with Two Frequency Audio Beeper, TTL, LSI, CMOS Compatible, Maximum Input Frequency of 25ns (20MHz)

Shop All Electronix Express Products | Visit Science Purchase Store

Circuit Powered Logic Probe with Two Frequency Audio Beeper, TTL, LSI, CMOS Compatible, Maximum Input Frequency of 25ns (20MHz)

Circuit powered logic probe designed for troubleshooting fast logic circuits
Tests all logic families including TTL, LSI, and CMOS
Minimum pulse width detection of 25 nanoseconds and a maximum input frequency of 20MHz

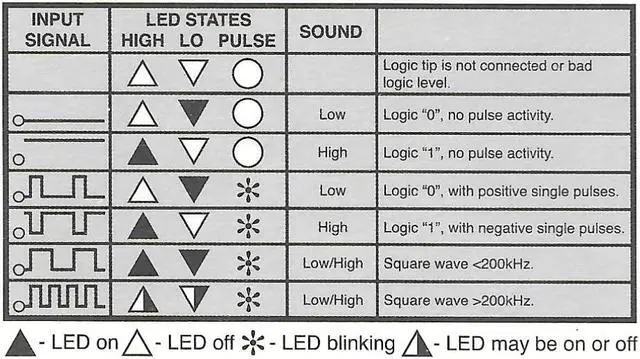

Two sound audio beeper and LED indicators for Hi and Low
Switch-selectable pulse detection or pulse memory function

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

This circuit-powered beeping logic probe is designed for troubleshooting fast logic circuits. It features TTL, LSI, and CMOS compatibility, switch-selectable pulse detection or pulse memory function, LED indicators for Hi and Low, and Pulse/Memory, minimum pulse width detection of 25 nanoseconds and a maximum input frequency of 20MHz.

Specifications:
Working Voltage: 4-18VDC
Frequency Response: 20MHz
TTL Logic "1" (HI LED): >2.3±0.2V DC
TTL Logic "0" (LO LED): <0.8V±0.2V DC
CMOS Logic "1" (HI LED): >70% Vcc±10%
CMOS Logic "0" (LO LED): <30% Vcc±10%
Minimum Detectable Pulse width: 25ns
Input Impedance: 1MO
Input Overload Protection: ±220V AC/DC (15 sec)
Supply Voltage Protection: ±20V DC
Pulse Indicator Flash Time: 500ms
Operating Temperature: 32° - 122° F
