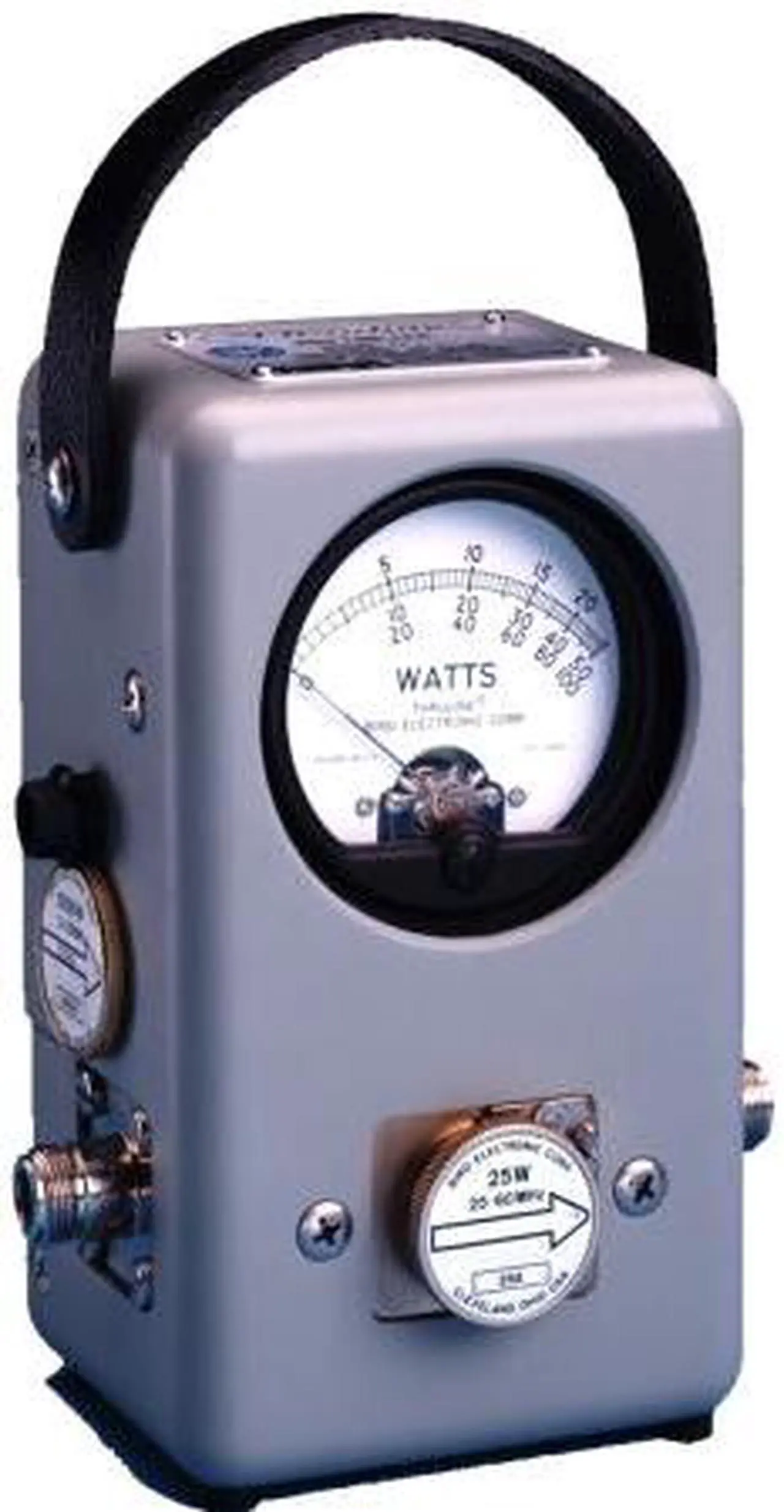

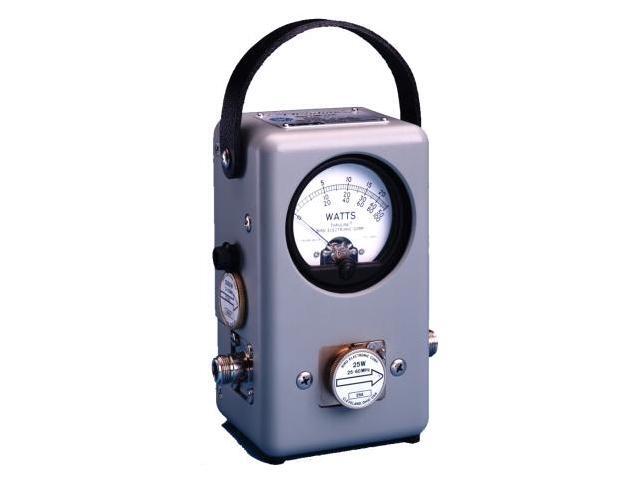

Bird Technologies - 43 - Bird 43 Bird General Purpose Thruline Wattmeter

Measure both forward and reflected CW power in coaxial transmission lines under any load condition. With a full-scale accuracy of ± 5%, the Model 43 Thruline ® Wattmeter is a field-proven portable, insertion-type instrument that accurately measures RF power with low added VSWR and insertion loss. Quick change type connectors and a full range of plug-in elements provide a wide choice of frequency ranges and power levels for amazing flexibility. Two extra elements can be stored in the housing. Easy to use and simple to service in the field. Accurate CW field power measurement over 450 kHz to 2.7 GHz and 100 mW to 10 KW.

Uses industry standard Bird elements Rugged metal housing for the most demanding environments QC connectors minimize the need for adaptors when making critical measurements Table 1 Standard Plug-in Elements required (sold separately - call for selection and pricing). Frequency Range 0.45 -2700 MHz Item Weight 3 lb Item Width 5.1 in Meter Type Handheld Operating Bandwidth 0.45 to 2700 MHz Item Length 6.9 in Maximum Power 10000 W Power Range 100 mW to 10 kW using Bird Plugin Elements Item Height 3.6 in For Wattmeter 43 Display Type Analog Qty/ Uom 1 Each Accuracy +/- 5% of full scale
