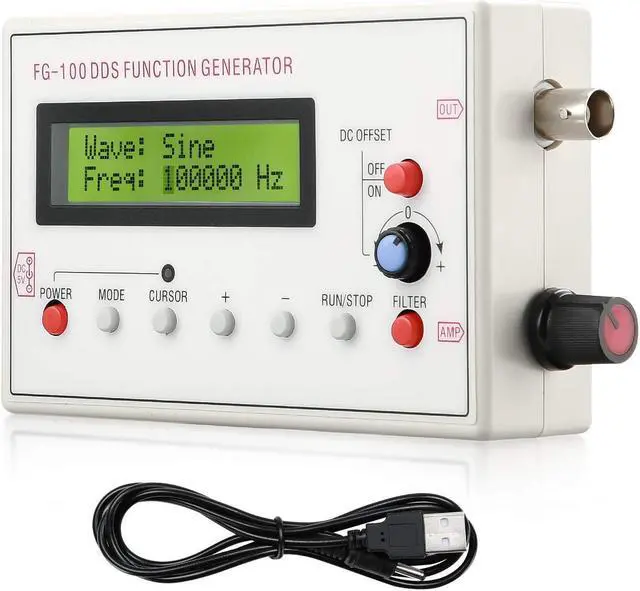

1HZ-500KHZ DDS Functional Signal Generator, Seesii DDS Function Low Frequency Signal Generator Sine/Triangle/Square/Sawtooth Waveform

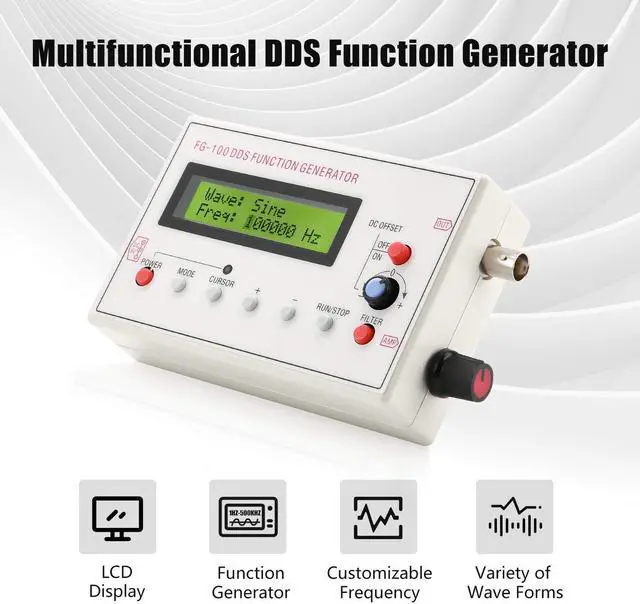

- 1HZ-500KHZ DDS signal generator is small but has many functions, easy to operate and carry. The power supply can be either AC/DC adaptor or a battery.
- It can be used with oscilloscope to test and debug electronic circuit, the frequency response of audio amplifier and impulse response,It also can calibrate the sweep time factor of oscilloscope.
- The square waveform is suitable for oscilloscope attenuator and the adjustment of probe impulse response.
- Have a filter (can be opened and closed) to suit the output of sine wave and pulse wave.

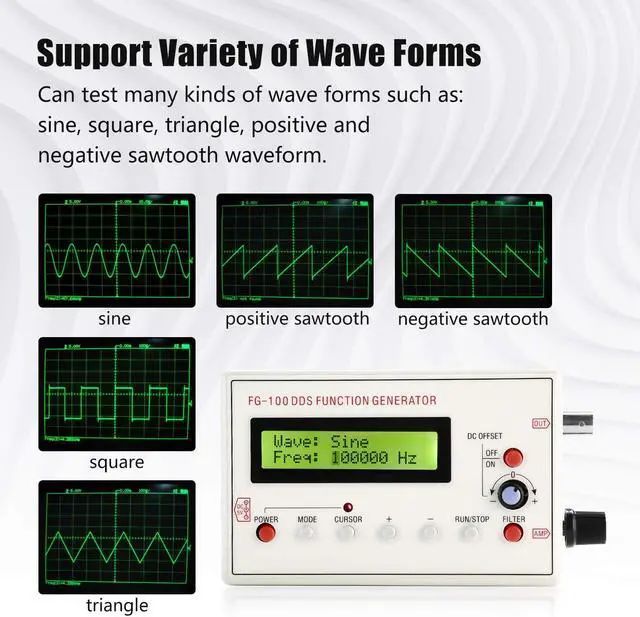

- This functional signal generator can test many kinds of wave forms such as: sine, square, triangle, positive and negative sawtooth waveform. It is especially designed for those professional worker.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Output Signal Types Sine, square, triangle, positive and negative sawtooth waveform
Frequency Range Sine wave is 1Hz-500kHz, other kinds of waveforms is 1Hz-20kHz
Display LCD Colorful
Resolution 1Hz
Sine Wave Distortion Under 1kHz < 1%, over 1kHz <0.5%
DC Offset Range ±10V (Can be closed)
Output Range ±10V(P-P)
Output Impedance 50ohm
Power Supply Voltage DC 3.5 -10V. 5V AC/DC adaptor

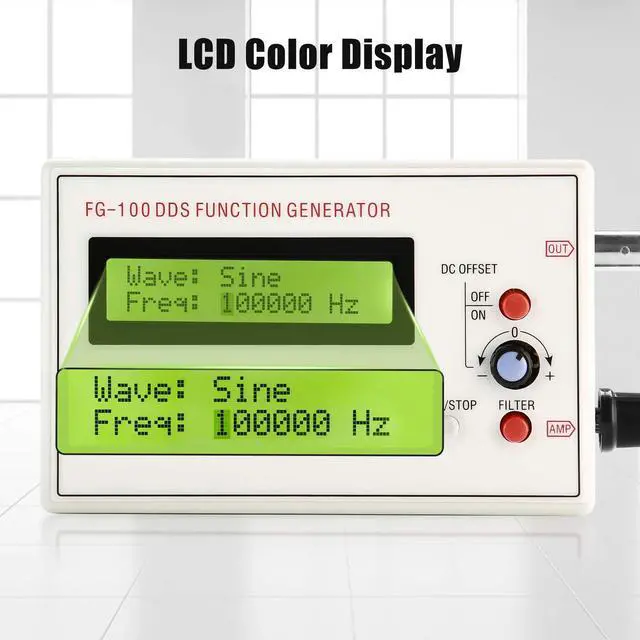

LCD Colorful Display
The DDS generator with LCD colorful screen that displays the sound wave type and frequency range, support to set and adjust the frequency by yourself.

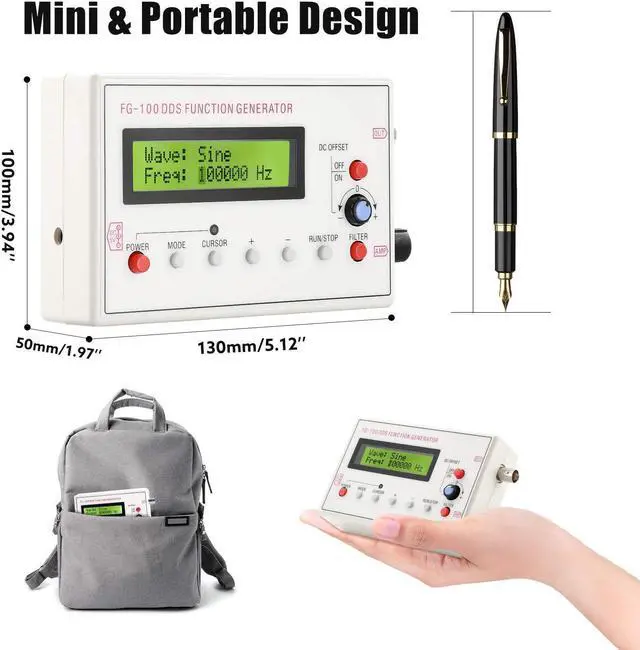

Mini & Portable Design
The size of the product is 130* 100* 50mm/ 5.12 * 3.94 * 1.97 inch
Mini and portable, full function, easy to carry and operate.
Package List
1X Signal Generator
1X USB to DC Power Cable
1X User Manual
