MULTI-PURPOSE CLAMP METER WITH AUTO RANGE: Accurate AC/DC Voltage, AC Current, Diode, Resistance and NCV Test.
WITH CONTINUITY TEST & DATA HOLD FUNCTION: Continuity Test, Data Hold & Max Value Test. Auto Power off Function. Maximum Display Value: 2000.
CONTINUITY TEST & OVERLOAD PROTECTION: Designed to Safely and Accurately Confirm the Circuit Conducts Electricity with Low Voltage Indication and Overload Protection. Shows "OL" on the LCD If Overrange.

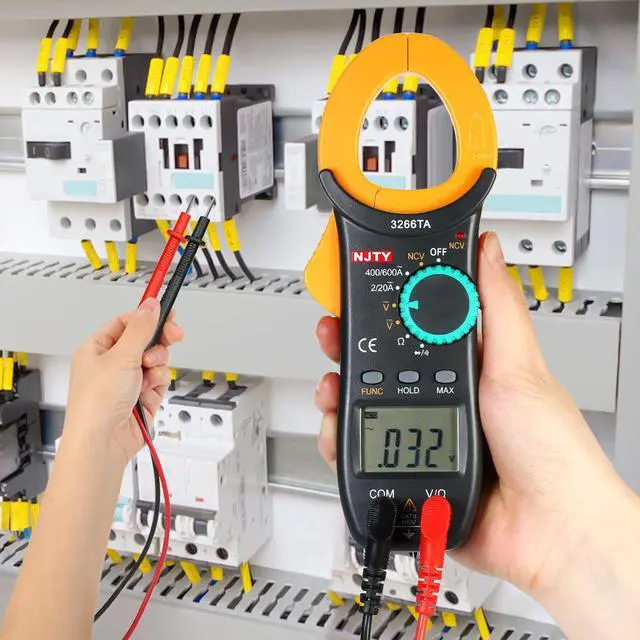

EASY TO USE AND READ: Small and Portable to Carry and Use. High Resolution, Large & Clear LCD Screen Improves Visibility. Widely used in Your Life. Suitable for Electrical Equipment Testing and Maintenance.

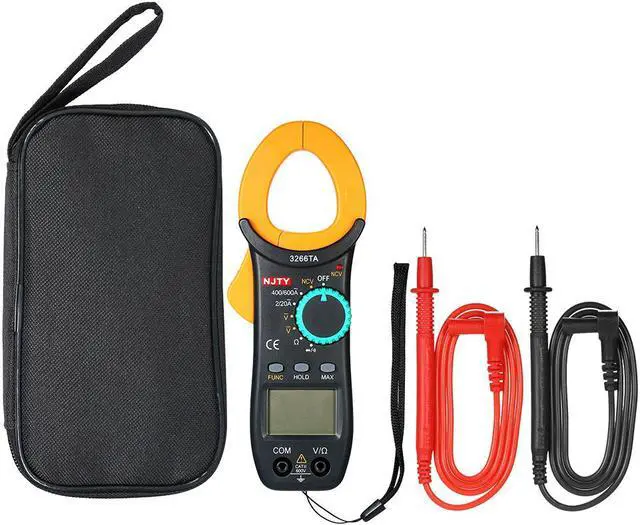

WHAT YOU WILL GET: 1 * Digital Clamp Meter, 2 * Test Leads, 1 * User Manual(English), 1 * Storage Bag. LCD Display with Backlight, Convenient to Operate and Read.
| Material |
ABS |
| Range Control |
Auto Range |
| Display Count |
2000 (3 1/2 LCD) |
| Diode |
Around 1.5V |
| Sampling Speed |
approx. 3 times / second |
| DC Voltage Range |
200mV/2V/20V/200V/600V |
| DC Voltage Max Resolution |
0.1mV |
| AC Voltage Range |
2V/20V/200V/600V |
| AC Voltage Max Resolution |
1mV |
| AC Current Range |
2A/20A/200A/400A |
| AC Current Max Resolution |
1mA/10mA/0.1A |
| Package List |
1 * Clamp Meter 2 * Test Lead 1 * Storage Bag |
Want to own the professional clamp meter to test AC/DC voltage AC current, resistance or diode? You should try this clamp meter. This LCD Digital AC/DC clamp multimeter is a portable and professional clamp meter which has almost everything you need for a full multimeter. It is widely used for field, laboratory, shop and home applications.

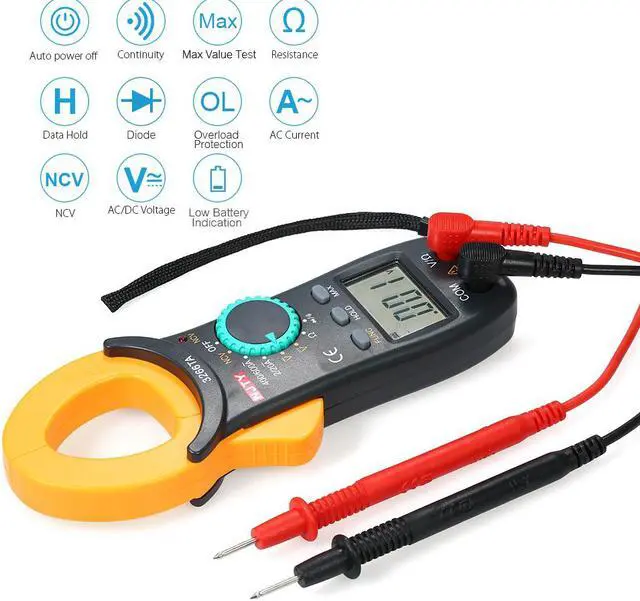

Features: MULTI-PURPOSE CLAMP METER WITH AUTO RANGE: Accurate AC/DC Voltage, AC Current, Diode, Resistance and NCV Test. WITH CONTINUITY TEST DATA HOLD FUNCTION: Continuity Test, Data Hold Max Value Test. Auto Power off Function.
Maximum Display Value: 2000.
CONTINUITY TEST OVERLOAD PROTECTION: Designed to Safely and Accurately Confirm the Circuit Conducts Electricity with Low Voltage Indication and Overload Protection. Shows OL on the LCD If Overrange.
EASY TO USE AND READ: Small and Portable to Carry and Use. High Resolution, Large Clear LCD Screen Improves Visibility. Widely used in Your Life. Suitable for Electrical Equipment Testing and Maintenance.
WHAT YOU WILL GET: 1 * Digital Clamp Meter, 2 * Test Leads, 1 * User Manual (English), 1 * Storage Bag. LCD Display with Backlight, Convenient to Operate and Read.
Specifications: Brand
Name: NJTY
Material: ABS
Color: Black + Orange
Range Control: Auto Range
Sampling Speed: approx. 3 times / second DC
Voltage Range: 200mV/2V/20V/200V/600V
DC Voltage Max Resolution: 0.1 mV AC
Voltage Range: 2V/20V/200V/600V
AC Voltage Max Resolution: 1mV
Resistance Range: 200O/2kO/20kO/200kO/2MO/20MO Resistance
Max Resolution: 0.1 O AC
Current Range: 2A/20A/200A/400A AC
Current Max Resolution: 1mA/10mA/ 0.1A
Operating Environment: Temperature 0? to 40?, Humidity 75% RH
Storage Environment: Temperature -10? to 50?, Humidity 80%
RH General Characteristic: Display
Count: 2000 (3 1/2 LCD) Max Clamp
Opening Size: 30mm / 1.2 in
LCD Screen Size: 35 * 23mm / 1.4 * 0.9 in
Diode: Around 1.5V
Continuity: YES
Data Hold: YES
Overload Indication: Shows OL on the LCD Auto
Power Off: YES
Continuity Buzzer: YES Low
Battery Indication: YES
Overload Protection: YES
Input Impedance: 10MO

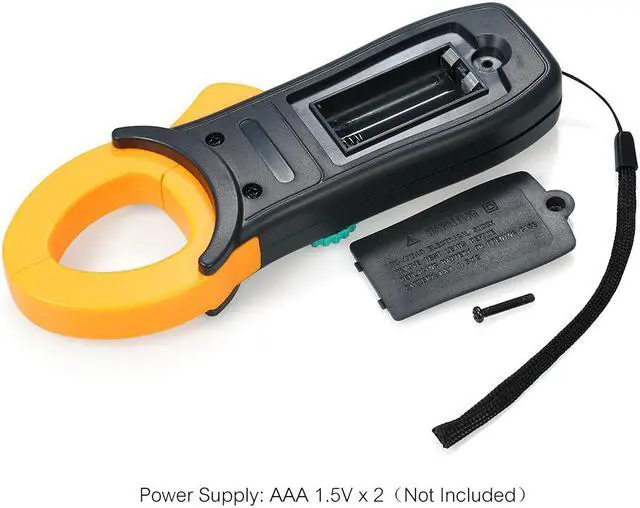

Power: AAA 1.5V x 2(Not Included)
Product Net Weight: 129g / 4.5 oz

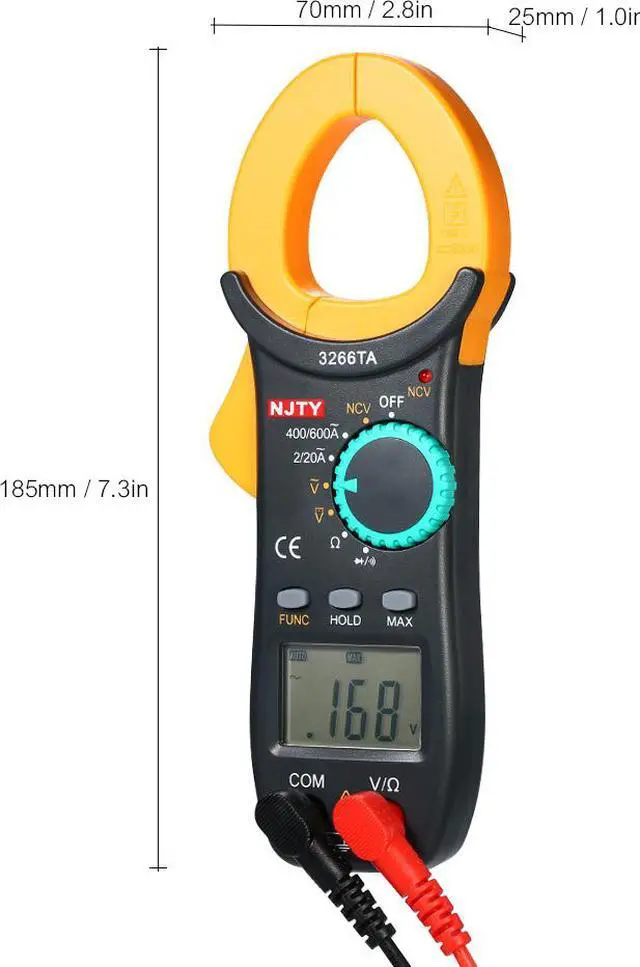

Product Size: 185 * 70 * 25mm / 7.3 * 2.8 * 1.0 in
Package Size: 21.5 * 11 * 4cm / 8.5 * 4.3 * 1.6 in
Package Weight: 266g / 9.4 oz
Package List: 1 * Clamp Meter 2 * Test Lead 1 * Storage Bag
