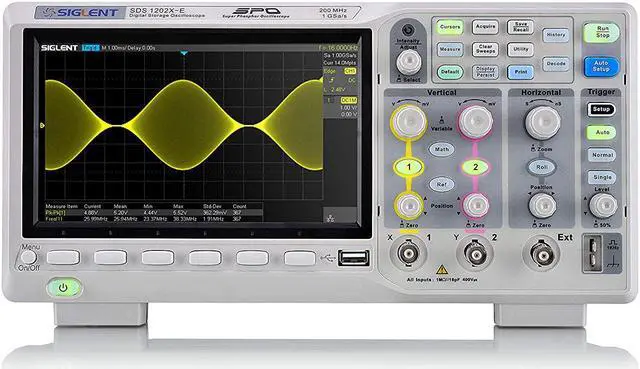

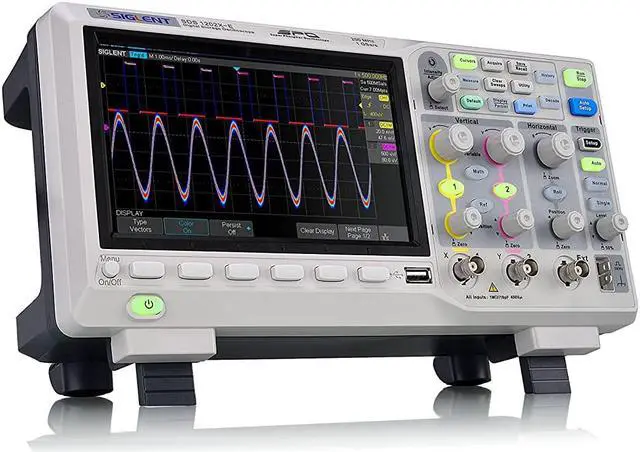

Siglent Technologies SDS1202X-E 200 mhz Digital Oscilloscope 2 Channels, Grey

200Mhz, 1Gsa/s, The SDS1202X-E Series employs a new generation of Spo technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It has a minimum vertical input range of 500 UV/Div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400, 000 frames/sec (sequence mode). it also employs a 256-level intensity Grading display function and a color temperature display mode not found in other models in this Class. Siglents new oscilloscopes offering supports multiple powerful triggering modes including serial bus triggering.

Decoding is standard configuration including IIC, SPI, UART, can, LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1M points FFT math function that gives the sds1000x-e very high frequency resolution when observing signal Spectra. The new design also includes a hardware co-processor that delivers measurements quickly and accurately.

Gate and Zoom Measurement
Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements validity and flexibility.

Hardware-Based High Speed Pass/ Fail Function
The SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40, 000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.

1Mpts FFT
The new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs. Four-channel series support Peaks, Markers, a variety of numbers.

History Waveforms (History) Mode and Segmented Acquisition (Sequence)
Playback the latest triggered events using the history function. Segmented memory collection will store trigger events into multiple (Up to 80, 000) memory segments, each segment will store riggered waveforms and timestamp of each frame.

Serial Bus Decoding Function (Standard)
SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.

True Measurement to 14 M Points
SDS1004X-E can measure all sampled data points up to 14 Mpts. This ensures the accuracy of measurements while the math co-processor decreases measurement time and increases ease-of-use.

Bode Plot (Four Channel Series Only)
SDS1004X-E can control the USB AWG module or control an independent SIGLENT SDG instrument, scan a devices amplitude and phase frequency response, and display the data as a Bode Plot. There is also a Vari-level Mode for accurately measuring Power Supply Control Loop Response (PSRR). It can also show the result lists, and export the data to a USB disk.

Web Control (Four Channel Series Only)
With the new embedded web server, users can control the SDS1004X-E USB WIFI Adapter series only) from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities. The web page has PC and mobile styles that include an embedded virtual control panel
