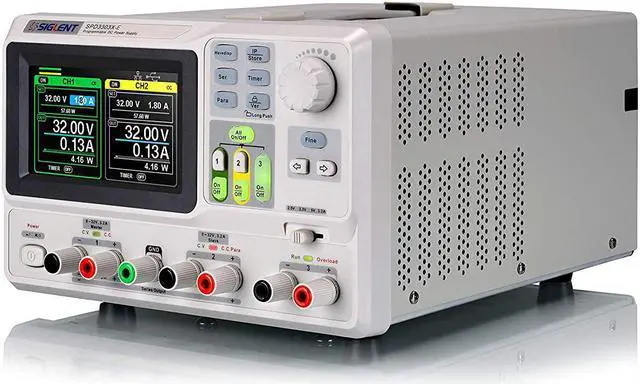

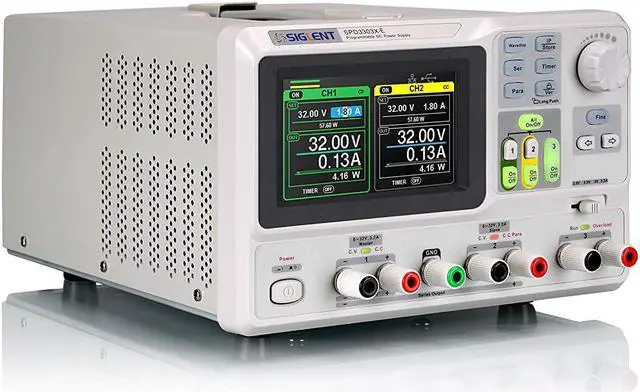

Siglent Technologies SPD3303X-E Triple Output Power Supply
- 3 Independent Controlled And Isolated Outputs
- 32V/3. 2A X 2, 2. 5V/3. 3V/5V/3. 2A X 1, Total Power: 220W
- Output Modes: Independent, Series, Parallel
- Timing Output Function.Trending Graphs
- 3 independently controlled and isolated outputs: Two 32 V/3.2 A, one 2.5 V / 3.3 V / 5 V / 3.2 A × 1, total 220 W
- Timing function provides programmed output steps
- 3 types of output modes: independent, series (60 V max), and parallel (6.4 A max)
- Free PC software:Easypower. Also supports remote programming and includes a LabView driver
- Intelligent temperature-controlled fan effectively reduces fan noise
- Clear graphical interface, with waveform display function
- Five internal groups of system parameter save/recall, supports data storage space expansion
- 5 digit Voltage/4 digit Current Display, Minimum Resolution: 1 mV/1 mA (SPD3303X)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Series/parallel/independent mode function
Series and parallel function allows two channels combined into one output with more power output capability, extending the application range. Each of 3 channels power can be turned on or off independently and also can be turned all on or all off.
Panel displays the timing output
Through front panel operation, five groups of timing settings and output control can be displayed, which provides users with simple power programming functionality. Also, by connection to Siglents EasyPower PC software, a full range of communication and control features can be used.
Save/Recall setting parameters
The SPD3000X/X-E series programmable power supply can save or recall 5 groups of setting parameters in internal storage and also supports external storage expansion. Settings can be easily recalled if needed.
Series and parallel function allows two channels combined into one output with more power output capability, extending the application range. Each of 3 channels power can be turned on or off independently and also can be turned all on or all off.
Panel displays the timing output
Through front panel operation, five groups of timing settings and output control can be displayed, which provides users with simple power programming functionality. Also, by connection to Siglents EasyPower PC software, a full range of communication and control features can be used.
Save/Recall setting parameters
The SPD3000X/X-E series programmable power supply can save or recall 5 groups of setting parameters in internal storage and also supports external storage expansion. Settings can be easily recalled if needed.
