$299.99
Meet Your Seller

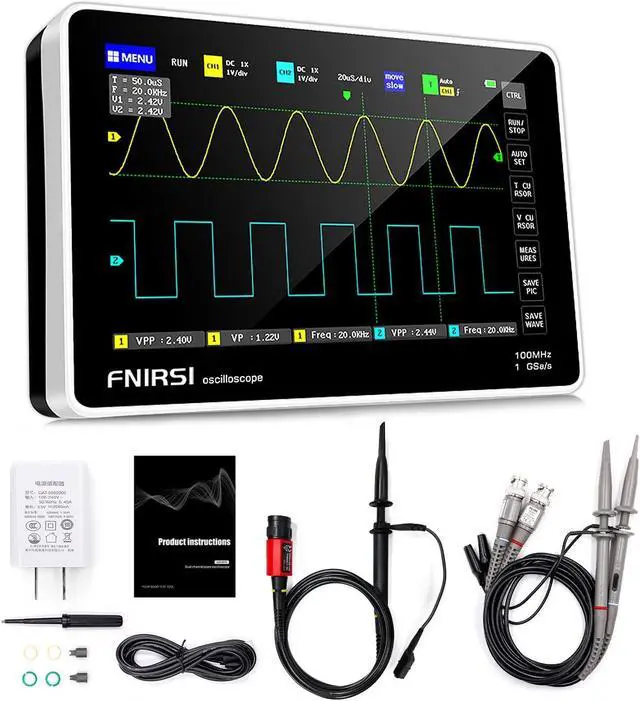

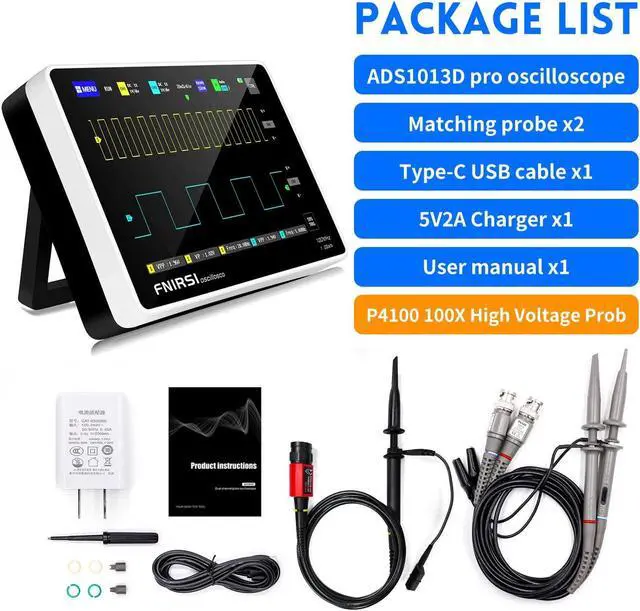

Portable Handheld Tablet Oscilloscope with 100X High Voltage Probe, 2 Channels 100Mhz Bandwidth 1GSa/s Sampling Rate 7" TFT LCD Touch Screen
- Professional Designed: FNIRSI oscilloscope has a real-time sampling rate of up to 1GSA/S and an analog bandwidth of 100MHZ * 2. Fnirsi oscilloscope has a complete trigger function (single/normal/automatic), it can be used freely for both periodic analog signals and aperiodic digital signals.
- Highly Performance: 7 inches, 800 * 480 resolution, bright colors and high contrast. Ultra-thin and easy to carry. Built-in high-voltage protection module,can tolerate a continuous voltage of up to 400V. 6000mAh high-performance lithium battery, can be used continuously for 4 hours after fully charged.
- Easy to Operate: Equipped with efficient one-button automatic device. One-click waveform saving and screenshots. The built-in 1GB storage space can store up to 1000 screenshots 1000 sets of waveform data.Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Easily Measuring: Capacitive screen touch & gesture operation, cursor measurement function, when manually reading amplitude-frequency parameters, you do not need to read the background scale unit and quantity, and you can directly get the peak-to-peak value and frequency without conversion.
Lissajous Graphic Display & FFT Viewing: Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal.

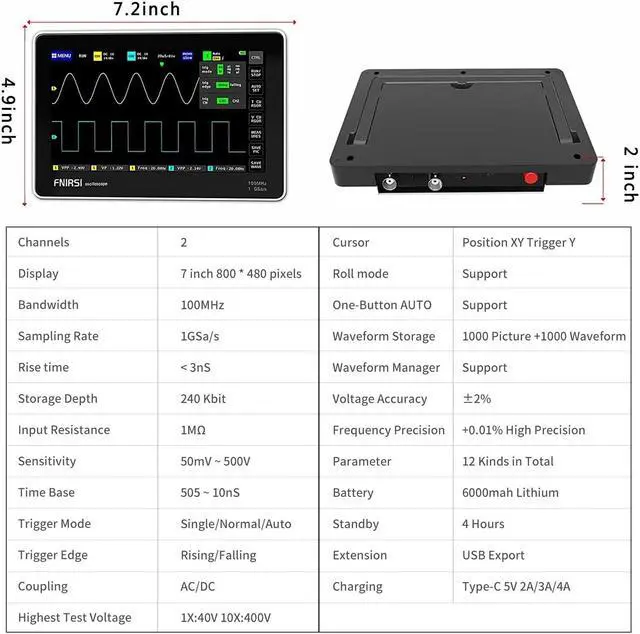

Number of Channel 2
Bandwidth 100MHz
Sample Rate 1GSa / s
Storage Depth 240Kb
Timebase 50S / div~10nS / div
Vertical Sensitivity 50 mV / div~500 V / div
Input Impedance 1M ohm
Trigger Modes Auto / Normal / Single
Trigger Types Rising Edge / Falling edge
Coupling DC / AC
Highest Test Voltage 1X: 40V / 10X: 400V
Cursor Position XY / Trigger Y
Waveform Manager Support (1000 pic +1000 waveform)
Frequency Precision ± 0.01 %
USB Export Support
Power Supply 6000 mAh lithium battery
High Definition Full Screen
7 inch color TFT- LCD full Capacitive Touch Screen display with 800 * 480 resolution.

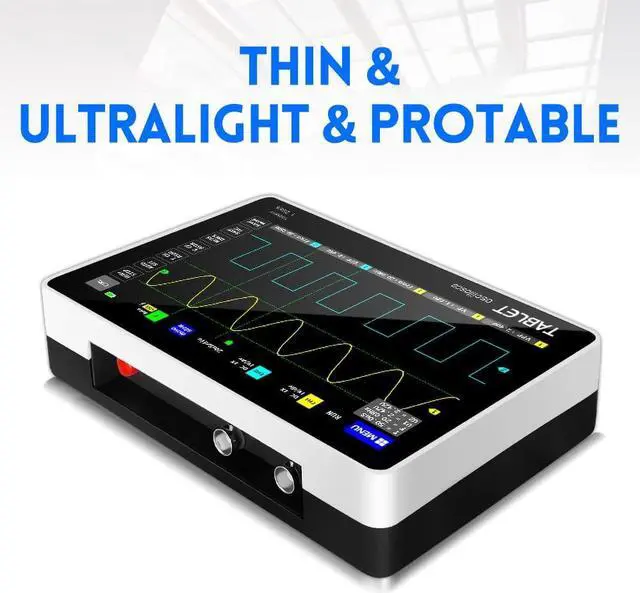

Thinner & Ultra-light
7.08 * 4.72 * 1.57 in thinner size and 600g super light weight design, easy to carry.
Professional Designed
2 channels, 100MHz analog bandwidth @ 1 GSa/s Real-time sampling, 240kbit Sample Memory Depth
Powerful Waveform Manager & USB Export
One-key screenshot and saving design, built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data, and support UBS export.
Lissajous Figures Display & FFT Analysis Function
Lissajous figures display function can be used to determine the amplitude, frequency, and phase contrast of 2 groups of signals;
FFT analysis function can analyze the harmonic components of the signal.
Super-long Stand By Time
Built-in 6000mah high-quality lithium battery, which can last for 4 hours on a full charge.
Lissajous Graphic Display & FFT Viewing: Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal.
Number of Channel 2
Bandwidth 100MHz
Sample Rate 1GSa / s
Storage Depth 240Kb
Timebase 50S / div~10nS / div
Vertical Sensitivity 50 mV / div~500 V / div
Input Impedance 1M ohm
Trigger Modes Auto / Normal / Single
Trigger Types Rising Edge / Falling edge
Coupling DC / AC
Highest Test Voltage 1X: 40V / 10X: 400V
Cursor Position XY / Trigger Y
Waveform Manager Support (1000 pic +1000 waveform)
Frequency Precision ± 0.01 %
USB Export Support
Power Supply 6000 mAh lithium battery
High Definition Full Screen
7 inch color TFT- LCD full Capacitive Touch Screen display with 800 * 480 resolution.
Thinner & Ultra-light
7.08 * 4.72 * 1.57 in thinner size and 600g super light weight design, easy to carry.
Professional Designed
2 channels, 100MHz analog bandwidth @ 1 GSa/s Real-time sampling, 240kbit Sample Memory Depth
Powerful Waveform Manager & USB Export
One-key screenshot and saving design, built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data, and support UBS export.
Lissajous Figures Display & FFT Analysis Function
Lissajous figures display function can be used to determine the amplitude, frequency, and phase contrast of 2 groups of signals;
FFT analysis function can analyze the harmonic components of the signal.
Super-long Stand By Time
Built-in 6000mah high-quality lithium battery, which can last for 4 hours on a full charge.
