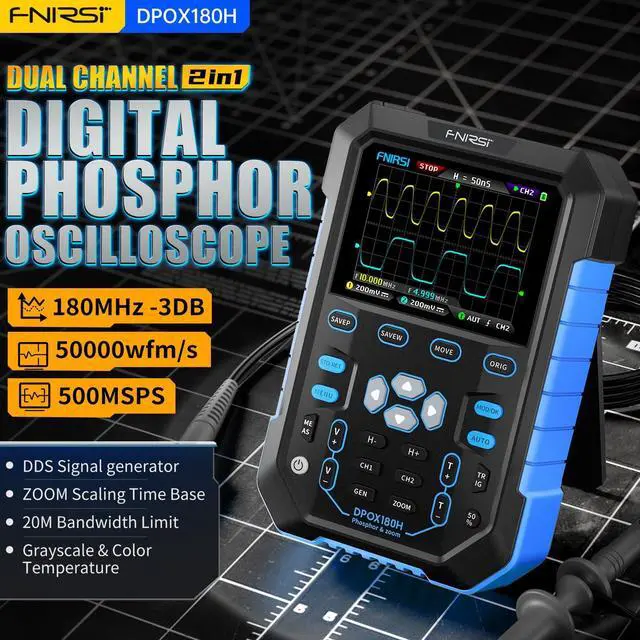

2 Channels Digital Phosphor Oscilloscope, 2 in 1 Handheld Oscilloscope DDS Signal Generator, 180Mhz Bandwidth 500MSa/s Sampling Rate, Innovative Digital Trigger System

Unique and
Innovative Features: Adjustable automatic bandwidth limit, according to the current time base range, automatically adjust the bandwidth limit (the function can be turned on or off) for the analysis and measurement of signals containing noise. Adaptive adjustable high-frequency rejection, according to the waveform frequency characteristics of the trigger to suppress high-frequency components, regardless of the signal frequency or noise size can be stable trigger, suitable for analysis and measurement of large noise signals.
Function Signal Generator: Built-in 20M DDS function signal generator, with 14 kinds of standard function signals, output amplitude fixed at 1VPP, sine wave frequency of 20MHz, other waveform frequency of 10MHz, adjustable frequency step of 1Hz. Contains the original chopping technology, intercept part of the oscilloscope measurement of complex signals as the output signal of the signal generator, than the traditional signal generator hand-drawn signal more objective and realistic.
Easily Measuring: Equipped with high-efficiency one-button AUTO, adaptive 25%, 50%, 75% trigger, can display the measured waveform without cumbersome adjustment. FFT spectrum display.
Storage Function: One click to save screenshot or waveform, with its own data storage, you can view the saved screenshot file and waveform data. Data can be exported via USB connection to a computer.

Full Featured & Easy to Use
One Button Automatic Adjustment
Built-in efficient control algorithm, automatic recognition of signal characteristics

Manual Cursor Measurement
Manual reading of signal amplitude or period to calculate peak and frequency

Complete Trigger Function
Three trigger modes: automatic, single and conventional

20M DDS function signal generator
With 14 kinds of standard function signals, the output amplitude is fixed at 1VPP

Accurate Data & Real-time Monitoring
Ultra High Sensitivity
The minimum measurement range is 5mV

Ultra High Waveform Refresh Rate
Up to 50000wfm/s waveform refresh rate

Large Time Base Scrolling Mode
Real-time monitoring of level changes

Original Chopping Output
Intercept part or whole part of the signal measured by the oscilloscope as the output signal of the signal generator

Original Technology to Reduce Noise Interference

Ultra High Signal-to-Noise Ratio
Improve the signal-to-noise ratio through a unique front-end design, making the waveform clearer

Original Adjustable Automatic Bandwidth Limiting
Bandwidth limited based on the current time base for use with noisy signal measurements and analysis

Original Adaptive Adjustable High Frequency Suppression
Trigger and suppress high-frequency components according to the waveform frequency characteristics, which is suitable for the measurement and analysis of large noise signals

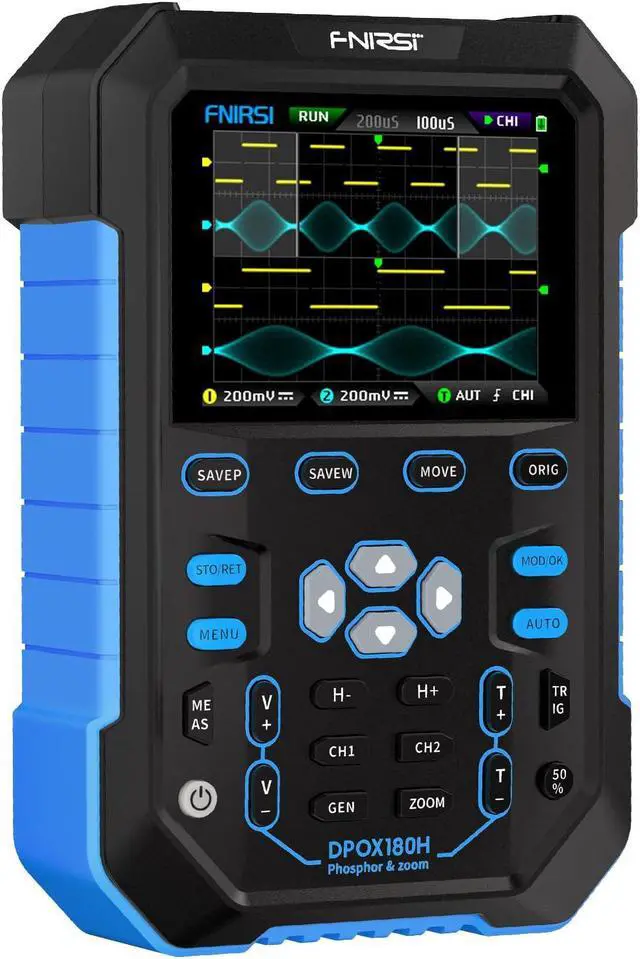

FNIRSI Handheld Digital Phosphor Oscilloscope
Digital Phosphor Oscilloscope
Overcome the traditional oscilloscope waveform burr sense, more clearly see the signal distribution characteristics

Gray and color temperature display
With the support of digital fluorescence system, the color display of waveform can be divided into grayscale and color temperature

Digital Phosphor X-Y Mode Display
Compare the amplitude, frequency, and phase of two sets of signals

Waveform Viewing & Data Storage
IPS Full Vision HD Display
2.8 -inch IPS HD display, combined with digital phosphor technology, the waveform characteristics can be seen at a glance

One-key Waveform/Screenshot Save
Save screen display content or original waveform data to local disk

Powerful Data Browser
You can check the WAV data files, BMP image files and clipping files in the local disk at any time

USB Data Export
Connect to the computer via a USB data cable to view the BMP image files saved in the oscilloscope disk
