$379.99
Meet Your Seller

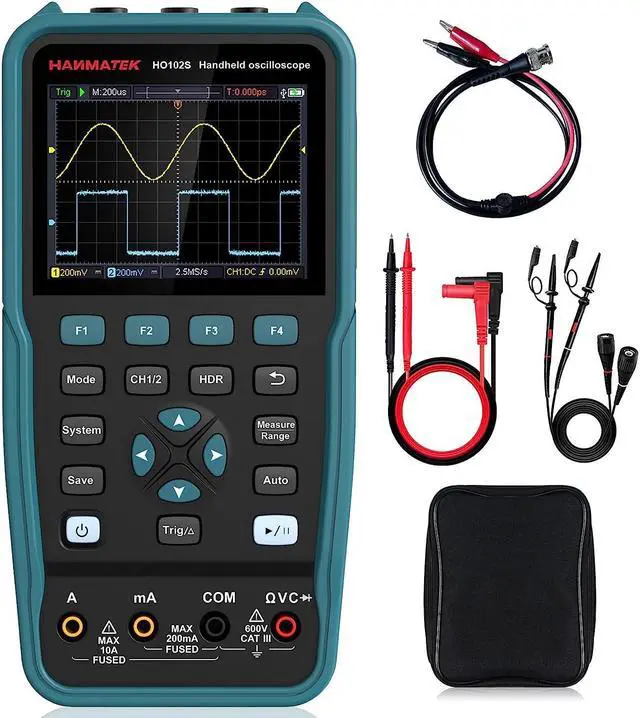

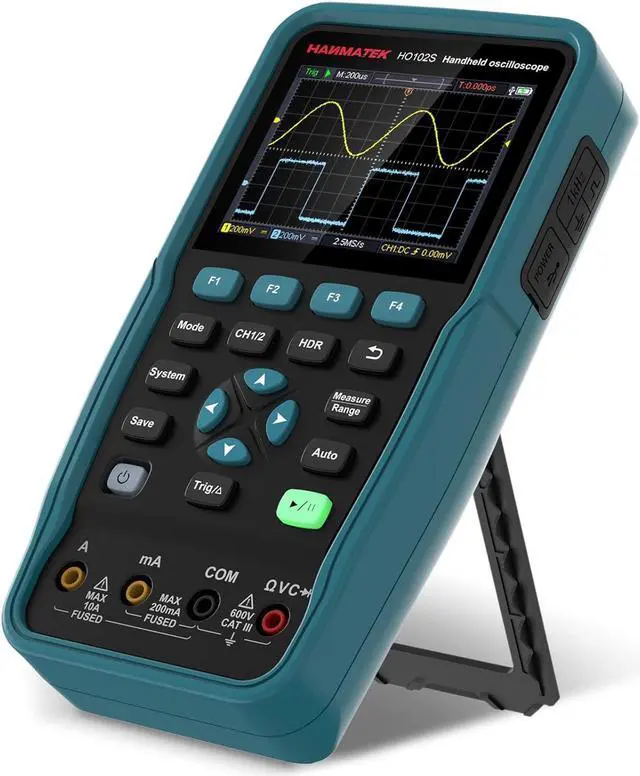

3 in 1 Handheld Oscilloscope Multimeter 100Mhz Waveform Generator Oscilloscope with 2 Channels 3.5"TFT, HO102S Professional oscilloscope Multimeter with Memory Function
- Automotive multimeter tester, oscilloscope, DMM and waveform generator in one. Upgraded oscilloscope 2 channel bandwidth up to 100MHZ, high signal fidelity, excellent performance. it uses a powerful and intelligent chip to ensure the accuracy of acquisition and measurement
- High refresh, deep storage, waveform refresh rate up to 10,000wfms/s, 8K storage depth, easily capture abnormal events, low probability events. Fast and accurate measurement results are provided, and multiple sets of waveforms can be saved. Four kinds of automatic measurement functions, XY function, one-touch automatic setting function, etc., easy to test and debug
- Support 7 kinds of automatic measurements, frequency, period, amplitude, maximum, minimum, average, peak-to-peak value. Fast auto-calibration function, up to 6 automatic measurement values can be displayed on the screen at the same time. It can also connect the computer, the computer can read stored images and CSV waveforms for further analysis or sharing
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

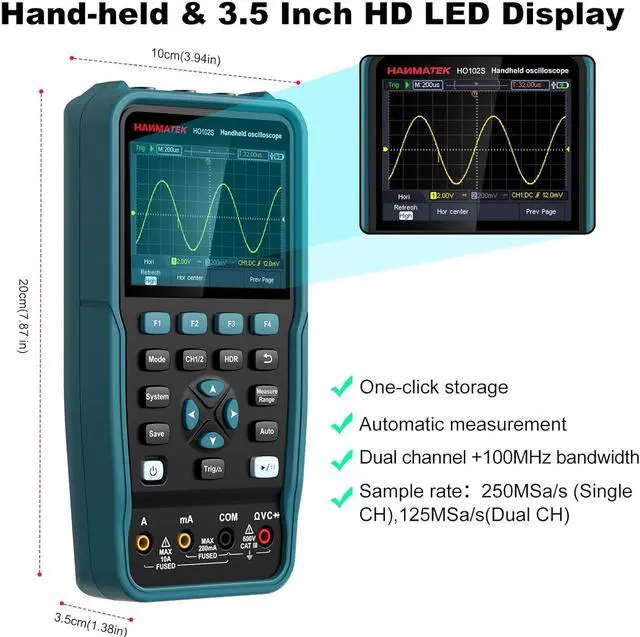

The 3.5 inch color screen can more clearly see the waveform and data changes. The design is compact and fits the palm, easy one-handed operation, and you can hold the device with your left hand and reach all buttons with your thumb. With a built-in rechargeable battery and USB Type-C port, it can be used continuously for 6 hours on a full charge. Meet any venue, it can quickly check the site.
Key Features

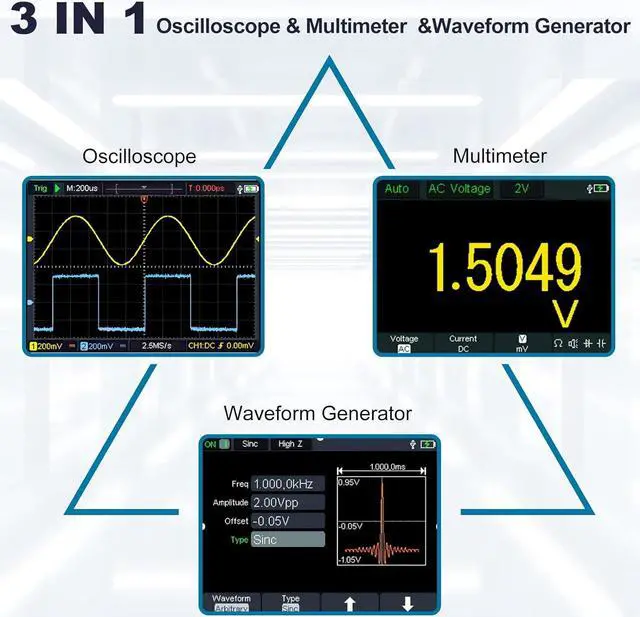

3 in 1 automotive oscilloscope, multimeter and Generator;
100Mhz dual channel;
3.5 inch HD display;
250Msa/s;
USB rechargeable battery;
Eight languages can be set: Japanese, English, Chinese, French, German, Spanish, Italian, and Russian;
Double sampling mode
Peak sampling can be used to detect interference glitches and reduce the possibility of aliasing;
Signal generator
Frequency resolution 0.1H z;
The maximum output amplitude is 5Vpp;
Maximum waveform output power can reach 25Mhz;
14-bit vertical resolution, 125MSa / S high sampling rate + 8K waveform length;
It can output sine waves, square waves, sawtooth waves, pulse waves, and built-in special waveforms.
Multimeter function
20000 reading, 4 1/2 digit true effective value;
Supports voltage, current, resistance, capacitance, continuity, and diode measurements;
Smart chip, faster charging
The LCR features a rechargeable design, high capacity lithium battery and super standby;
Supports data recording analysis and computer host computer convenient for remote control and measurement;
Key Features
3 in 1 automotive oscilloscope, multimeter and Generator;
100Mhz dual channel;
3.5 inch HD display;
250Msa/s;
USB rechargeable battery;
Eight languages can be set: Japanese, English, Chinese, French, German, Spanish, Italian, and Russian;
Double sampling mode
Peak sampling can be used to detect interference glitches and reduce the possibility of aliasing;
Signal generator
Frequency resolution 0.1H z;
The maximum output amplitude is 5Vpp;
Maximum waveform output power can reach 25Mhz;
14-bit vertical resolution, 125MSa / S high sampling rate + 8K waveform length;
It can output sine waves, square waves, sawtooth waves, pulse waves, and built-in special waveforms.
Multimeter function
20000 reading, 4 1/2 digit true effective value;
Supports voltage, current, resistance, capacitance, continuity, and diode measurements;
Smart chip, faster charging
The LCR features a rechargeable design, high capacity lithium battery and super standby;
Supports data recording analysis and computer host computer convenient for remote control and measurement;
