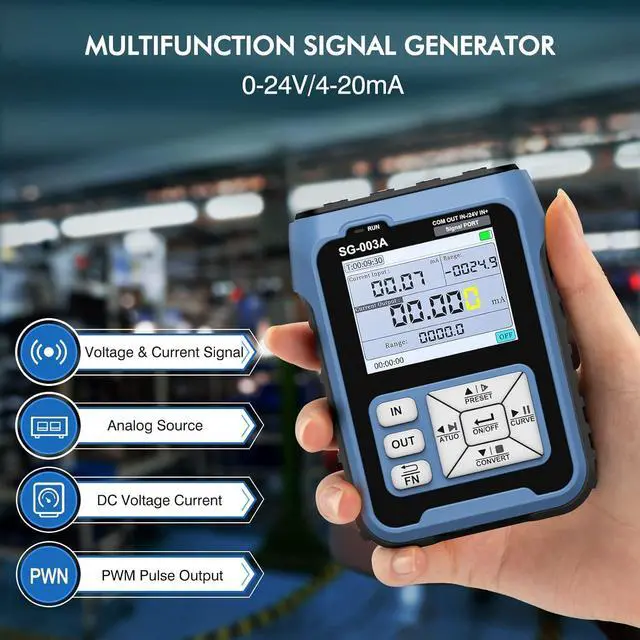

Seesii Upgraded Signal Generator, 4-20mA 0-24V Adjustable Analog Current Voltage Generator Simulator with Real-time Curve, Historical Record, Multiple Signal Programmable Function Generator
- Our SG-003A is a fully functional, practical and cost-effective professional function generator. 4 groups of common signal values can be preset, which is convenient to quickly adjust the output.And support multiple signal switching, 0-24mA Current Signal,0 to 24V Voltage Signal, XMT Passive Current Signal,Hz Pulse Signal and other signal.And the input signal can be converted into an output signal among different physical quantities.
- The changing trend of input and output signals can be displayed by drawing a real-time curve, and the sampling time of the curve can be set. The current-voltage analog simulator can also automatically adjust the display curve within the range of the maximum and minimum values within a certain period of time.
- The current generator has the output function of automatically and continuously changing the size according to the setting parameters, and can choose three modes: monotonous rise, monotonous fall and cycle.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

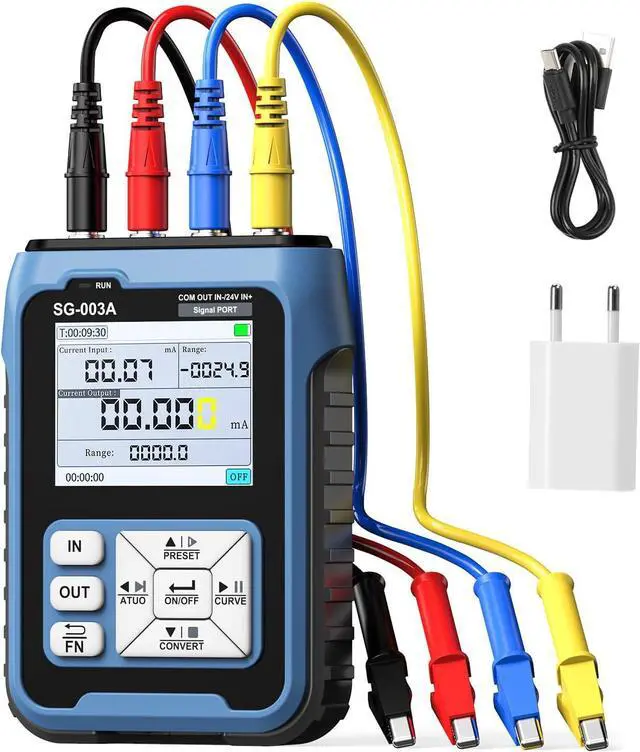

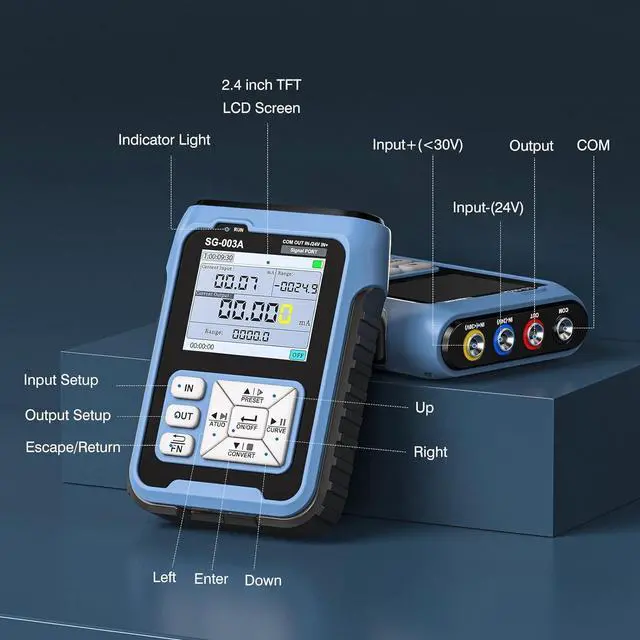

The function generators adopts 4 inner diameters and 4mm wiring ports on the top surface. The Blue port(IN-) is an alternate function and it is also an input- that can be switched to a 24V independent test power supply. Red (OUT) port and black (COM) port form an output port. Yellow(IN+) and Blue(IN-) form the input port. Different color identification allows you to better distinguish input and output ports.
The voltage generator with 2.4 inch high definition screen, high quality materiels, lightweight and portable, durable enough for long term use, with the protective silicone covers on both sides of the instrument, which can protective the product and prolong the service time of it. Built-in 3000mA-H rechargeable battery. It can work continuously for more than 8 hours after fully charged.
The handheld signal generator is mainly used in PLC. panel debugging, device testing, frequency converter, flow valve, servo motors speed regulation, light dimmer, and many other applications.
The voltage generator with 2.4 inch high definition screen, high quality materiels, lightweight and portable, durable enough for long term use, with the protective silicone covers on both sides of the instrument, which can protective the product and prolong the service time of it. Built-in 3000mA-H rechargeable battery. It can work continuously for more than 8 hours after fully charged.
The handheld signal generator is mainly used in PLC. panel debugging, device testing, frequency converter, flow valve, servo motors speed regulation, light dimmer, and many other applications.
