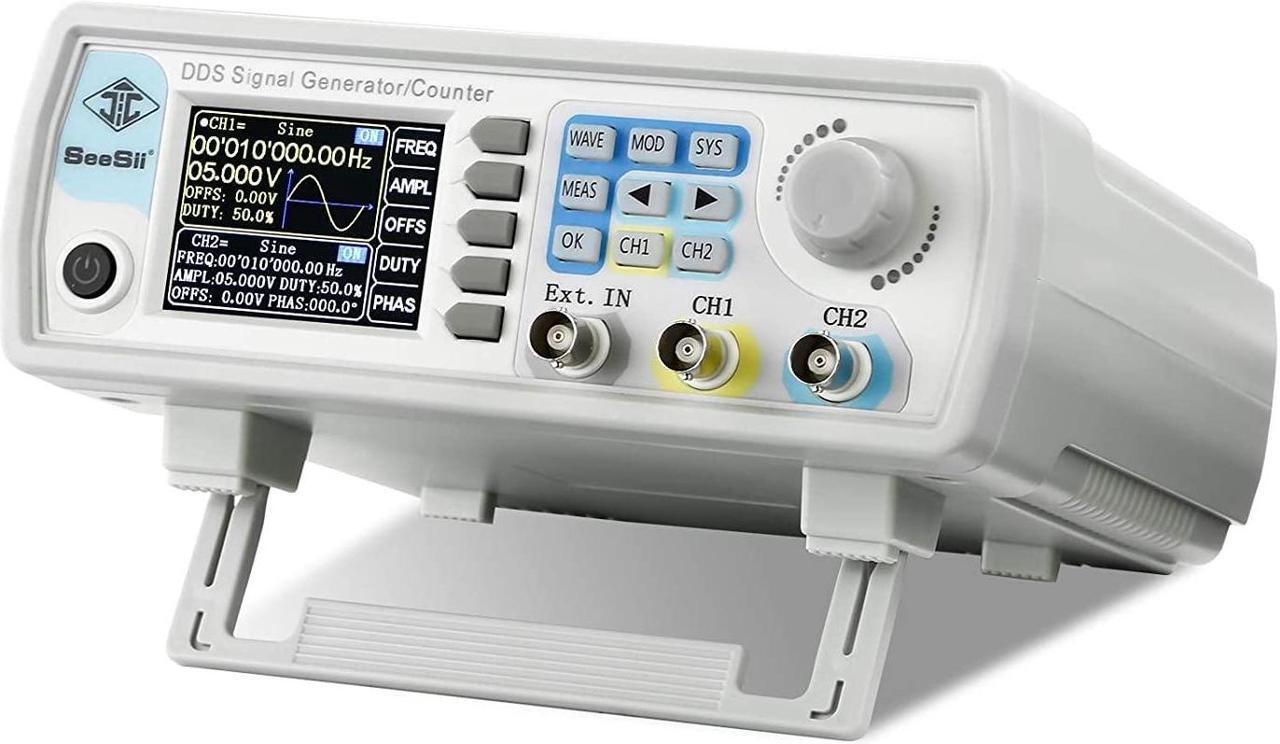

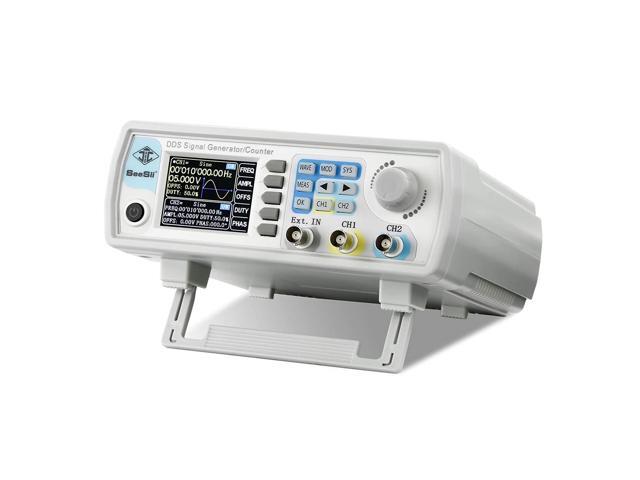

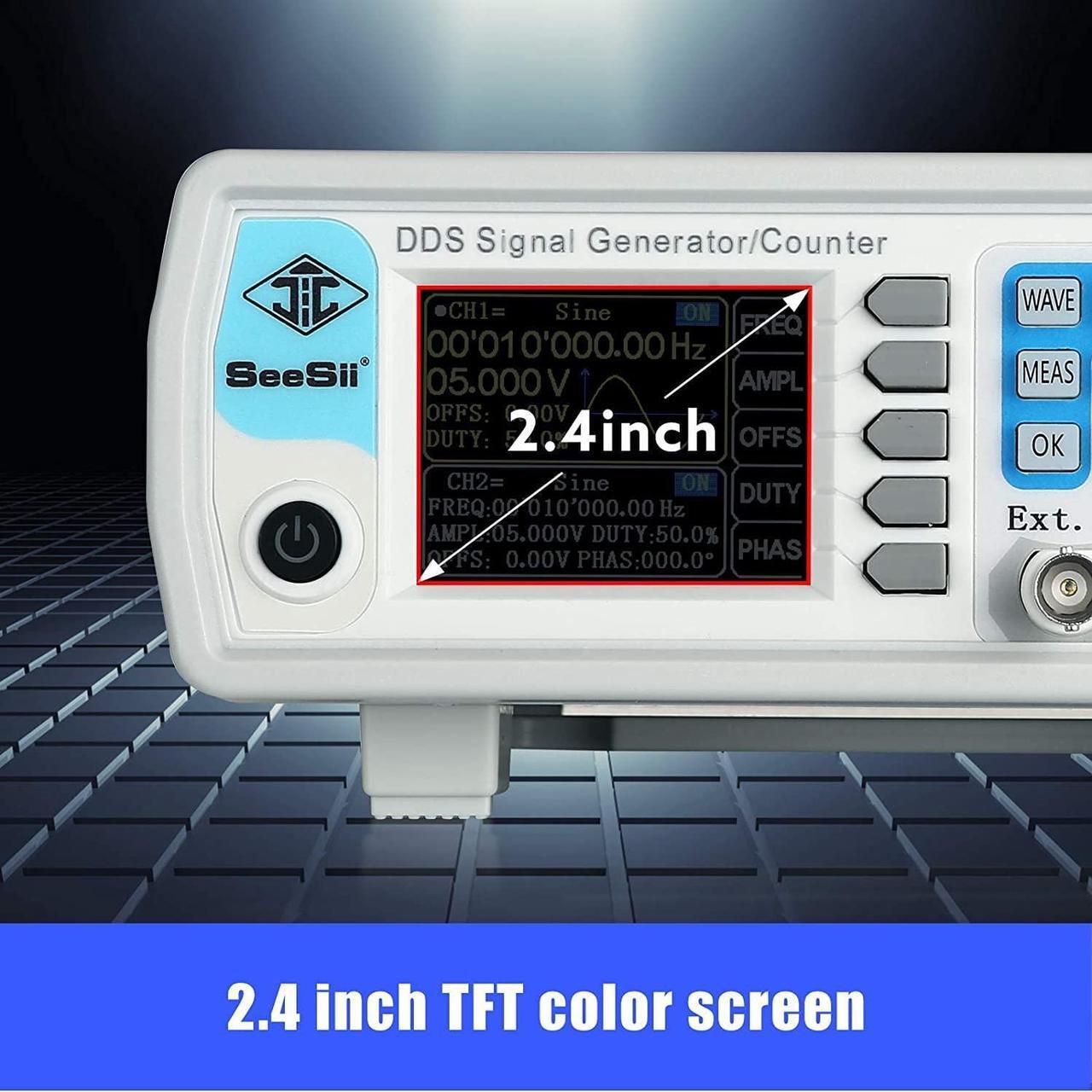

Professional Upgraded 15MHz DDS Signal Generator Counter, 2.4Inch LCD Display High Precision 200MSa/s Dual-Channel Arbitray Waveform FG-615 Function Generator Frequency Meter
- Seesii Dual-channel DDS arbitrary waveform generator adopts large scale FPGA integrated circuit and high speed MCU microprocessor. The internal circuit adopts active crystal oscillator as benchmark. So the signal stability is greatly strengthened.

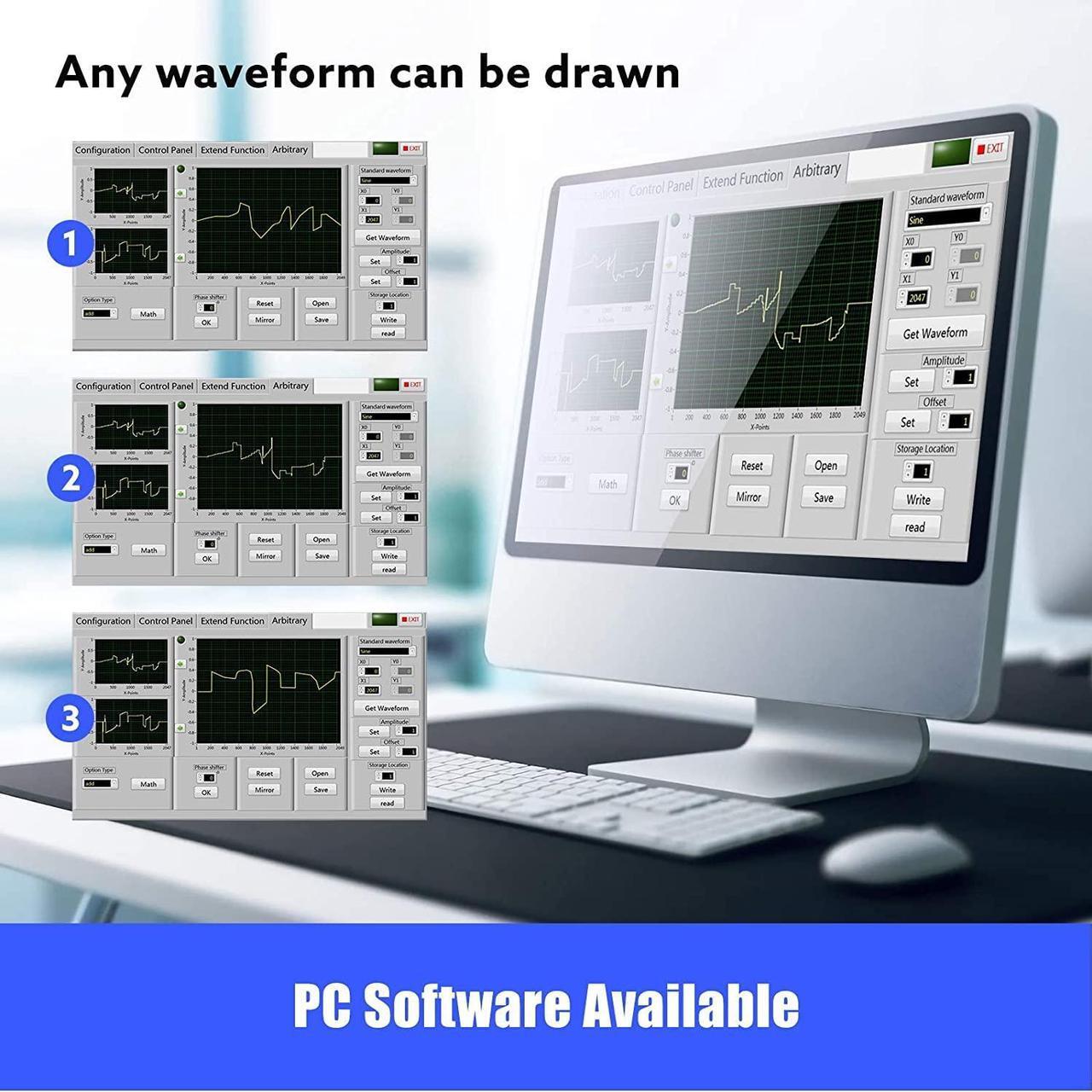

- You can store 99 groups instrument state parameters set by the user, can be called up to Reproduce. Frequency output of Sine wave can be up to 15MHz. 200MSa/s sampling rate. It has 60 positions for saving user-defined waveform. In addition, it has a very good software package that allows you to create your own waves and frequency combinations. After you save them, you can disconnect the unit from the computer and use them for any applications you wish.

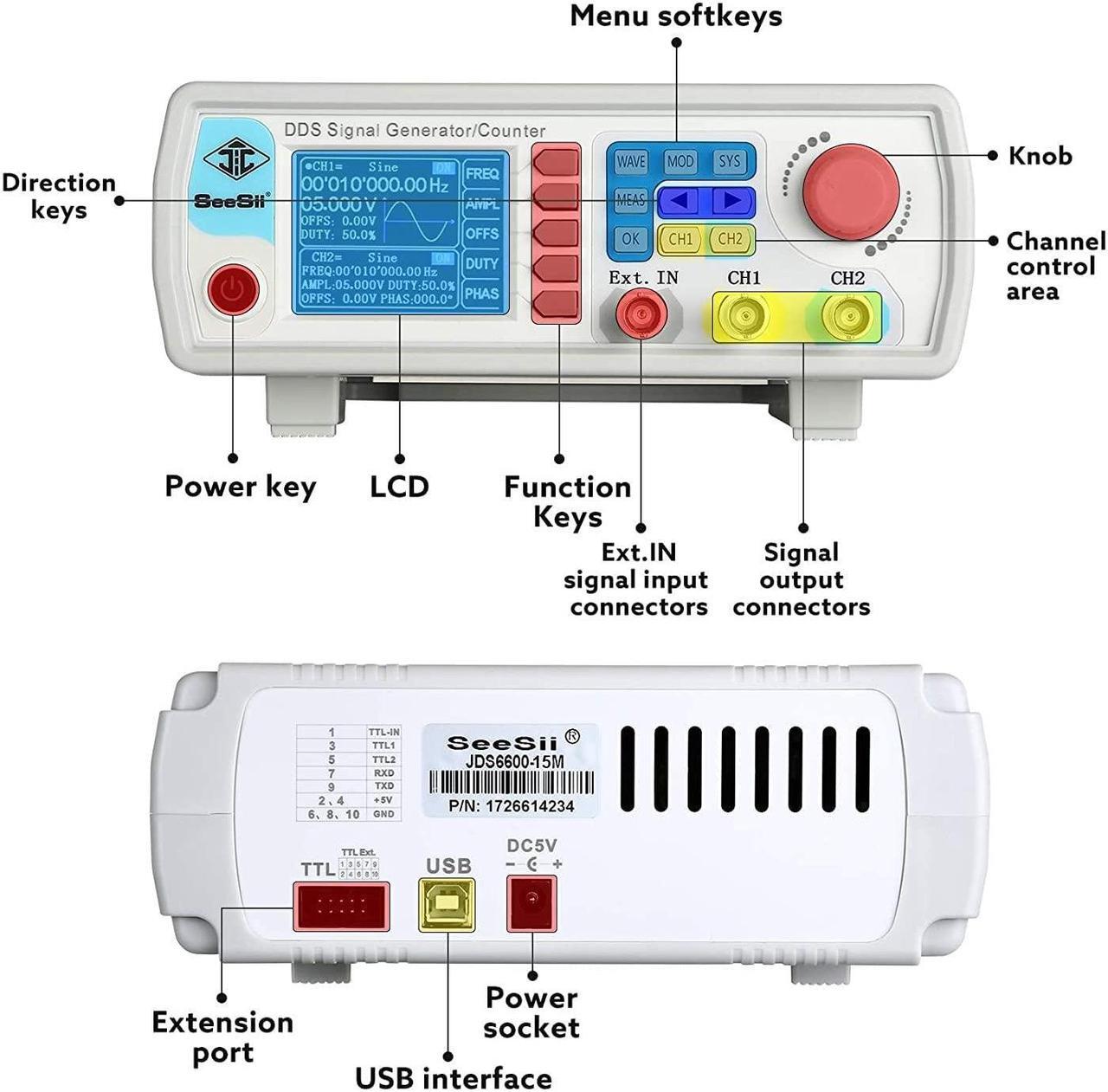

- With intuitive control panel, you can easy to control.This Signal Generator is the ideal instrument for electronic engineering, laboratories, production lines, teaching and scientific research. This is an important tool for both experts and newcomers.
+
+
Overview
Specs
Reviews

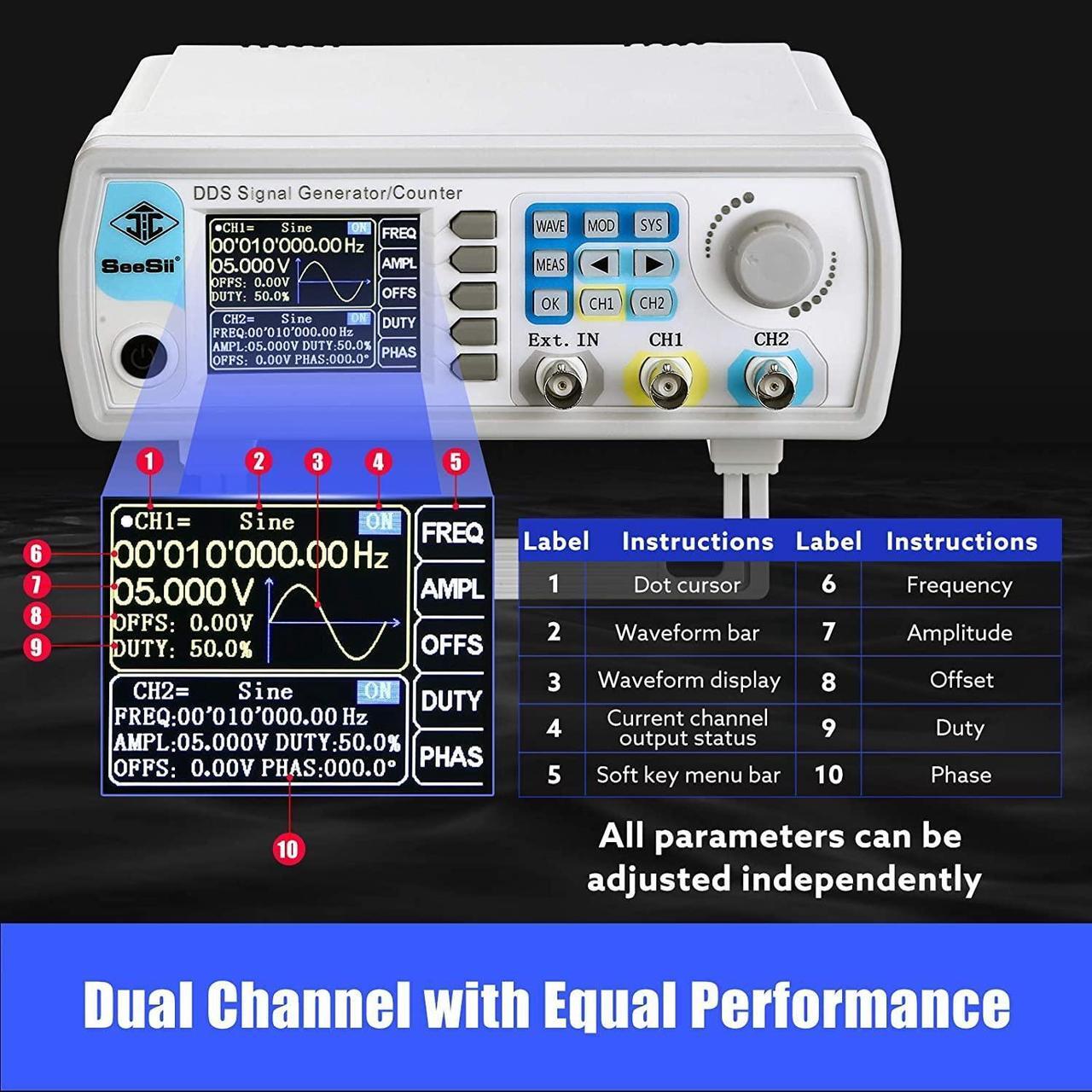

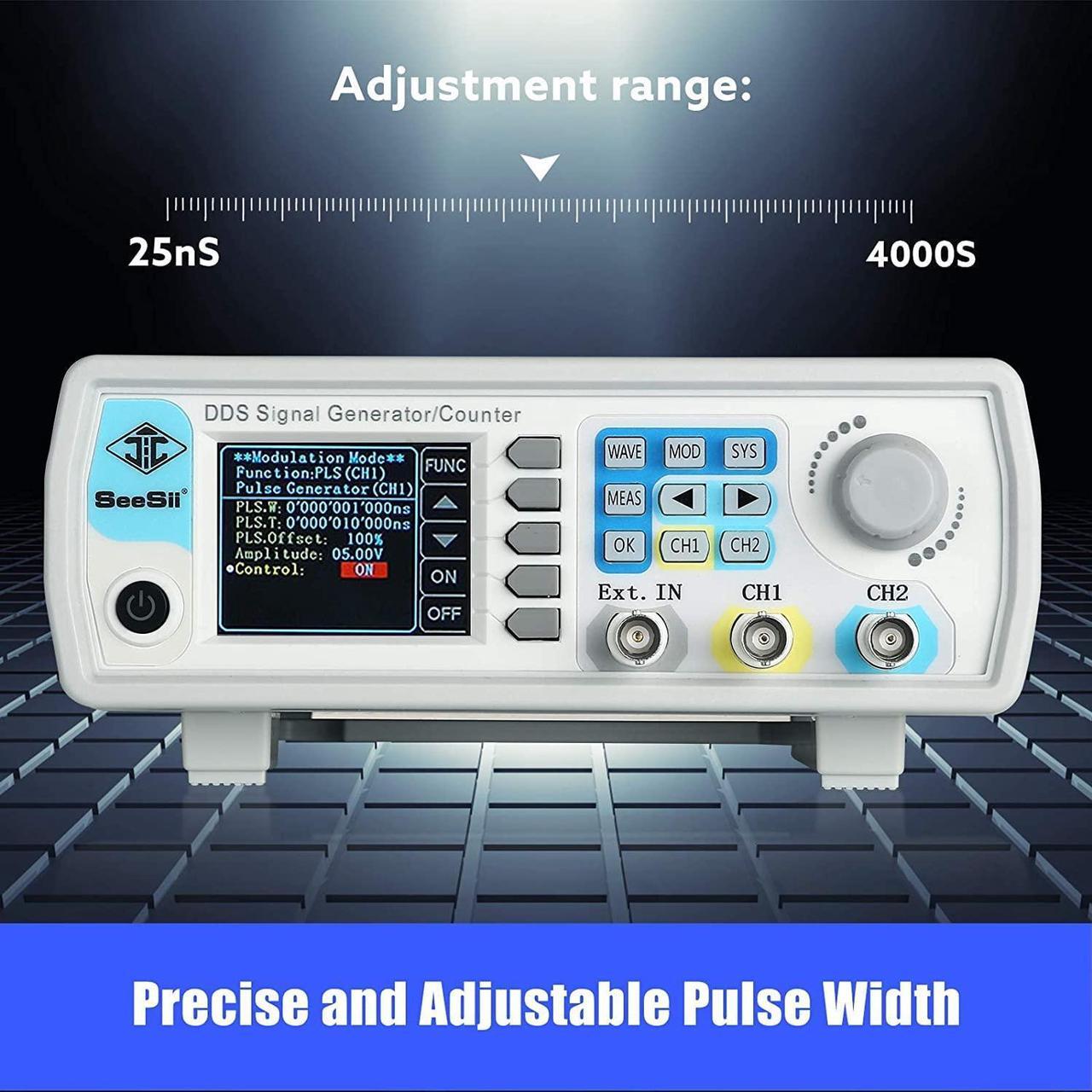

Using Dual-channel DDS signal and TTL electric level output to generate precise, stable, low distortion output signal. includes Sine wave, Square wave, Triangle wave, Sawtooth wave, Pulse wave, white noise, user-defined waveform etc. each channel can be independently set the parameters. Duty cycle of each channel can be adjusted separately. Precision can be 0.1 %.
With linear sweep(Max. up to 999.9 s) and logarithmic frequency sweep functions. Has a frequency measurement, period measurement, positive and negative pulse width measurement and counting function. The settings allow you to enter up to 20volts
With linear sweep(Max. up to 999.9 s) and logarithmic frequency sweep functions. Has a frequency measurement, period measurement, positive and negative pulse width measurement and counting function. The settings allow you to enter up to 20volts
