DC 0-10V 0/4-20mA Current Voltage Signal Generator, Built-in Battery Power Supply Interface Analog Simulator, Adjustable 4-Digit Display, for PLC, Panel Debugging, Device Testing

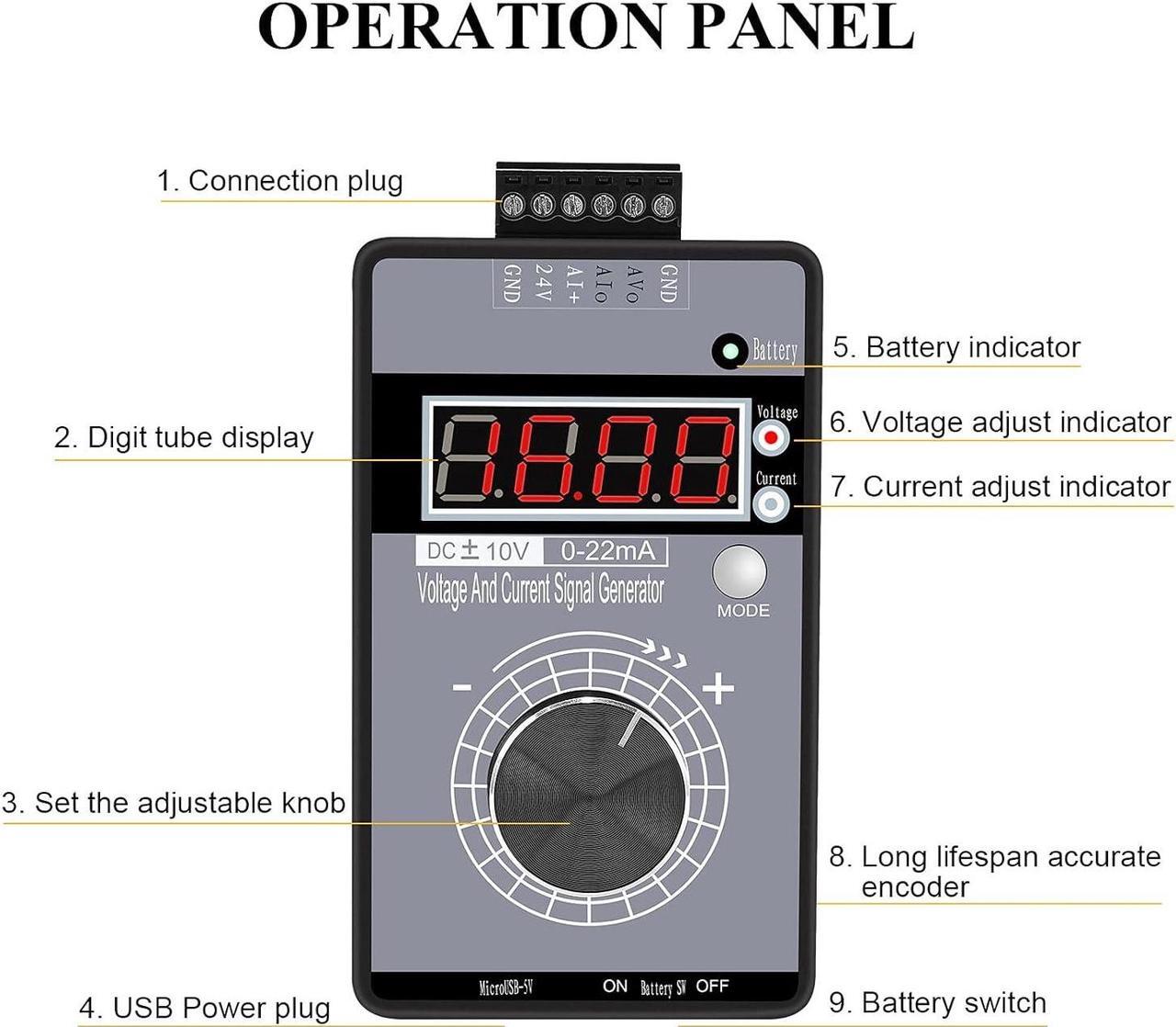

- Voltage Output: -10V~+10V, precision is 0.01V, current output: 0-22mA, precision is 0.01mA, rotate the encoder knob to adjust output voltage and current, switchable and adjustable, can be calibrated. Encoder knob rotate one circle has 20 pulses.

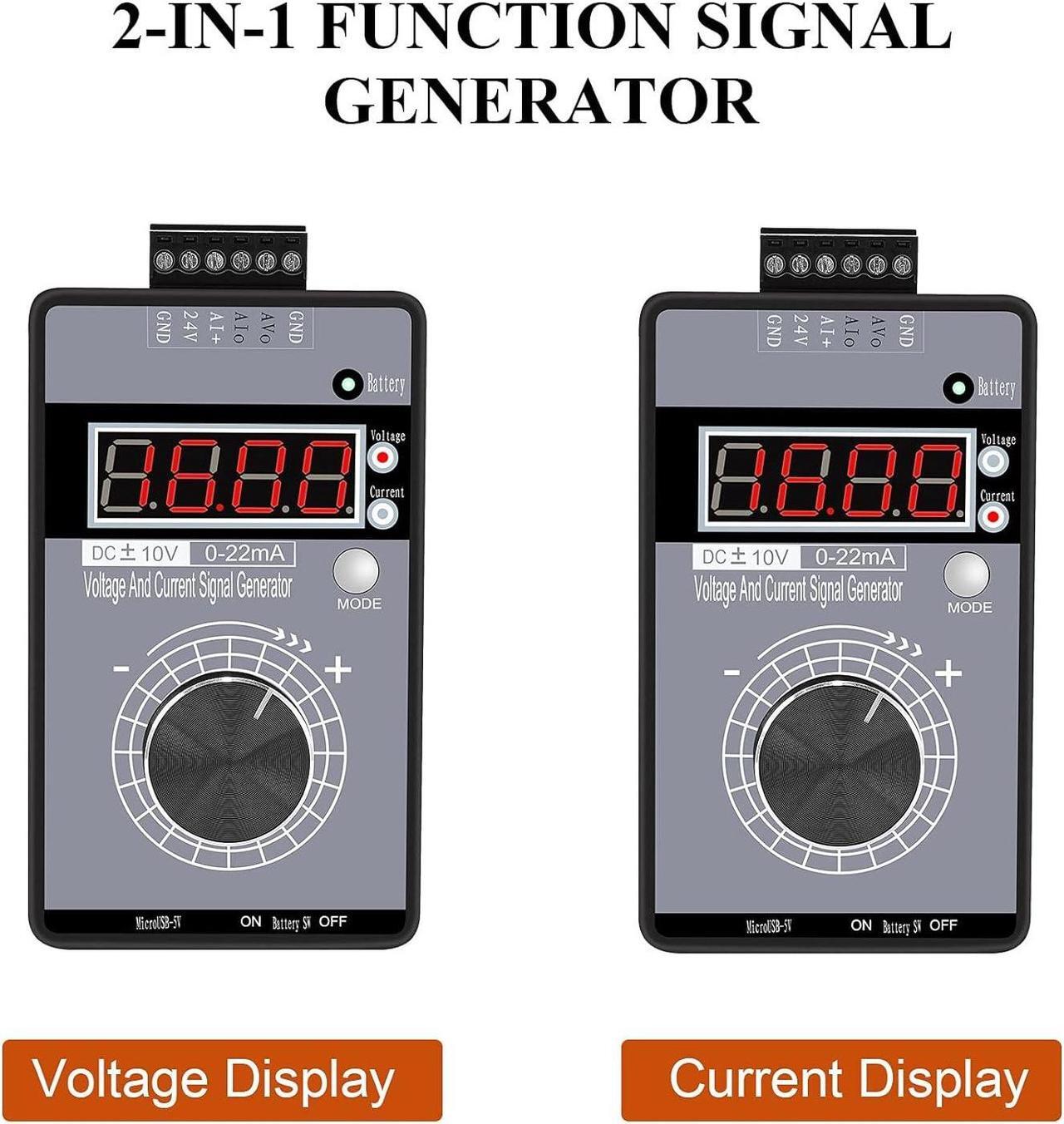

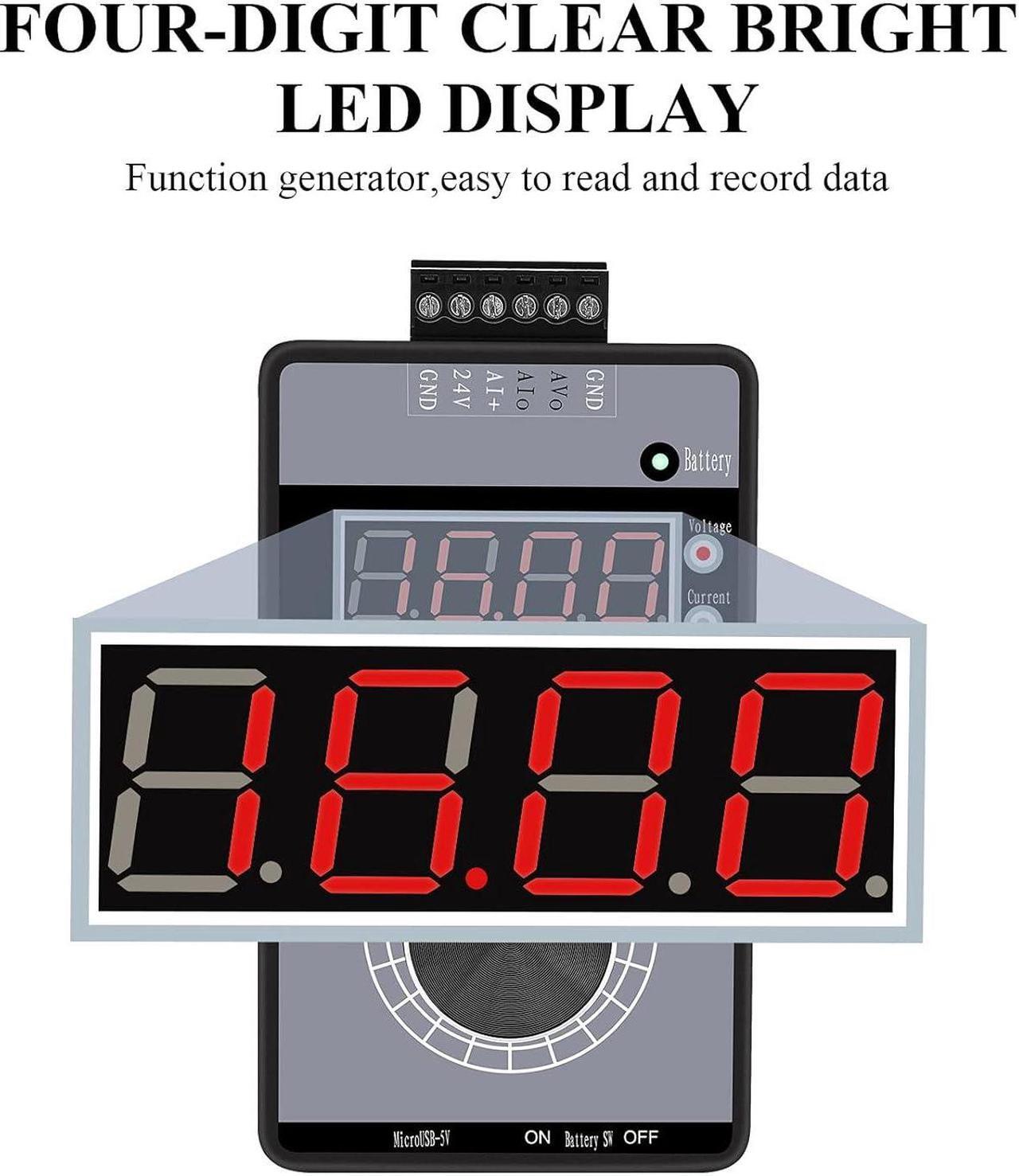

- With 4 different types of digit display, two decimal points, you can press "Mode" button to switch the display mode between voltage and current, you can also follow the instructions to switch 0-100 percent or 0-50HZ display.

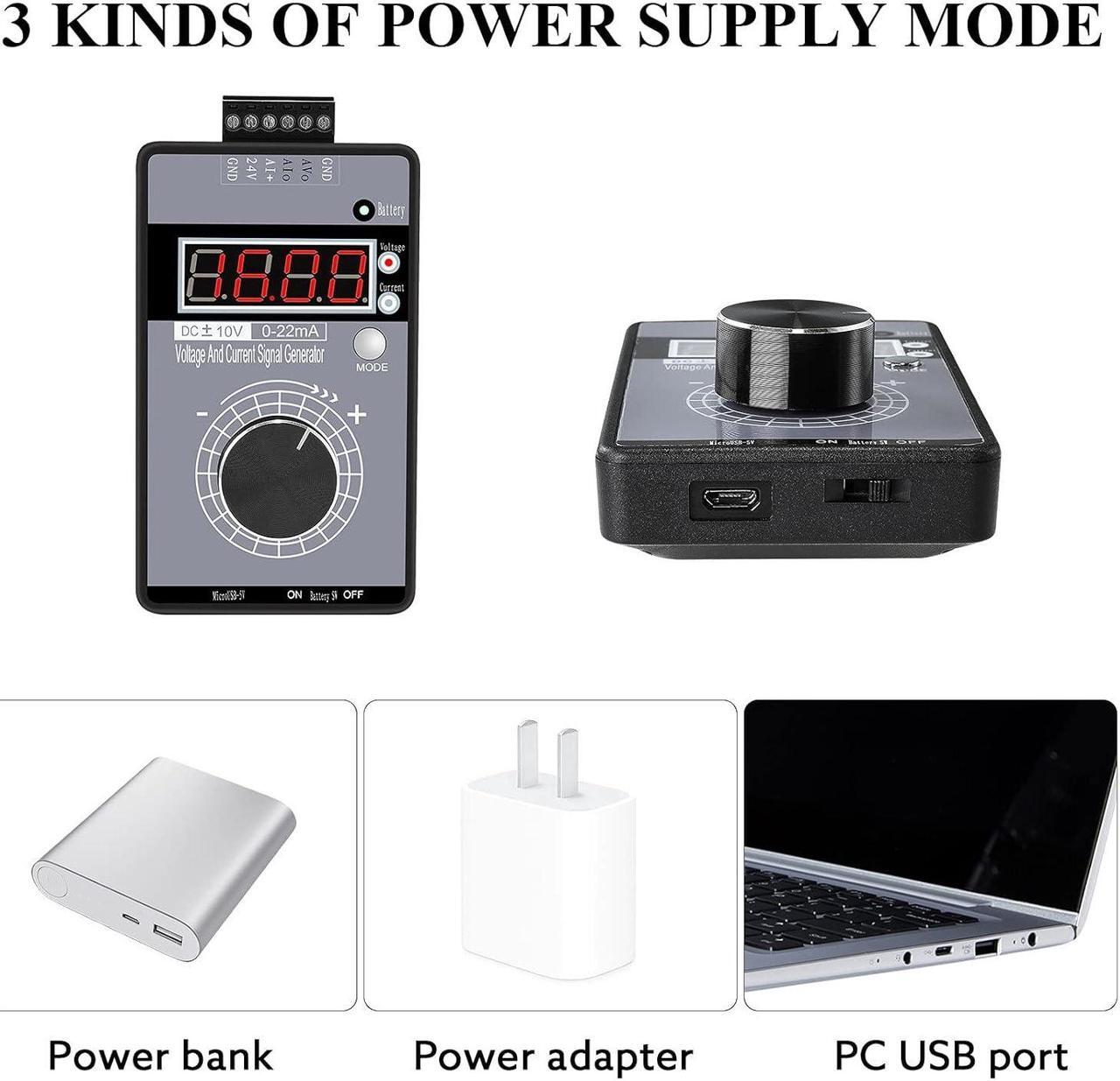

- With 1000mAh 3.7V built-in rechargeable battery embedded inside (charged via micro USB port), it can be powered via various ways, micro USB-5V, external power DC 15-30V, each can make the signal generator to work.
- It can be used for PLC and panel debugging, device testing, frequency converter, flow valve, servo motors speed regulation, light dimmer and ect. With small size design, it is easy and convenient for you to carry it.
+
+
Overview
Specs
Reviews
Output range: passive or active 0-22mA, -10~+10V, voltage output can be exactly 0.00V; output range and precision are programmable and adjustable. Output is with short circuit protection, power supply with reverse connection protection, which is safe for you to use. User can set 9 x fast signal output points, more convenient to do debugging.
