$89.99
Meet Your Seller
USB Tester 4-24V 6.5A LCD USB A&C Voltage Current Power Display Multimeter with App Software, Fast Charge Detection Trigger, PD2.0/PD3.0,QC2.0/QC3.0, CNC Metal Shell
- Color Screen USB Tester
- Multifunction USB Digital Tester
- Fast Charge Protocol Trigger Detection
- Parameter Detection and Recording
- Other detection functions
- Widely Use
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

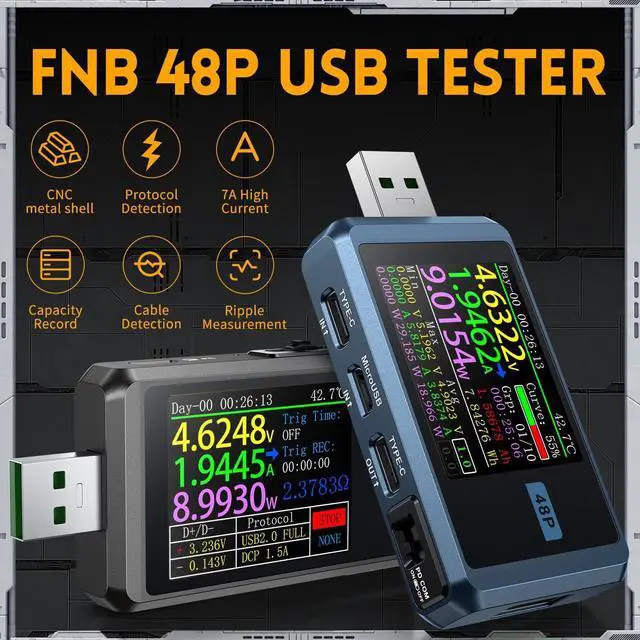

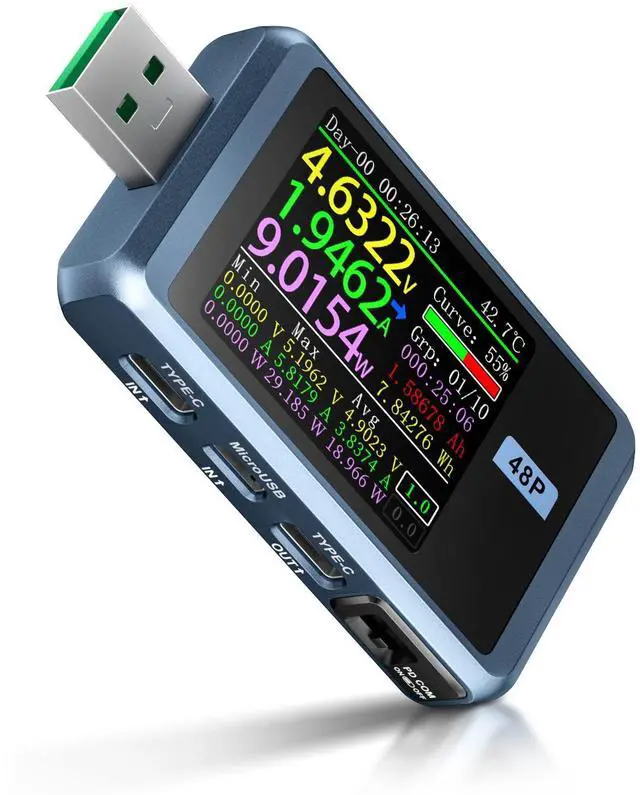

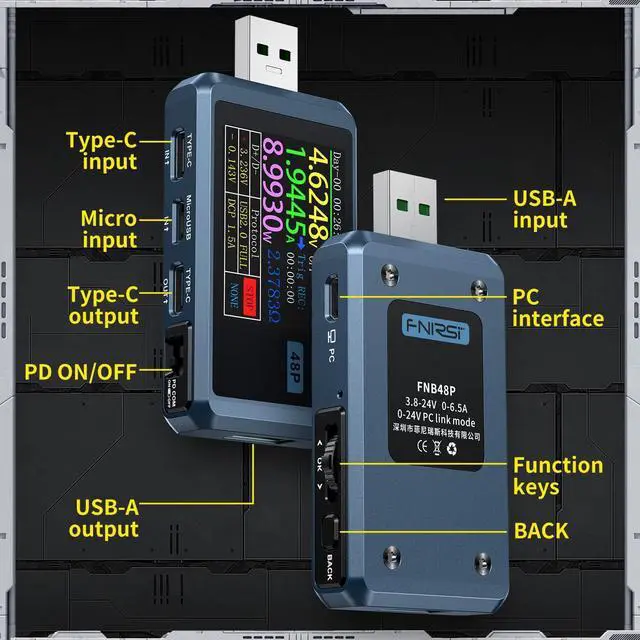

- Color Screen USB TesterFNIRSI FNB48P USB tester has a 1.77-inch full-color ultra-wide viewing angle TFT LCD display and APP software, integrated USB-A, Micro-USB, Type-C interface. Gravity sensor, automatically switch the display direction

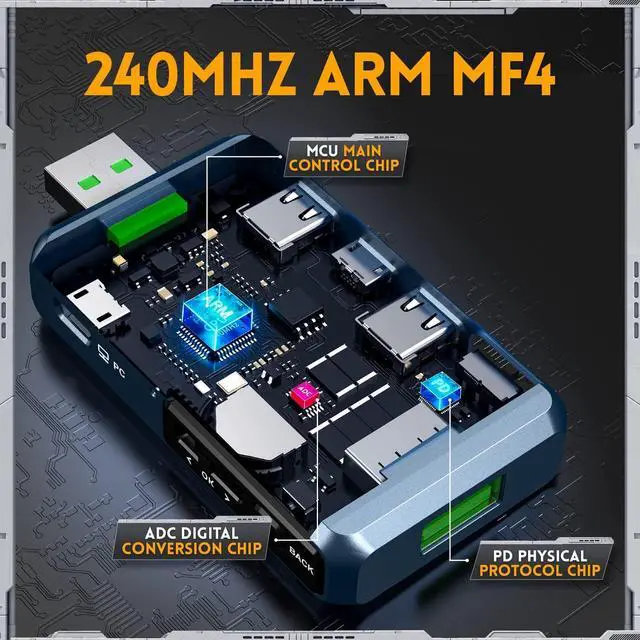

- Multifunction USB Digital TesterFNB48P uses external 16-bit ADC, PD protocol physical chip. It can monitor the voltage, current, power, resistance, capacity, temperature, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers
- Fast Charge Protocol Trigger DetectionFNB48P supports trigger detection of various fast charging protocols, QC2.0/QC3.0 trigger, FCP/SCP trigger, AFC trigger, PD2.0/3.0 trigger, VOOC/WARP trigger, Super VOOC 1.0/2.0 trigger

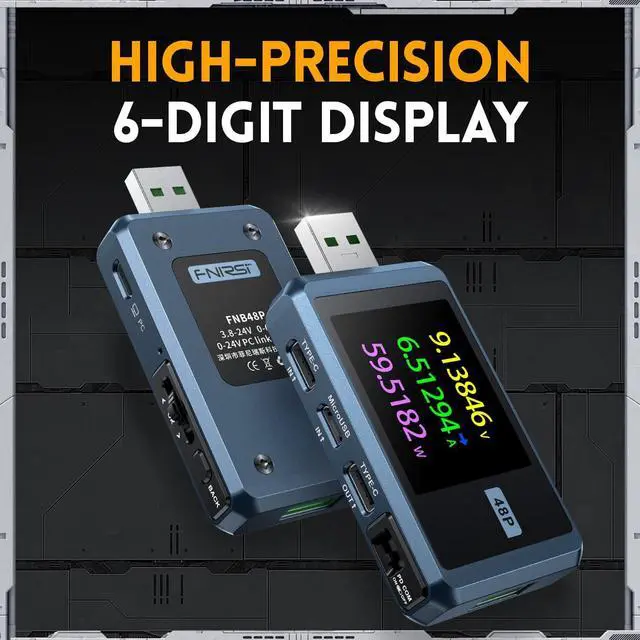

- Parameter Detection and RecordingSix-digit display of voltage, current and power, the resolution is 0.00001 (V/A/W). 10 sets of switchable capacity, power and time statistics. 1 set of voltage and current curve records
- Other detection functionsThe internal resistance measurement of the wire by the differential pressure method. E-Marker Cable chip reading. DASH Cable data reading. Record of startup time. Onboard temperature measurement. PD monitor. Analog DASH cable
- Widely UseIt can be used to measure the power supply or power consumption such as USB interfaces, mobile phone chargers, and U disks.Support low waveform drawing, 2sps->100sps sampling rate. Support high ripple drawing up to 3.2M sps sampling rate
